Product Showcase

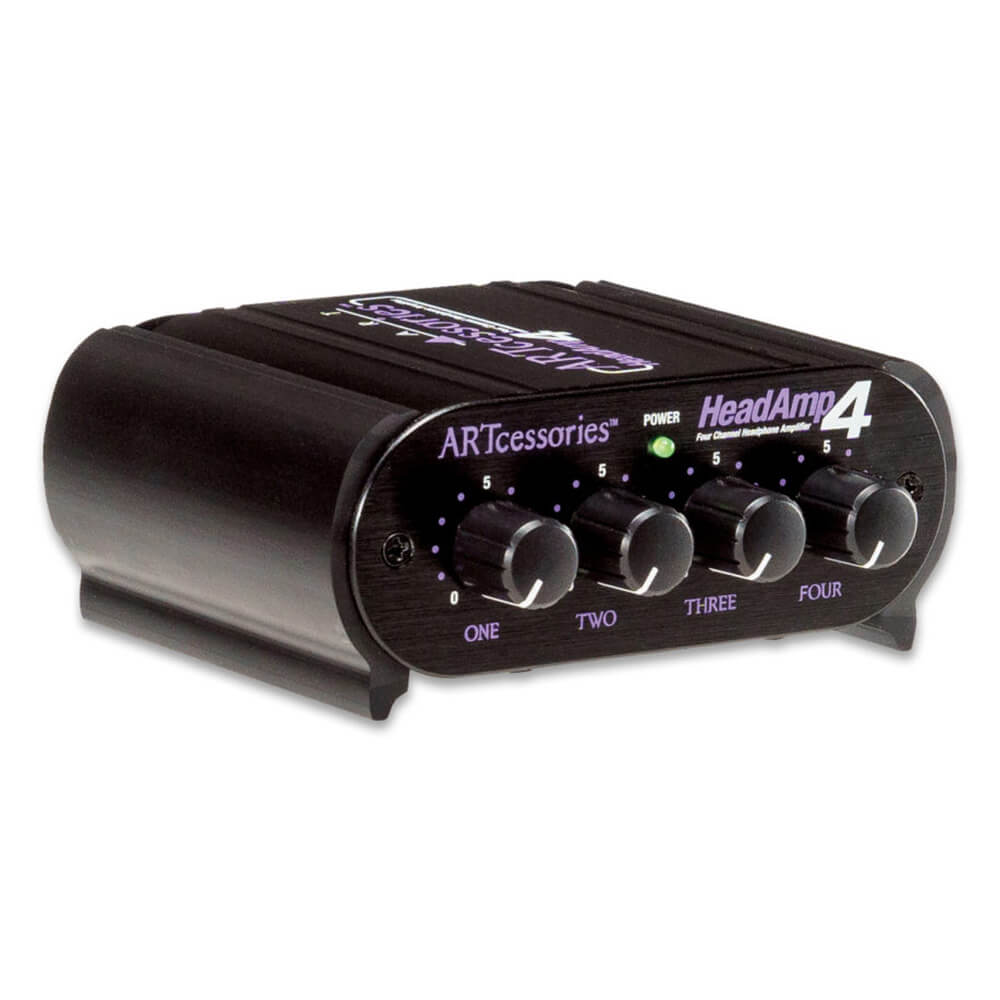

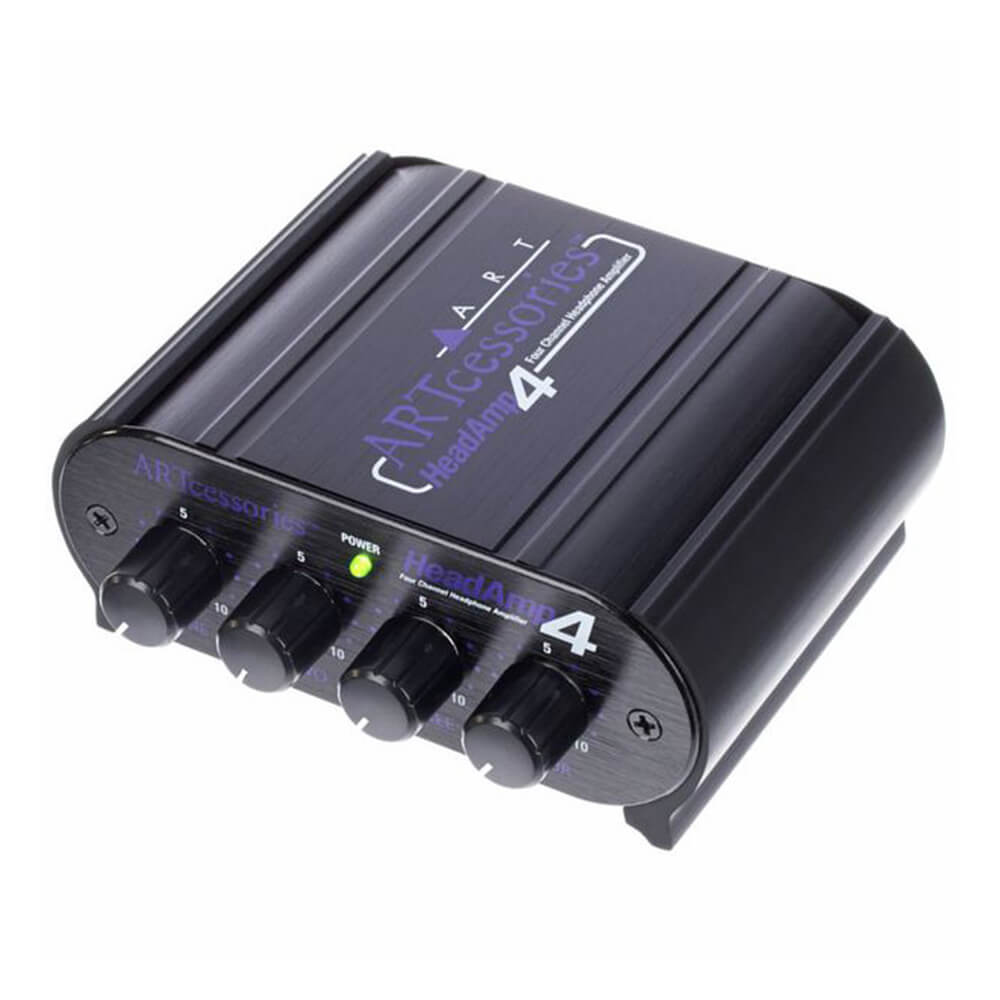

ART HEADAMP 4PRO Five Channel Headphone Amplifier with Talkback
Original price was: ₹10,554.00.₹10,000.00Current price is: ₹10,000.00.
|
Category |
Specification |
|---|---|
|
Type |
Stereo headphone amp (4 channels) |
|

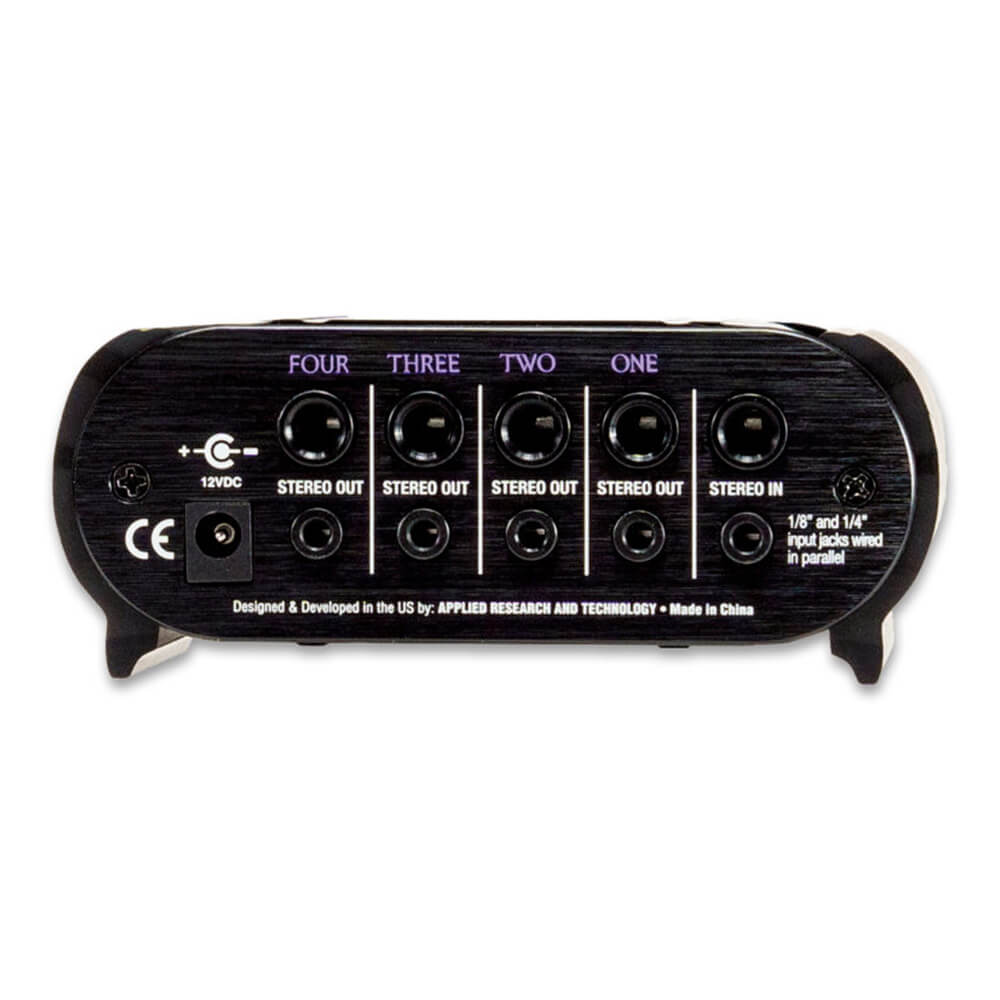

Analog Inputs |
1× ¼″ TRS, 1× ⅛″ TRS (parallel wired) |
|
Headphone Outputs |
4× ¼″ TRS + 4× ⅛″ TRS |
|
Max Input Level |
+14 dBV |
|
Input Impedance |
90.9 kΩ |
|
Max Gain |
+20 dB |
|
Max Output Level |
+14 dBu |
|
Output Impedance |
47 Ω per output (others list ≈51 Ω) |
|
Frequency Response |
20 Hz – 20 kHz |
|
SNR |
>90 dB (ref 0 dBu) |
|
THD |
<0.01% |
|
IMD (SMPTE) |
0.01% |
|
Power Supply |
12 V DC adapter included |
|
Dimensions (H×W×D) |
47 × 117 × 104 mm (1.85″ × 4.6″ × 4.1″) |
|
Weight |
0.61 kg (1.3 lb) |
|
LED Indicators |
Power-on LED |
|
Chassis |
Custom extruded metal, stackable |
|
Warranty |
3 years (manufacturer) |
Each studio needs one
Most home recordings include one to four individuals, and any or all of them will need headphone monitoring. The monitor amplifier would be linked to the tape deck’s headphone output or a mixer output, allowing the performers to hear themselves and one another. Of course, the same program may be used for band rehearsals as well as home entertainment. HeadAmp 4 offers amplification and individual volume control for up to four headsets. It may be powered by either line-level or headphone amplifier signals (mono or stereo). The HeadAmp 4 has a redesigned case design (like the USBPhono Plus), additional functionality (including 1/8″ I/O), and improved components.
ART HeadAmp 4 Features:
- Redesigned case.
- Powers four sets of headphones from a single feed.
- Connectors: 1/4″ and 1/8″.
- Accepts mono or stereo signals.
- Power supply (12V DC) provided.
