ART HEADAMP 6 PRO 6-Channel Headphone Amplifier
Original price was: ₹30,575.00.₹29,500.00Current price is: ₹29,500.00.
Specifications
| Inputs | XLR, 1/4″ |
| Outputs | XLR, 1/4″ |
| Input Impedance | 40K Ω Main, 10K Ω Direct, 15K Ω Aux In |
| Output Impedance | <12 ΩHeadphones |
| Maximum Input Level | +21 dBu |
| Maximum Output Level | 150mW (600 Ω Headphones) 500mW (32 Ω Headphones) 150mW (8 Ω Headphone |
| Maximum Gain | 22 dB |
| Total Harmonic Distortion | <.01% Typical |
| Signal to Noise Ratio | >90dB Typical |
| CMRR | >40 dB |
| Power Requirements | 120 VAC / 50-60 Hz, or 230 VAC / 50 Hz, 15 W |
| Dimensions (LWH) | 6″ x 19″ x 1.75″, 15.2 cm x 48.3 x 4.45 |
| Weight | 5.3 lbs. (2.4kg) |
he HeadAmp 6 is a six-channel stereo headphone amplifier with three outputs per channel, so up to eighteen sets of headphones can be connected simultaneously.
Each channel features an independent auxiliary input with a balance control, so its easy to dial in a more me mix. Additional switches mute the left or right signal and sum the channel to mono, so listeners have the control to hear exactly what they need.
LED meters with clipping indicators for the main signal bus and each output channel confirm signal activity at a glance.

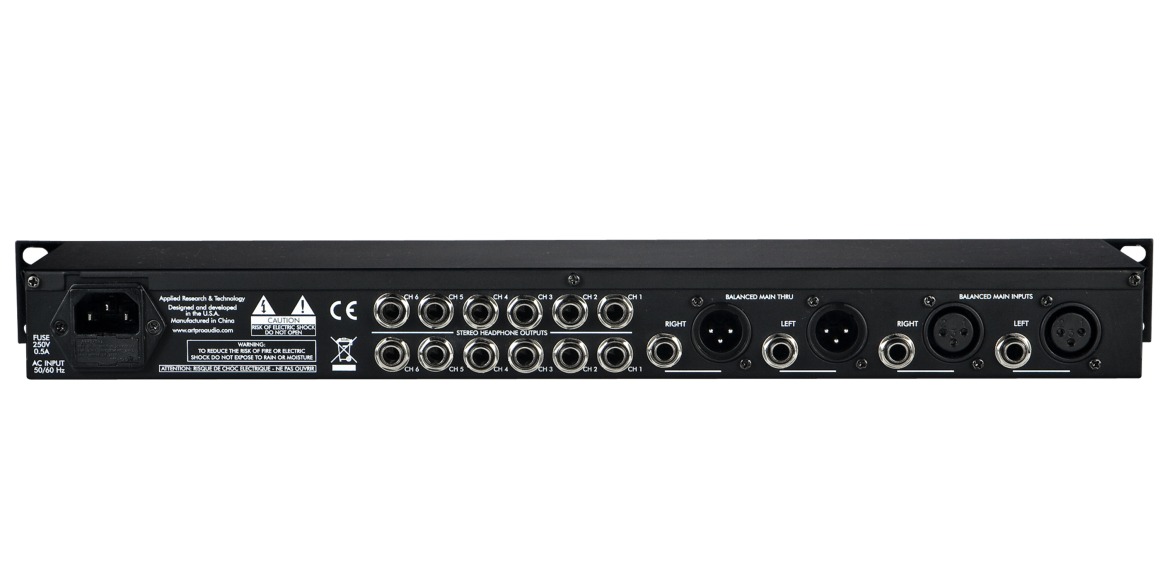

The rear panel has balanced XLR and 1/4 inputs, and Thru connectors to chain multiple units for even more outputs. A Direct input on the front panel overrides the rear signal, so you can quickly switch sources without getting behind the rack.
The HeadAmp 6 offers the most outputs of any ART headphone amplifier, and is ideal for working with large ensembles.
Features
- 6x Output Channels
- Stereo XLR and 1/4″ Balanced Inputs
- 1/4″ Direct In Overrides Rear Inputs
- 3x 1/4″ Headphone Outputs per Channel
- Supports up to 18 Pairs of Headphones
- Aux In with Main / Aux Balance per Channel
- Mute L, Mute R, and Mono Switches per Channel
- LED Meters with Clip Indicators for Main Bus and Output Channels
- 1U Rackmount
