Category: HANDY RECORDER
Showing all 7 results
-
ZOOM F1 Field Recorder + Lavalier Mic
Original price was: ₹19,661.00.₹16,600.00Current price is: ₹16,600.00.Add to cartSpecs
RECORDING MEDIA: microSD/microSDHC cards (Class 4 or higher, up to 32 GB) RECORDING FORMATS: WAV 44.1 kHz/16-bit, 48 kHz/16-bit, 48 kHz/24-bit, 96 kHz/24-bit MP3 48 kbps, 128 kbps, 192 kbps, 256 kbps, 320 kbps Mono/stereo ID3v1 tags supported DISPLAY: 1.25″ monochrome LCD INPUTS
MIC IN : ZOOM mic capsule input MIC/LINE IN: Connector: 3.5 mm stereo mini (with screw lock) Supports plug-in power (2.5 V) Input gain: −12 dB – +36 dB Input impedance: 2 kΩ or more LAVALIER MIC : Plug: 3.5 mm stereo mini (with screw lock) Directionality: Omnidirectional Sensitivity: -32 dB/1 Pa at 1kHz Maximum sound pressure input: 115 dB spl Cable length: 160 cm OUTPUTS
PHONE OUT : Connector: 3.5 mm stereo mini (with screw lock) Maximum output level: 11 mW + 11 mW (into 32 Ω load) USB: microUSB Mass storage operation: USB 2.0 High Speed Audio interface operation: USB class compliant 44.1kHz/16-bit, 48kHz/16-bit, 2-in/2-out Transfer method: asynchronous POWER
2 AAA batteries (alkaline, NiMH or lithium) AC adapter (ZOOM AD-17): DC 5V/1A RECORDING TIME USING BATTERIES: Lavalier mic (48 kHz/24-bit, mono, plug-in power on): Alkaline batteries: about 10 hours NiMH batteries 750 mAh): about 9 hours Lithium batteries: about 16 hours *The above values are approximate. DIMENSIONS: 64 mm (W) x 79.8 mm (D) x 33.3 mm (H) WEIGHT: 120 g (without batteries) -

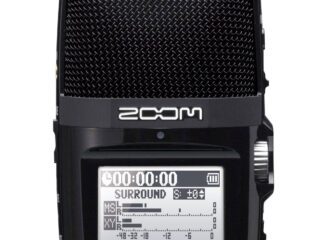

Zoom H2N Handy Recorder
Original price was: ₹21,997.00.₹18,500.00Current price is: ₹18,500.00.Add to cartSpecs
GENERAL
RECORDING MEDIA: 16MB–2GB SD cards, 4GB–32GB SDHC cards BUILT-IN MEMORY: Up to 1 minute in 96kbps MP3 format (Recording overwrites any previous recording in memory) MIC ARRANGEMENTS: 90˚ X/Y stereo, MS stereo with adjustable side mic level RECORDING MODES: MS, XY, MS+XY (2ch), MS+XY (4ch) MICROPHONE TYPES: Directional (XY, MS mid mics) Bidirectional (MS side mic) MAXIMUM SOUND PRESSURE INPUT: 120 dB spl (directional) 122 dB spl (bi-directional) FILE FORMATS
STEREO UNCOMPRESSED PCM: 44.1 / 48 / 96kHz, 16 / 24bit WAV (BWF) COMPRESSED MP3 (RECORDING): 44.1kHz, 48kHz 56 /64/80/96/112/128/160/192/ 224/256/320kbps (Not compatible with MS-RAW recording) COMPRESSED MP3 (PLAYBACK): 44.1kHz, 48kHz 32/40/48/56/64/80/96/112/128/160/192/224/256/320kbps 4CH UNCOMPRESSED PCM: 44.1 / 48 / 96kHz, 16 / 24bit WAV (BWF) (Two stereo files for each recording) DIGITAL PROCESSING
A/D CONVERSION: 24-bit 128× oversampling D/A CONVERSION: 24-bit 128× oversampling SIGNAL PROCESSING: 32-bit RECORDING TIME (2GB CARD): 3:08:00 (44.1kHz/16bit WAV), 34:43:00 (128kbps MP3) ADDITIONAL FEATURES
LO CUT: 80Hz high-pass filter COMP/LIMITER: 3 types of compressors and 3 types of limiters AUTO GAIN: Automatic input gain adjustment (3 levels) PRE REC: 2 seconds of pre-recording AUTO REC: Automatic recording start/stop, continuous standby TUNER: Chromatic, guitar, bass and alternate (A/E/G/D/DADGAD) tunings with automatic string detection METRONOME: 40–250 BPM range, five tones, pre-count SPEED: Playback speed adjustable between 50–150% KEY CONTROL: Playback pitch adjustable ±6 semitones (Cannot be used with 96kHz files) AB REPEAT: Repeats playback between selected points in a file FILE DIVIDE: Divides a file into two FILE NORMALIZE: Maximizes file volume (Cannot be used with MP3s) FILE MP3 ENCODE: Converts WAV files to MP3 formats at fixed bit rates MARK: Up to 99 marks (WAV files only) SURROUND MIXER: Adjusts mix balance when playing back 4ch surround recordings OTHER DISPLAY GRAPHIC: 128×64 pixels backlit LCD INPUT GAIN: 0 to +39 dB INPUT JACK: Line/mic stereo mini jack with plug-in power 2 kΩ impedance at input levels of 0 to –39 dBm OUTPUT JACK: Line/headphone stereo mini jack RATED OUTPUT LEVEL: −10 dBm (output impedance 10 kΩ or more) HEADPHONES: 20 mW + 20 mW (into 32 Ω load) BUILT-IN SPEAKER: 400mW, 8Ω, mono USB: Mini-B type Card reader operation USB 2.0 HIGH SPEED: Audio interface operation USB 1.0 FULL SPEED: Supports 44.1 / 48kHz sampling rates and 16-bit rate USB bus power operation supported POWER: Two AA batteries, AD-17 USB to AC adapter (DC 5V 1A) Continuous operation of 20 or more hours when recording 44.1kHz/16-bit WAV files using alkaline batteries PHYSICAL FEATURES: Tripod mounting socket, strap attachment DIMENSIONS: 67.6mm (W) × 113.85mm (H) × 42.7mm (D) WEIGHT: 130 g (without batteries) -

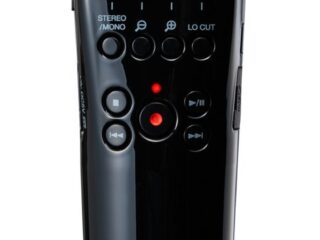

Zoom Handy Field Recorder M2
Original price was: ₹19,900.00.₹16,000.00Current price is: ₹16,000.00.Add to cartSpecs
Inputs
Built-in mic 90º XY stereo format Directionality Unidirectional Sensitivity −42 dB/1 Pa at 1 kHz Maximum sound pressure input 135 dB SPL Outputs
PHONE/LINE OUT jack Connector Stereo mini jack Maximum output level 20 ｍW + 20 ｍW (into 32Ω load) Output impedance 10 Ω or less Built-in speaker 500mW 8Ω mono speaker Recorder
Recording format WAV 44.1/48/96 kHz, 32-bit float Stereo/mono BWF and iXML formats supported Recording media 4–32GB cards compatible with the microSDHC specification 64GB–1TB cards compatible with the microSDXC specification Display
96×64 LCD with backlight USB
Connector USB Type-C • Use a USB cable that supports data transfer. USB Mic USB 2.0 High Speed 48 kHz 24-bit or 32-bit float File transfer USB 2.0 High Speed Power
2 AA batteries Alkaline, Lithium, or Rechargeable NiMH AC adapter ZOOM AD-17: DC 5 V/1 A • USB bus power is supported. Estimated Continuous Operation Time Using Batteries
Alkaline batteries About 11 hours NiMH batteries (1900 mAh) About 10.5 hours Lithium batteries About 22 hours Stereo recording, 48kHz/32-bit float, no headphones, display backlight off
These values are approximate.
Continuous battery operation times were determined using in-house testing methods.
They will vary greatly according to use conditions.Power consumption 5 W maximum Dimensions 221.5 mm (W) × 61.9 mm (D) × 59.3 mm (H) Weight (including batteries) 204 g Note: 0 dBu = 0.775 Vrms
-

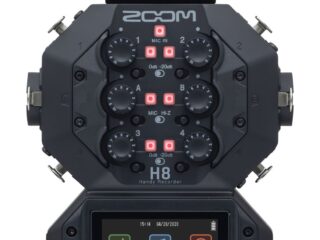

ZOOM HANDY RECORDER H-8
Original price was: ₹58,749.00.₹39,500.00Current price is: ₹39,500.00.Add to cartSpecs
Specifications
NUMBER OF INPUT CHANNELS 8 (XY mic capsule, 1-4, A, B) NUMBER OF OUTPUT CHANNELS 2 (stereo headphone and stereo line) Connectors
MIC IN ZOOM mic connector INPUT 1-4 XLR jacks (2: HOT) INPUT A/B XLR/TRS combo jacks (XLR: 2 hot, TRS: TIP hot) USB USB Micro-B(audio interface, mass storage and Guitar Lab connection functions)Note: Use a USB cable that supports data transfer.Operation using USB bus power is possible. REMOTE ZOOM BTA-1 or other dedicated wireless adapter LINE OUT 3.5 mm stereo mini PHONE OUT 3.5 mm stereo mini PHANTOM POWER +24 V/+48 V (independent ON/OFF for INPUTS 1–4, A and B) Recorder
RECORDING MEDIA Cards that support SD/SDHC/SDXC specifications FORMATS WAV: 44.1/48/96 kHz, 16/24-bit, mono/stereoMP3: 128, 192, 320 kbps MAXIMUM SIMULTANEOUS RECORDINGTRACKS 12 (MIC IN, backup recording, 1-4, A, B, and LR) Audio interface
MULTITRACK MODE 44.1/48/96 kHz, 16/24-bit, 12-in/2-out STEREO MIX MODE 44.1/48 kHz, 24-bit, 2-in/2-out TUNER Chromatic/Guitar/Bass/Open A/Open D/Open E/Open G/DADGAD BUILT-IN SPEAKER 400 mW 8Ω mono speaker DISPLAY 2.4″ (320×240) full-color touchscreen LCD POWER 4 AA batteries (alkaline, NiMH or lithium)AC adapter (ZOOM AD-17): DC 5 V/1AUSB bus power Using XY mic, 44.1 kHz/24-bit (stereo × 1): about 10:00 The above values are approximate. Continuous battery operation times were determined using in-house testing methods. They will vary greatly according to use conditions. EXTERNAL DIMENSIONS H8 116.4 mm (W) × 163.3 mm (D) × 48.6 mm (H) XYH-6 78.9 mm (W) × 60.2 mm (D) × 45.2 mm (H) WEIGHT H8 354 g XYH-6: 130 g Note: When using a USB cable designed for recharging, audio interface, SD card reader and Guitar Lab connection functions cannot be used. -

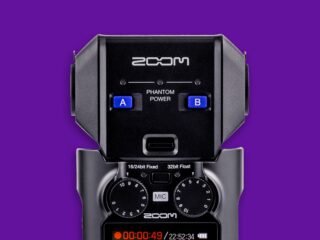

Zoom Handy Recorder H5 Studio
Original price was: ₹43,897.00.₹37,000.00Current price is: ₹37,000.00.Add to cartThe Largest Mics Ever on a Handy Recorder The 19.4mm microphones capture audio with incredible frequency response, 140 dB max SPL, and an expansive dynamic range. Their increased size captures recordings with unmatched depth and fidelity. The Largest Mics Ever on a Handy Recorder The 19.4mm microphones capture audio with incredible frequency response, 140 dB …
-

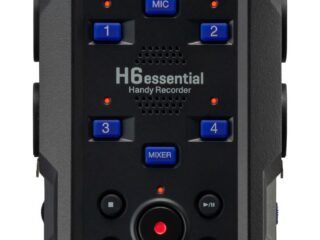

ZOOM Handy Recorder H6 Essential
Original price was: ₹49,346.00.₹35,500.00Current price is: ₹35,500.00.Add to cartSpecs
INPUT AND OUTPUT CHANNELS
Inputs Mic capsule 1 MIC/LINE (mono) 4 Outputs LINE OUT 1 Headphones 1 Built-in speaker (mono) 1 INPUTS
XY mic: XYH-6e 90º XY stereo format Directionality Unidirectional Sensitivity −42dB/1Pa at 1kHz Maximum sound pressure input 135 dB SPL MIC/LINE (mono) Connectors 4 XLR/TRS combo jacks (XLR：2 HOT TRS：TIP HOT） Input gain Adjustment unnecessary (dual A/D converter circuits used) Input impedance MIC (XLR) : 3.8 kΩ or more LINE (TRS) : 39 kΩ or more Maximum input level MIC (XLR) : +4 dBu LINE (TRS) : +24 dBu Phantom power +48 V Channel total 32 mA or less Equivalent input noise MIC (XLR) : -120 dBu or less（IHF-A) @150 Ω input LINE (TRS) : -95 dBu or less（IHF-A) @600 Ω input OUTPUTS
LINE OUT Connector Stereo mini jack Maximum output level +1 dBu Output impedance 110 Ω or less Headphones Connector Stereo mini jack Maximum output level 20 ｍW + 20 ｍW（when 32 Ω load） Output impedance 10 Ω or less Built-in speaker Type 20 mm x 30mm elliptical dynamic speaker Effective maximum output 250mW RECORDER
Maximum simultaneous recording tracks 8 Maximum simultaneous playback tracks 6 Recording formats WAV 44.1/48/96 kHz, 32-bit float mono/stereo BWF and iXML formats supported Recording media 4-32GB cards compatible with the microSDHC specification 64GB–1TB cards compatible with the microSDXC specification DISPLAY
2.0-inch full-color LCD 360 x 240 USB
Connector USB Type-C • Use a USB cable that supports data transfer. Audio Interface USB 2.0 High Speed Input and output channels 6 in / 2 out (Multi) 2 in / 2 out (Stereo) Sampling frequency 44.1/48/96 kHz (AIF only) 44.1/48 kHz (AIF + onboard recording) Bit depth 24-bit, 32-bit float File transfer USB 2.0 High Speed REMOTE
Dedicated wireless adapter ZOOM BTA-1 POWER
4 AA batteries Alkaline, lithium or rechargeable NiMH batteries AC Adapter ZOOM AD-17 (DC 5 V/1 A) • USB bus power is supported. ESTIMATED CONTINUOUS OPERATION TIMES USING BATTERIES : 2-track recording (XYH-6e)
Alkaline batteries About 18 hours NiMH batteries (1900 mAh) About 14.5 hours Lithium batteries About 30 hours 48 kHz/32-bit float with phantom power off, no headphones, no LINE OUT, no REMOTE, Power Saving on, Display Brightness Medium
• These values are approximate.
• Continuous battery operation times were determined using in-house testing methods.They will vary greatly according to use conditions.ESTIMATED CONTINUOUS OPERATION TIMES USING BATTERIES : 6-track recording (XYH-6e and inputs 1–4)
Alkaline batteries About 3.5 hours NiMH batteries (1900 mAh) About 4 hours Lithium batteries About 9 hours 48 kHz/32-bit float with phantom power off, headphones used (33Ω load), no LINE OUT, no REMOTE, Power Saving on, Display Brightness Medium
• These values are approximate.
• Continuous battery operation times were determined using in-house testing methods.They will vary greatly according to use conditions.Power consumption 5 W maximum Dimensions Recorder: 78.1 mm (W) × 160.1 mm (D) × 42.8 mm (H) XYH-6e: 69.1 mm (W) × 50.8 mm (D) × 43.0 mm (H) Weight Recorder: 381 g (including batteries) XYH-6e: 42 g Note: 0 dBu = 0.775 Vrms
-

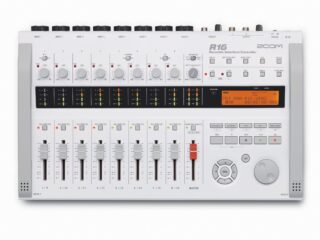

ZOOM Recorder Controller R-16
Original price was: ₹61,520.00.₹46,500.00Current price is: ₹46,500.00.Add to cartSpecs
RECORDER
TRACK COUNT 16 (mono) MAXIMUM NUMBER OF SIMULTANEOUS RECORDING TRACKS 8 MAXIMUM NUMBER OF SIMULTANEOUS PLAYBACK TRACKS 16 audio + metronome RECORDING FORMAT 44.1 kHz, 16/24-bit WAV format MAXIMUM RECORDING TIME 200 minutes/1 GB (mono tracks) PROJECTS 1000 MARKERS 100/project LOCATOR Hours/minutes/seconds/milliseconds and bars/beats/ticks FILE EDITING Divide TRACK PARAMETERS 3-band equalizer, pan (balance), effect send ×2, invert STEREO LINK Tracks 1 / 2 – 15 / 16 selectable OTHER FUNCTIONS Punch-in/out (manual, auto), Bounce, A-B repeat, Undo/Redo EFFECTS
ALGORITHMS 8 (CLEAN, DISTORTION, ACO/BASS SIM, BASS, MIC, DUAL MIC, STEREO, MASTERING) PATCHES 330 insert, 60 send-return EFFECTS MODULES 7 insert, 2 send TUNER
TYPE Chromatic, guitar, bass, open A/D/E/G, D modal METRONOME
TONES 5 BEAT No accent, 1 / 4 – 8 / 4, 6 / 8 TEMPO 40.0 – 250.0 BPM HARDWARE
MIXER FADERS 9 (mono x 8, master x 1) RECORDING MEDIA SD card (16MB – 2 GB), SDHC card (4 – 32 GB) ANALOG-DIGITAL CONVERSION 96 kHz 24-bit delta-sigma ADC DIGITAL-ANALOG CONVERSION 96 kHz 24-bit delta-sigma DAC DISPLAY 20-digit 2-line custom LCD (with backlight) LEVEL METERS 4-segment LED INPUTS Input 1-8 Type: XLR/TRS combo jacksInput impedance: (Balanced input) 1KΩ balanced (2 hot), (Unbalanced input) 50 KΩ unbalanced (1 with Hi-Z input impedance 470 KΩ (Hi-Z on), 5 / 6 with phantom power)Phantom Power: +48VInput level: -50 dBm < continuous < +4 dBm Built-in stereo microphones Type: Omnidirectional condenser microphonesGain: -50 dBm < continuous < +4 dBm OUTPUTS Output | Type: TRS phone (balanced) Phones| Standard stereo phone jack 20 mW x 2 (32 Ω load) USB
MINI-B TYPE (USB 2.0) Operation as audio interface/ control surface and mass storage USB AUDIO INTERFACE
NUMBER OF RECORDING CHANNELS 8 NUMBER OF PLAYBACK CHANNELS 2 BIT RATE 24 SAMPLING FREQUENCY 44.1, 48, 88.2, 96 kHz COMPATIBILITY Windows® 10 / 11, Intel® Core i3 or faster, RAM 1 GB or more (*USB 2.0 compatible port, Intel chipsets recommended) macOS 10.14 ~ 13, Intel® Core Duo 1.83 GHz or faster and RAM 1 GB or more (*USB 2.0 compatible port, Intel chipsets recommended) POWER
AC ADAPTER DC 5V 1A (Zoom AD-14) BATTERIES 6 AA batteries (4.5-hour continuous operation time with backlight on and phantom power off) OTHER
DIMENSIONS 376 mm (W) × 237.1 mm (D) × 52.2 mm (H) WEIGHT 1.3 kg
