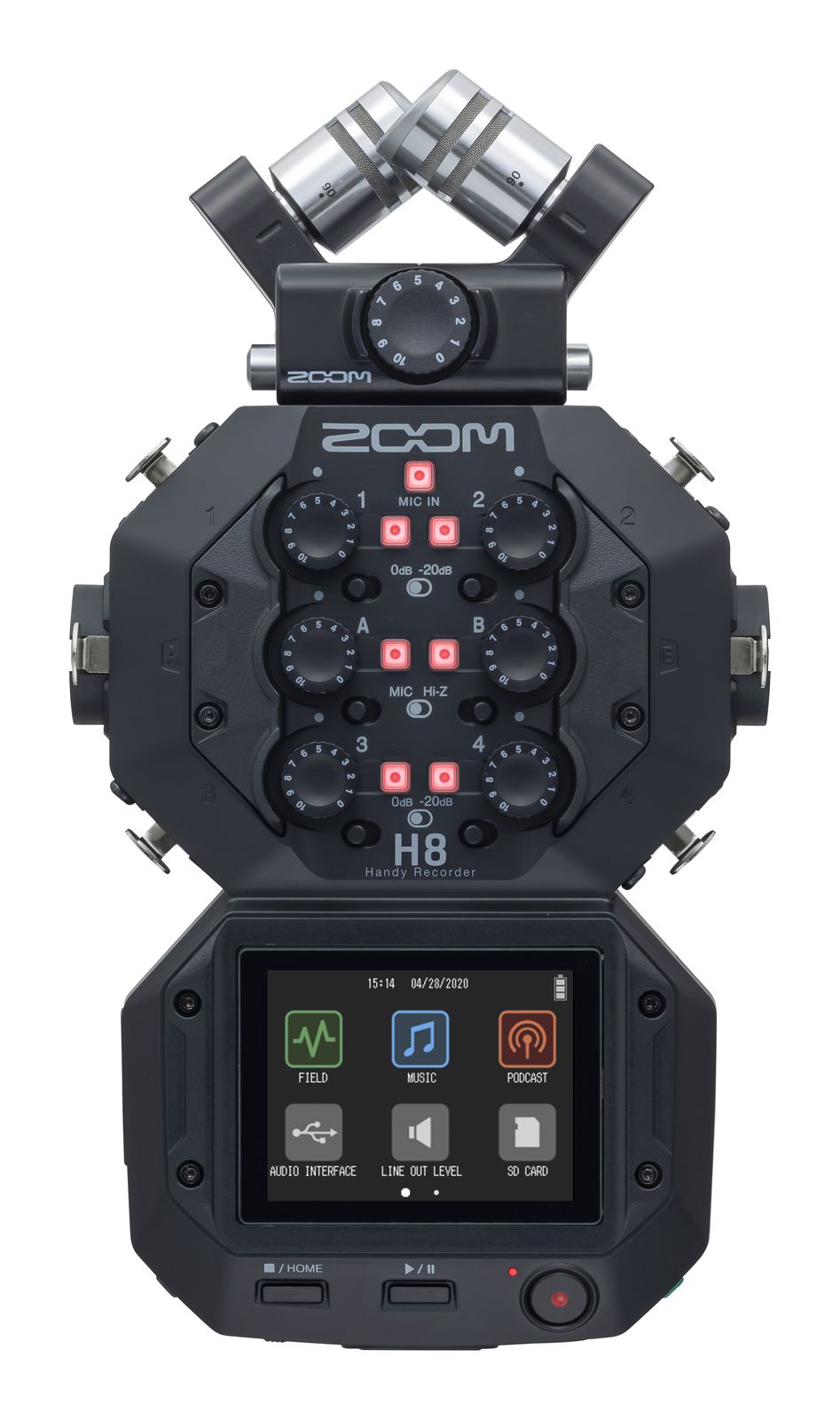

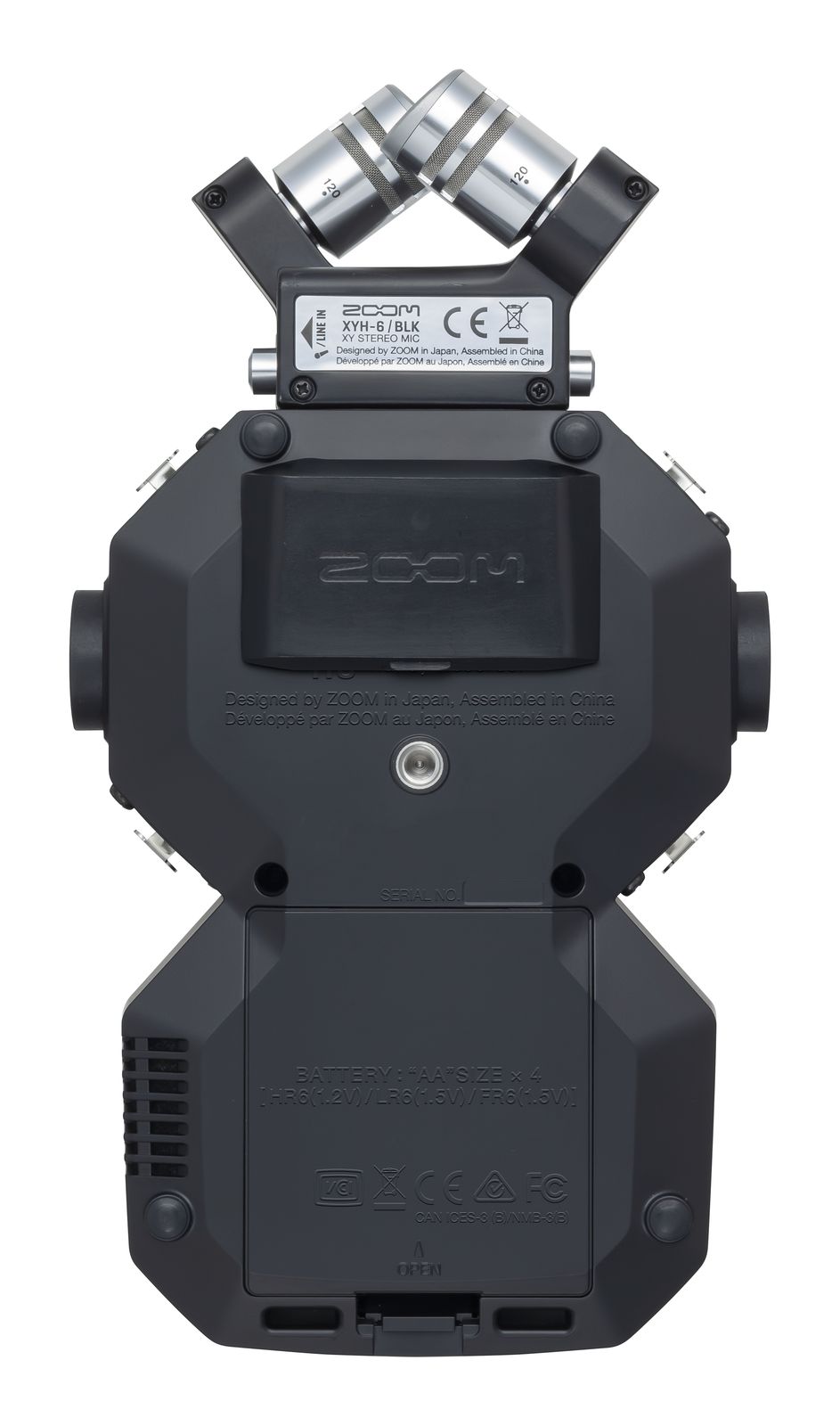

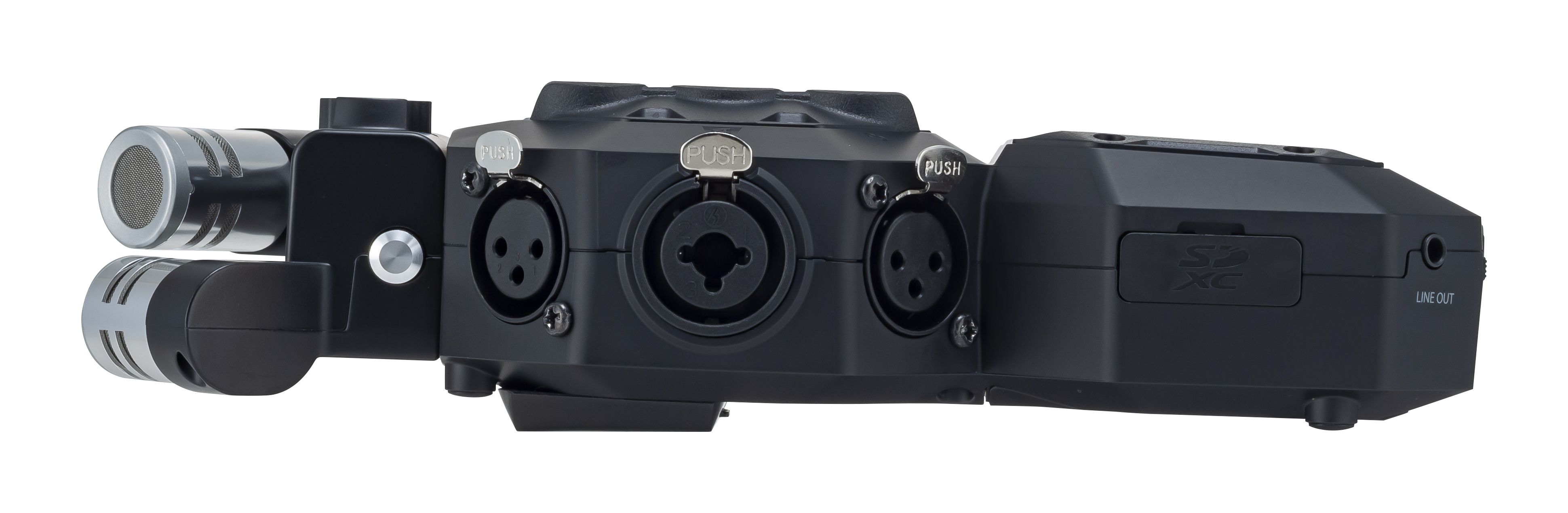

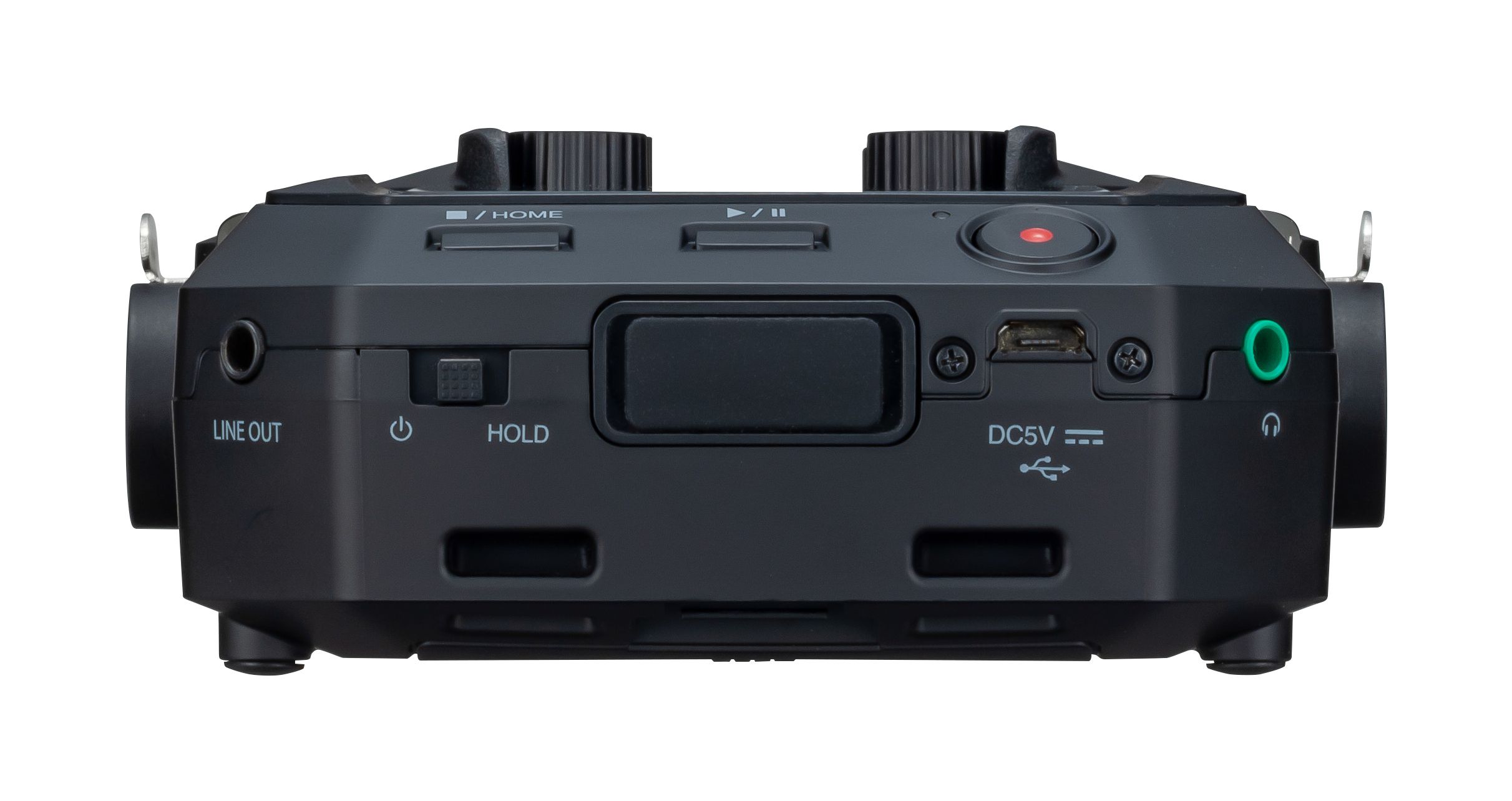

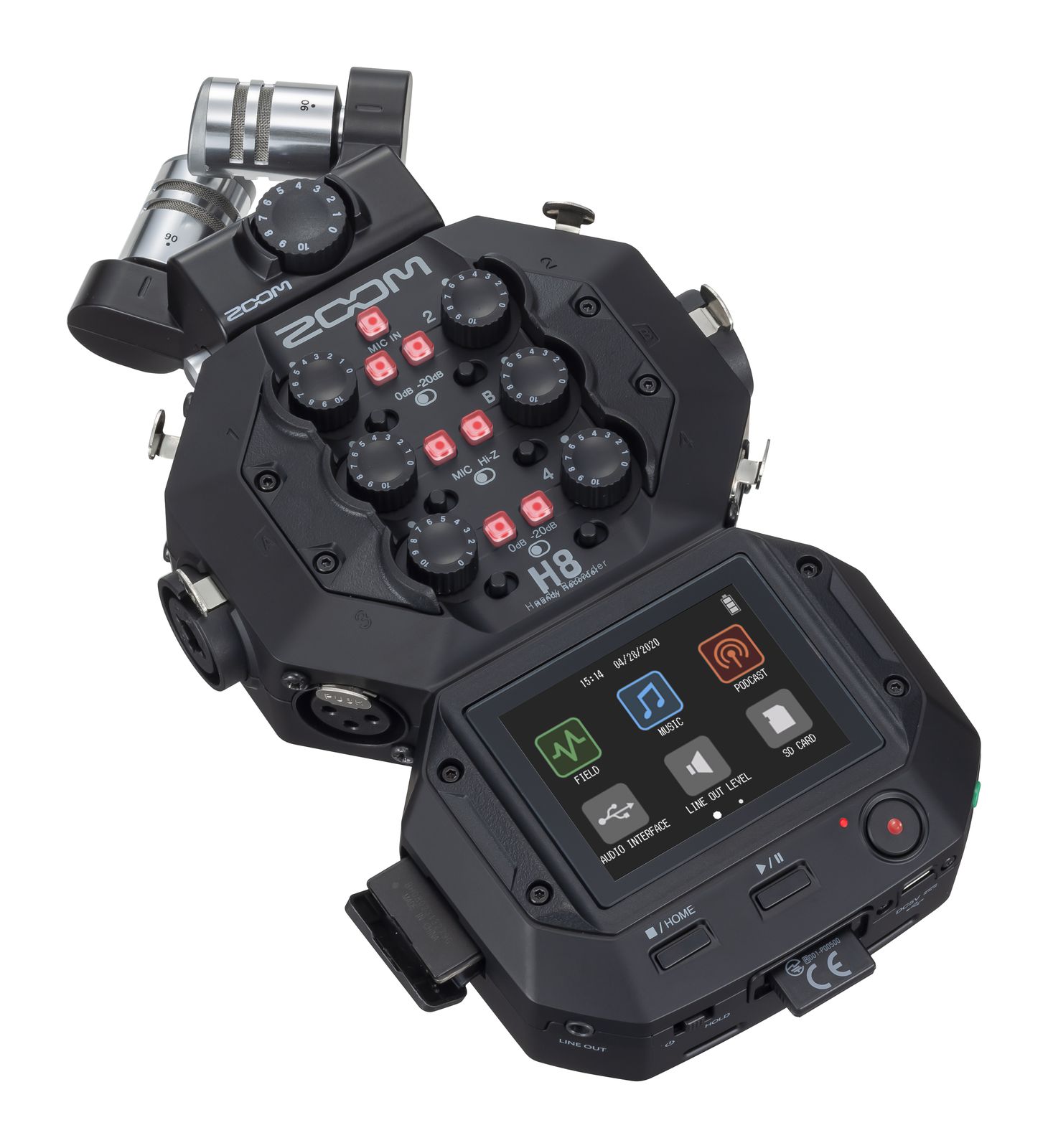

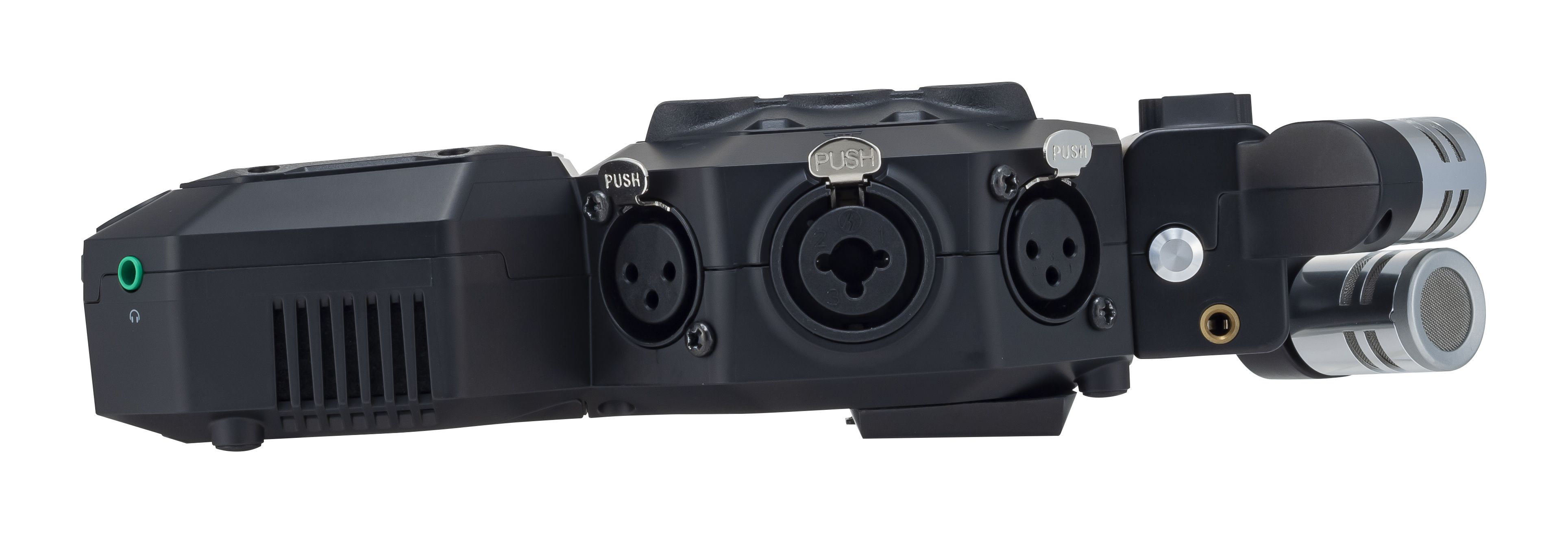

ZOOM HANDY RECORDER H-8
Original price was: ₹58,749.00.₹39,500.00Current price is: ₹39,500.00.
Specs
Specifications
| NUMBER OF INPUT CHANNELS | 8 (XY mic capsule, 1-4, A, B) |
| NUMBER OF OUTPUT CHANNELS | 2 (stereo headphone and stereo line) |
Connectors
| MIC IN | ZOOM mic connector |
| INPUT 1-4 | XLR jacks (2: HOT) |
| INPUT A/B | XLR/TRS combo jacks (XLR: 2 hot, TRS: TIP hot) |
| USB | USB Micro-B(audio interface, mass storage and Guitar Lab connection functions)Note: Use a USB cable that supports data transfer.Operation using USB bus power is possible. |
| REMOTE | ZOOM BTA-1 or other dedicated wireless adapter |
| LINE OUT | 3.5 mm stereo mini |
| PHONE OUT | 3.5 mm stereo mini |
| PHANTOM POWER | +24 V/+48 V (independent ON/OFF for INPUTS 1–4, A and B) |
Recorder
| RECORDING MEDIA | Cards that support SD/SDHC/SDXC specifications |
| FORMATS | WAV: 44.1/48/96 kHz, 16/24-bit, mono/stereoMP3: 128, 192, 320 kbps |
| MAXIMUM SIMULTANEOUS RECORDINGTRACKS | 12 (MIC IN, backup recording, 1-4, A, B, and LR) |
Audio interface
| MULTITRACK MODE | 44.1/48/96 kHz, 16/24-bit, 12-in/2-out |
| STEREO MIX MODE | 44.1/48 kHz, 24-bit, 2-in/2-out |
| TUNER | Chromatic/Guitar/Bass/Open A/Open D/Open E/Open G/DADGAD |
| BUILT-IN SPEAKER | 400 mW 8Ω mono speaker |
| DISPLAY | 2.4″ (320×240) full-color touchscreen LCD |
| POWER | 4 AA batteries (alkaline, NiMH or lithium)AC adapter (ZOOM AD-17): DC 5 V/1AUSB bus power |
| Using XY mic, 44.1 kHz/24-bit (stereo × 1): about 10:00 | |
| The above values are approximate. | |
| Continuous battery operation times were determined using in-house testing methods. They will vary greatly according to use conditions. | |
| EXTERNAL DIMENSIONS H8 | 116.4 mm (W) × 163.3 mm (D) × 48.6 mm (H) |
| XYH-6 | 78.9 mm (W) × 60.2 mm (D) × 45.2 mm (H) |
| WEIGHT H8 | 354 g XYH-6: 130 g |
| Note: When using a USB cable designed for recharging, audio interface, SD card reader and Guitar Lab connection functions cannot be used. |
H8 Features
- Customized applications for field recording, music and podcasting
- 3 distinct interfaces for field recording, music and podcasting
- Interchangeable input capsules
- 12-track simultaneous recording
- Four mic inputs and two XLR/TRS combo connectors
- Gain control knobs and -20dB pads for each input
- Supplied XYH-6 X/Y capsule provides secondary input via a stereo ⅛” Mic/Line In mini phone jack
- Phantom power for all six XLR mic inputs: +24/+48V
- Large color LCD touchscreen display
- Records directly to SD, SDHC and SDXC cards up to 512GB
- Up to 24-bit /96kHz audio in BWF-compliant WAV or a variety of MP3 formats
- Auto-record, Pre-record and Backup-record functions mean that you’ll never miss that perfect take
- Built-in effects, including low-cut filtering, compression, and limiting
- Multichannel and stereo USB audio interface for PC/Mac/iPad
- Accepts standard AA alkaline or NiMH rechargeable batteries
- Over 10 hours of operation with 4 AA alkaline batteries
You must be logged in to post a review.
Related products
-
ZOOM F1 Field Recorder + Lavalier Mic
Original price was: ₹19,661.00.₹16,600.00Current price is: ₹16,600.00.Add to cartSpecs
RECORDING MEDIA: microSD/microSDHC cards (Class 4 or higher, up to 32 GB) RECORDING FORMATS: WAV 44.1 kHz/16-bit, 48 kHz/16-bit, 48 kHz/24-bit, 96 kHz/24-bit MP3 48 kbps, 128 kbps, 192 kbps, 256 kbps, 320 kbps Mono/stereo ID3v1 tags supported DISPLAY: 1.25″ monochrome LCD INPUTS
MIC IN : ZOOM mic capsule input MIC/LINE IN: Connector: 3.5 mm stereo mini (with screw lock) Supports plug-in power (2.5 V) Input gain: −12 dB – +36 dB Input impedance: 2 kΩ or more LAVALIER MIC : Plug: 3.5 mm stereo mini (with screw lock) Directionality: Omnidirectional Sensitivity: -32 dB/1 Pa at 1kHz Maximum sound pressure input: 115 dB spl Cable length: 160 cm OUTPUTS
PHONE OUT : Connector: 3.5 mm stereo mini (with screw lock) Maximum output level: 11 mW + 11 mW (into 32 Ω load) USB: microUSB Mass storage operation: USB 2.0 High Speed Audio interface operation: USB class compliant 44.1kHz/16-bit, 48kHz/16-bit, 2-in/2-out Transfer method: asynchronous POWER
2 AAA batteries (alkaline, NiMH or lithium) AC adapter (ZOOM AD-17): DC 5V/1A RECORDING TIME USING BATTERIES: Lavalier mic (48 kHz/24-bit, mono, plug-in power on): Alkaline batteries: about 10 hours NiMH batteries 750 mAh): about 9 hours Lithium batteries: about 16 hours *The above values are approximate. DIMENSIONS: 64 mm (W) x 79.8 mm (D) x 33.3 mm (H) WEIGHT: 120 g (without batteries) -
Zoom Handy Field Recorder M2
Original price was: ₹19,900.00.₹16,000.00Current price is: ₹16,000.00.Add to cartSpecs
Inputs
Built-in mic 90º XY stereo format Directionality Unidirectional Sensitivity −42 dB/1 Pa at 1 kHz Maximum sound pressure input 135 dB SPL Outputs
PHONE/LINE OUT jack Connector Stereo mini jack Maximum output level 20 ｍW + 20 ｍW (into 32Ω load) Output impedance 10 Ω or less Built-in speaker 500mW 8Ω mono speaker Recorder
Recording format WAV 44.1/48/96 kHz, 32-bit float Stereo/mono BWF and iXML formats supported Recording media 4–32GB cards compatible with the microSDHC specification 64GB–1TB cards compatible with the microSDXC specification Display
96×64 LCD with backlight USB
Connector USB Type-C • Use a USB cable that supports data transfer. USB Mic USB 2.0 High Speed 48 kHz 24-bit or 32-bit float File transfer USB 2.0 High Speed Power
2 AA batteries Alkaline, Lithium, or Rechargeable NiMH AC adapter ZOOM AD-17: DC 5 V/1 A • USB bus power is supported. Estimated Continuous Operation Time Using Batteries
Alkaline batteries About 11 hours NiMH batteries (1900 mAh) About 10.5 hours Lithium batteries About 22 hours Stereo recording, 48kHz/32-bit float, no headphones, display backlight off
These values are approximate.
Continuous battery operation times were determined using in-house testing methods.
They will vary greatly according to use conditions.Power consumption 5 W maximum Dimensions 221.5 mm (W) × 61.9 mm (D) × 59.3 mm (H) Weight (including batteries) 204 g Note: 0 dBu = 0.775 Vrms
-
Zoom Handy Recorder H5 Studio
Original price was: ₹43,897.00.₹37,000.00Current price is: ₹37,000.00.Add to cartThe Largest Mics Ever on a Handy Recorder The 19.4mm microphones capture audio with incredible frequency response, 140 dB max SPL, and an expansive dynamic range. Their increased size captures recordings with unmatched depth and fidelity. The Largest Mics Ever on a Handy Recorder The 19.4mm microphones capture audio with incredible frequency response, 140 dB …
-
ZOOM Handy Recorder H6 Essential
Original price was: ₹49,346.00.₹35,500.00Current price is: ₹35,500.00.Add to cartSpecs
INPUT AND OUTPUT CHANNELS
Inputs Mic capsule 1 MIC/LINE (mono) 4 Outputs LINE OUT 1 Headphones 1 Built-in speaker (mono) 1 INPUTS
XY mic: XYH-6e 90º XY stereo format Directionality Unidirectional Sensitivity −42dB/1Pa at 1kHz Maximum sound pressure input 135 dB SPL MIC/LINE (mono) Connectors 4 XLR/TRS combo jacks (XLR：2 HOT TRS：TIP HOT） Input gain Adjustment unnecessary (dual A/D converter circuits used) Input impedance MIC (XLR) : 3.8 kΩ or more LINE (TRS) : 39 kΩ or more Maximum input level MIC (XLR) : +4 dBu LINE (TRS) : +24 dBu Phantom power +48 V Channel total 32 mA or less Equivalent input noise MIC (XLR) : -120 dBu or less（IHF-A) @150 Ω input LINE (TRS) : -95 dBu or less（IHF-A) @600 Ω input OUTPUTS
LINE OUT Connector Stereo mini jack Maximum output level +1 dBu Output impedance 110 Ω or less Headphones Connector Stereo mini jack Maximum output level 20 ｍW + 20 ｍW（when 32 Ω load） Output impedance 10 Ω or less Built-in speaker Type 20 mm x 30mm elliptical dynamic speaker Effective maximum output 250mW RECORDER
Maximum simultaneous recording tracks 8 Maximum simultaneous playback tracks 6 Recording formats WAV 44.1/48/96 kHz, 32-bit float mono/stereo BWF and iXML formats supported Recording media 4-32GB cards compatible with the microSDHC specification 64GB–1TB cards compatible with the microSDXC specification DISPLAY
2.0-inch full-color LCD 360 x 240 USB
Connector USB Type-C • Use a USB cable that supports data transfer. Audio Interface USB 2.0 High Speed Input and output channels 6 in / 2 out (Multi) 2 in / 2 out (Stereo) Sampling frequency 44.1/48/96 kHz (AIF only) 44.1/48 kHz (AIF + onboard recording) Bit depth 24-bit, 32-bit float File transfer USB 2.0 High Speed REMOTE
Dedicated wireless adapter ZOOM BTA-1 POWER
4 AA batteries Alkaline, lithium or rechargeable NiMH batteries AC Adapter ZOOM AD-17 (DC 5 V/1 A) • USB bus power is supported. ESTIMATED CONTINUOUS OPERATION TIMES USING BATTERIES : 2-track recording (XYH-6e)
Alkaline batteries About 18 hours NiMH batteries (1900 mAh) About 14.5 hours Lithium batteries About 30 hours 48 kHz/32-bit float with phantom power off, no headphones, no LINE OUT, no REMOTE, Power Saving on, Display Brightness Medium
• These values are approximate.
• Continuous battery operation times were determined using in-house testing methods.They will vary greatly according to use conditions.ESTIMATED CONTINUOUS OPERATION TIMES USING BATTERIES : 6-track recording (XYH-6e and inputs 1–4)
Alkaline batteries About 3.5 hours NiMH batteries (1900 mAh) About 4 hours Lithium batteries About 9 hours 48 kHz/32-bit float with phantom power off, headphones used (33Ω load), no LINE OUT, no REMOTE, Power Saving on, Display Brightness Medium
• These values are approximate.
• Continuous battery operation times were determined using in-house testing methods.They will vary greatly according to use conditions.Power consumption 5 W maximum Dimensions Recorder: 78.1 mm (W) × 160.1 mm (D) × 42.8 mm (H) XYH-6e: 69.1 mm (W) × 50.8 mm (D) × 43.0 mm (H) Weight Recorder: 381 g (including batteries) XYH-6e: 42 g Note: 0 dBu = 0.775 Vrms
