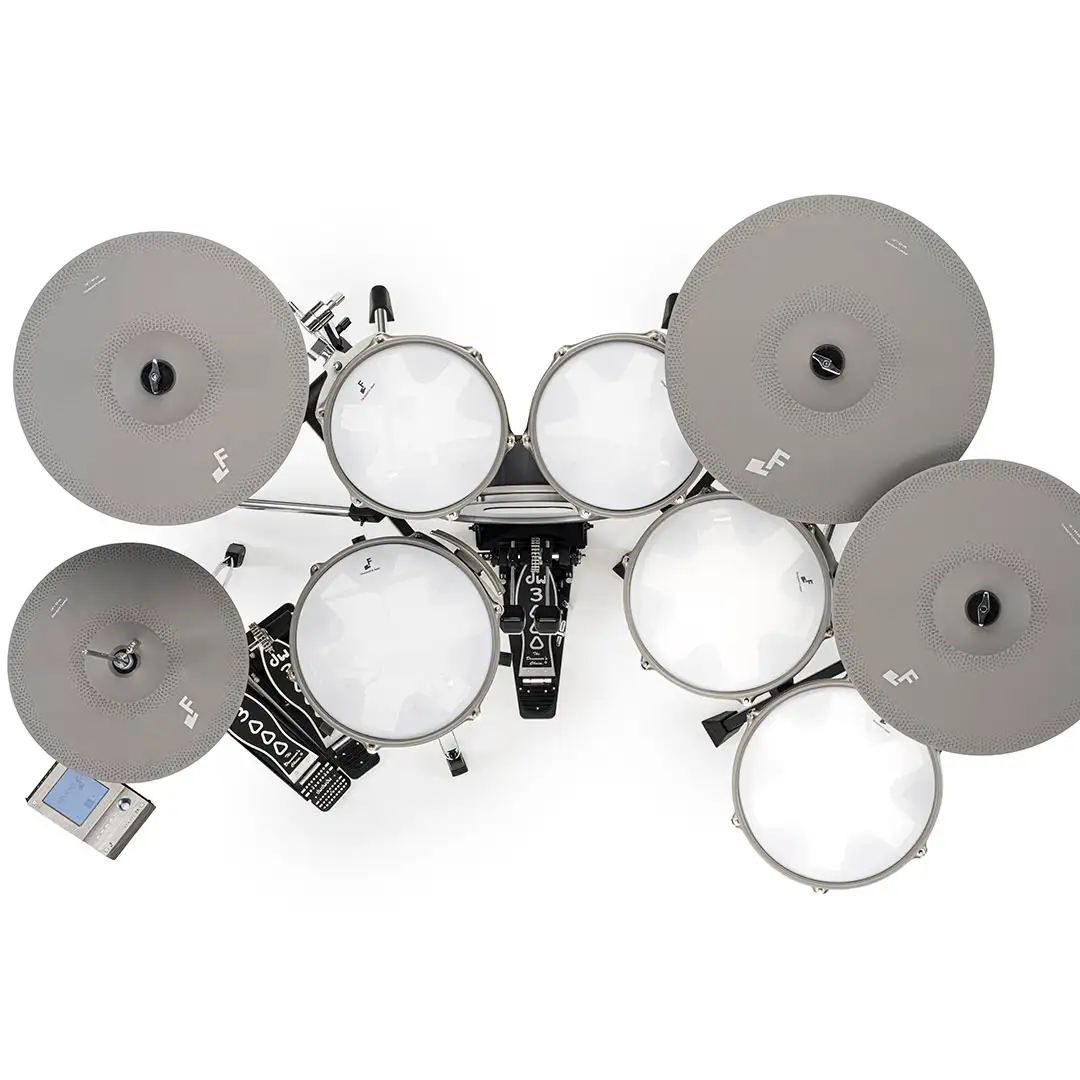

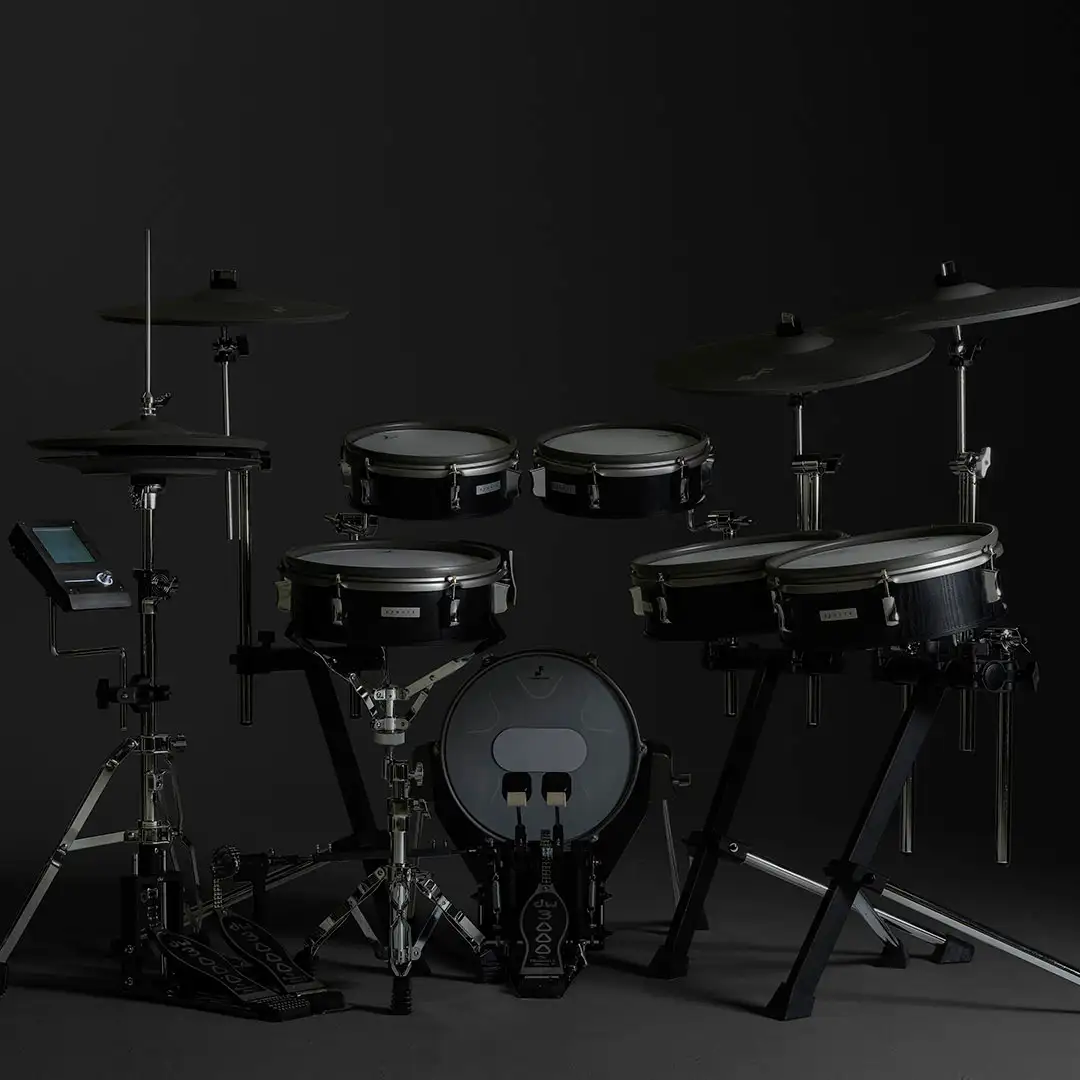

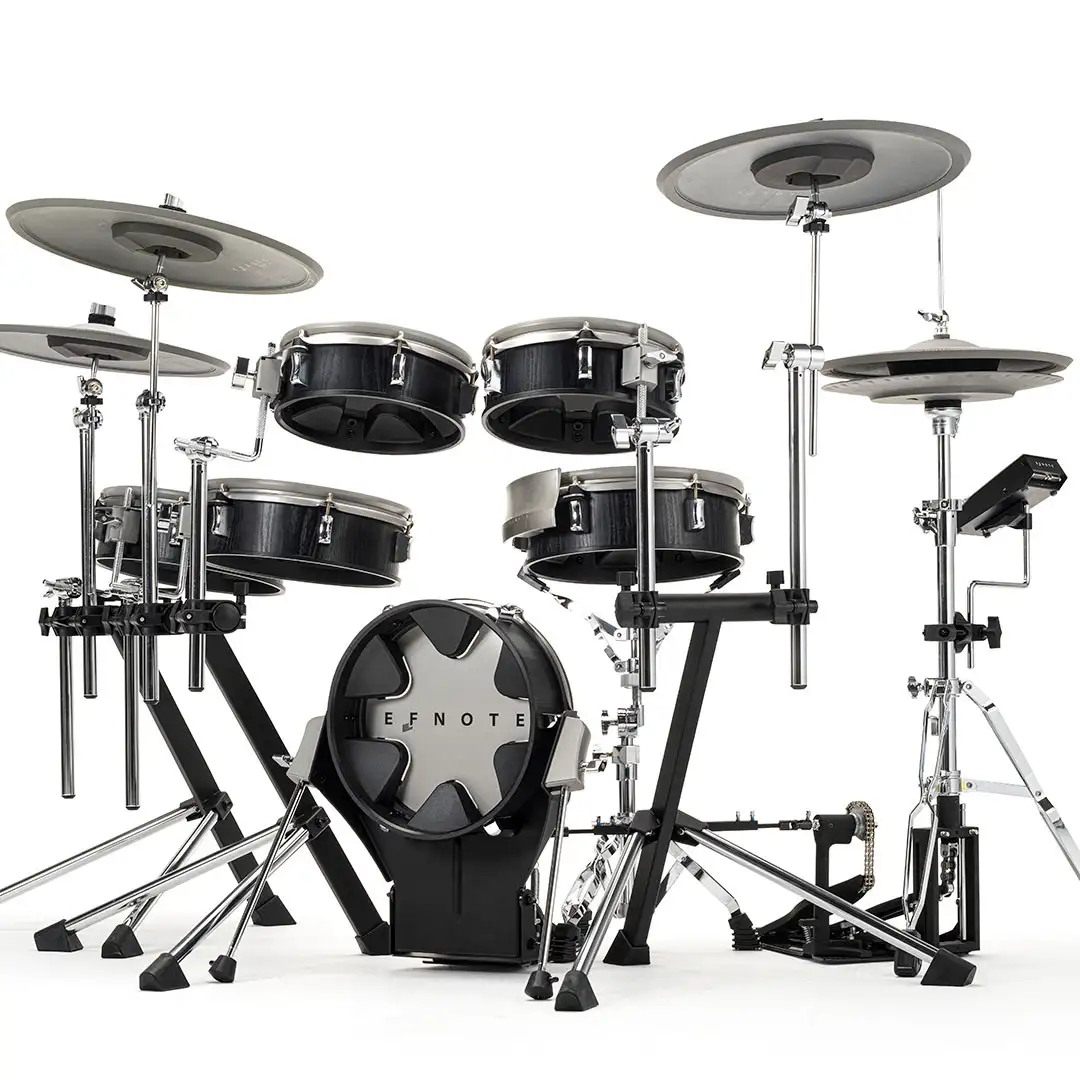

EFNOTE 3X Standard Set (Black Oak)
₹288,216.00
■ EFNOTE 3X : The Ultimate Performance
The Full Spec
- Specially full-expanded based on EFNOTE 3
- 6-piece shell and 4-piece cymbal set
- Dignified black oak-ish finish
- Full stereo drum/cymbal sounds
- USB Audio/MIDI, Bluetooth, Remote App available
Hi-Tuned Performance
- 14″ 2-piece hi-hat cymbal
- 16″/18″ full-sized cymbals
- 12″ mesh snare pad
- 4x 10″/12″ mesh tom pad
- 12″ mesh kick pad
- Innovative independent rack stands
■ Drums & Cymbals

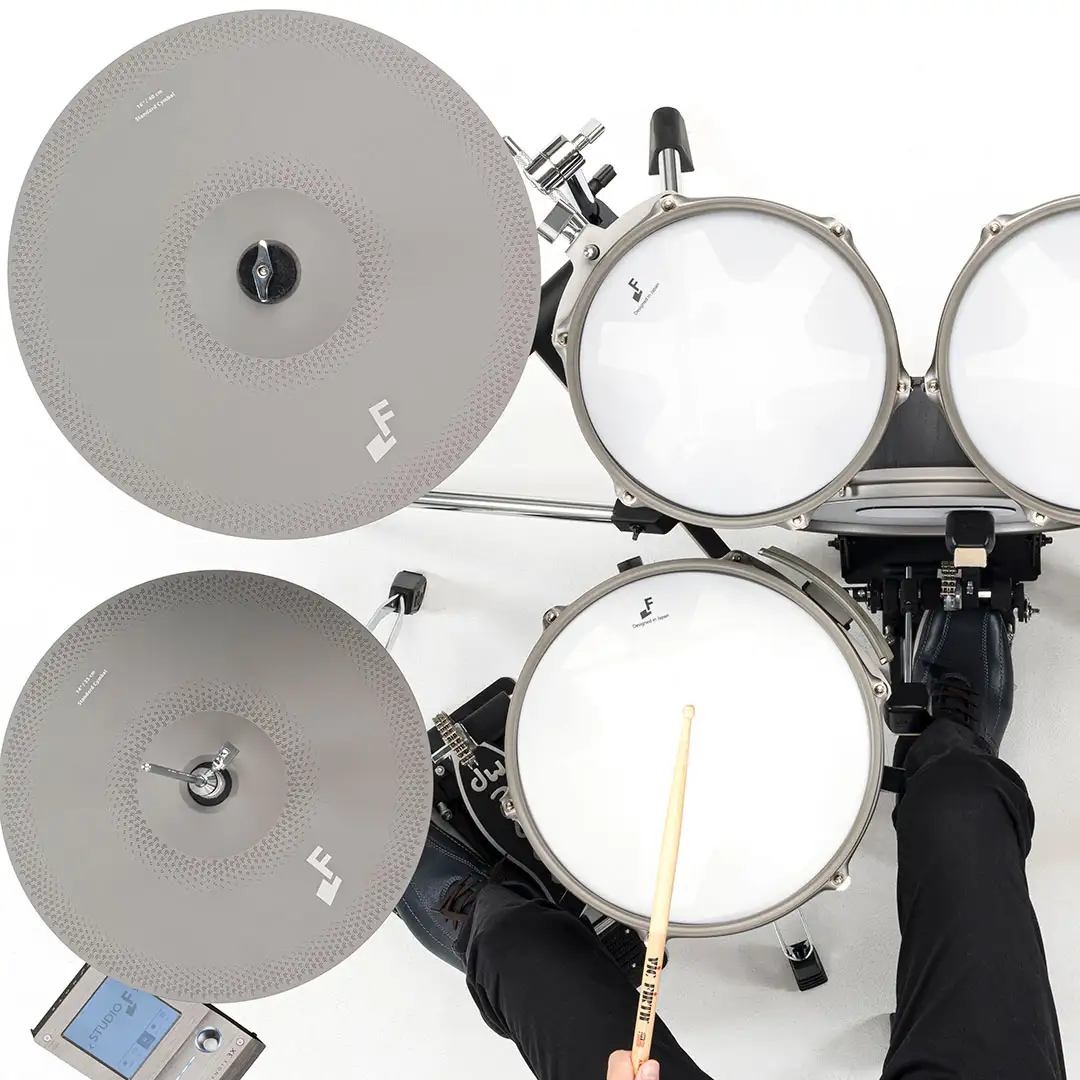

Finest Hi-Hat Cymbals
- 14″ top/bottom cymbals
- World’s first multi-optical sensing to capture the motions in 3D
- Tru-Motion™ technology for expressiveness leap
- 360° free-swinging top/bottom cymbal design
18″ Full Ride Cymbal
- 18″ ride cymbal, 3-zone (bow/edge/cup)
- Multi-sensored 360° play/choke area
- 360° free-swinging design
- Responsive thin edge
3-Zone Crash Cymbals
- 2x 16″ crash cymbal, 3-zone (bow/edge/cup)
- Multi-sensored 360° play/choke area
- 360° free-swinging design
- Responsive thin edge
*EFNOTE 3X does not support the Crash 1 cup when the Tom 4 is used.
Beautiful Cymbal Surface
- Elegant warm-gray surface with fine engravings
- Clean silicone rubber surface that is resistant to drumstick marks

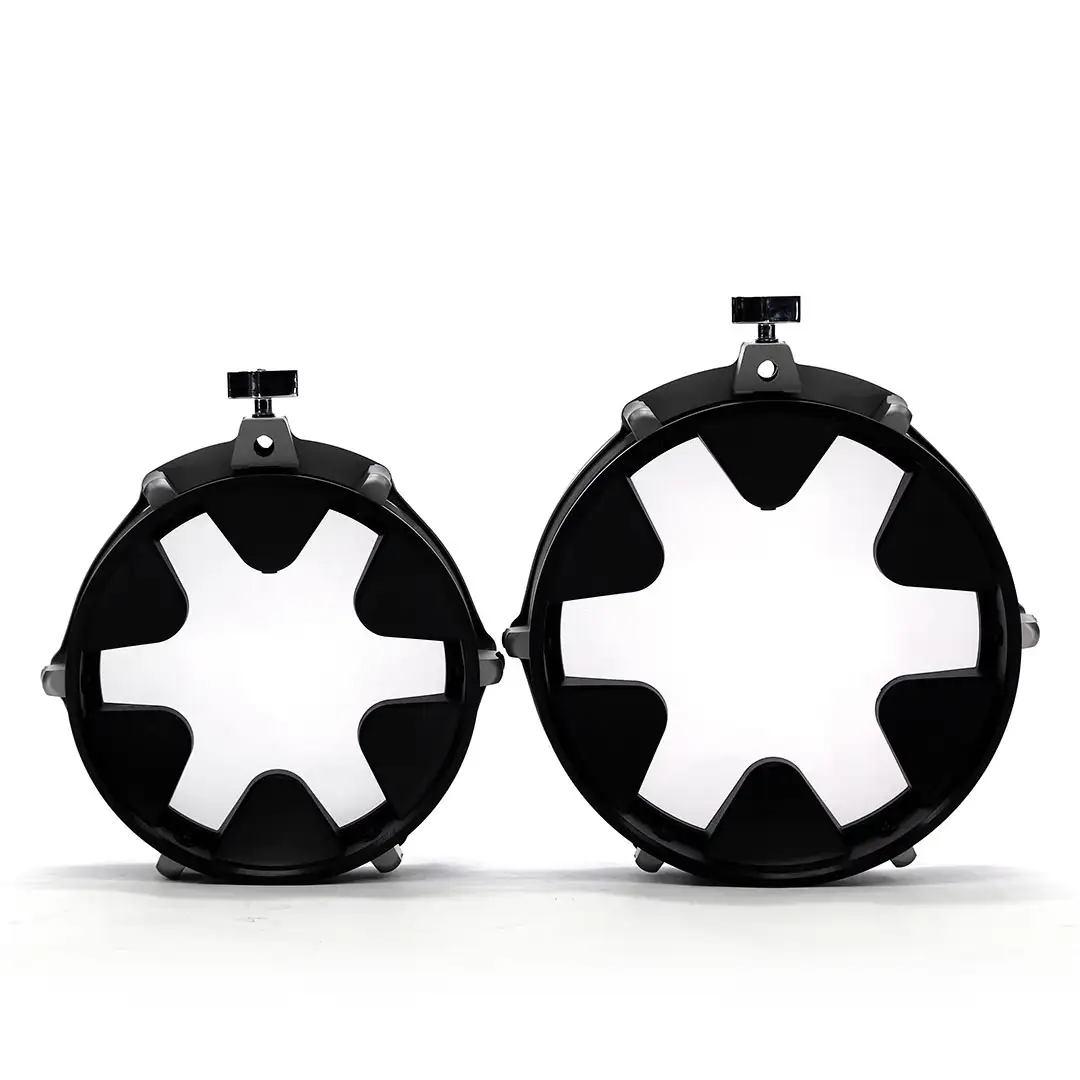

Monocoque Drum Shells
- 10 x 3.5″ and 12 x 4″, 6 lugs, 2ply mesh drum heads
- Monocoque FRP shell for stiffness and durability
- Multi-sensor for hotspotless and high-resolution sounding
- Suspended tom mount
Independent Side-Rim
- Easy, intuitive and reliable
- No switch operation required
- Elegant arc design

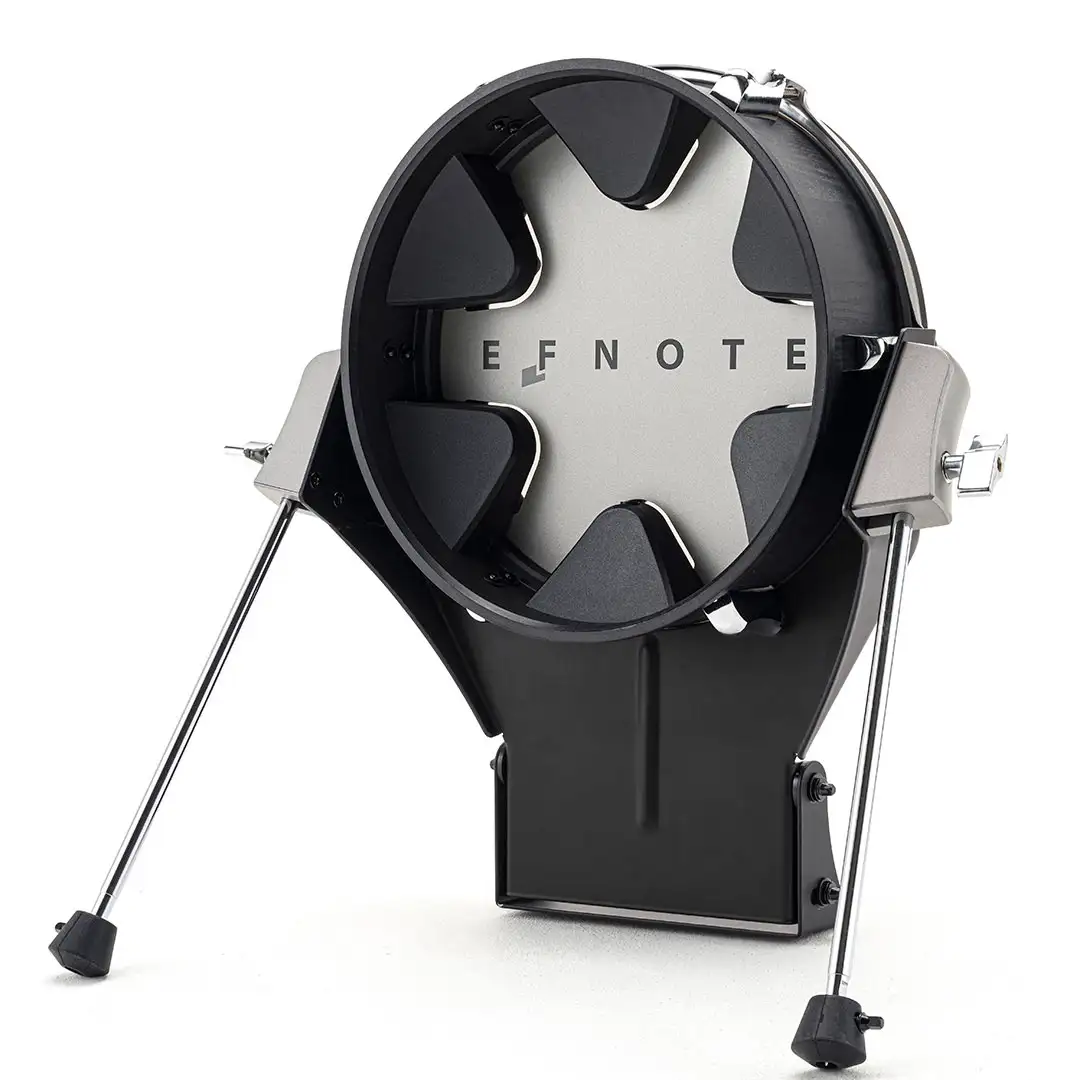

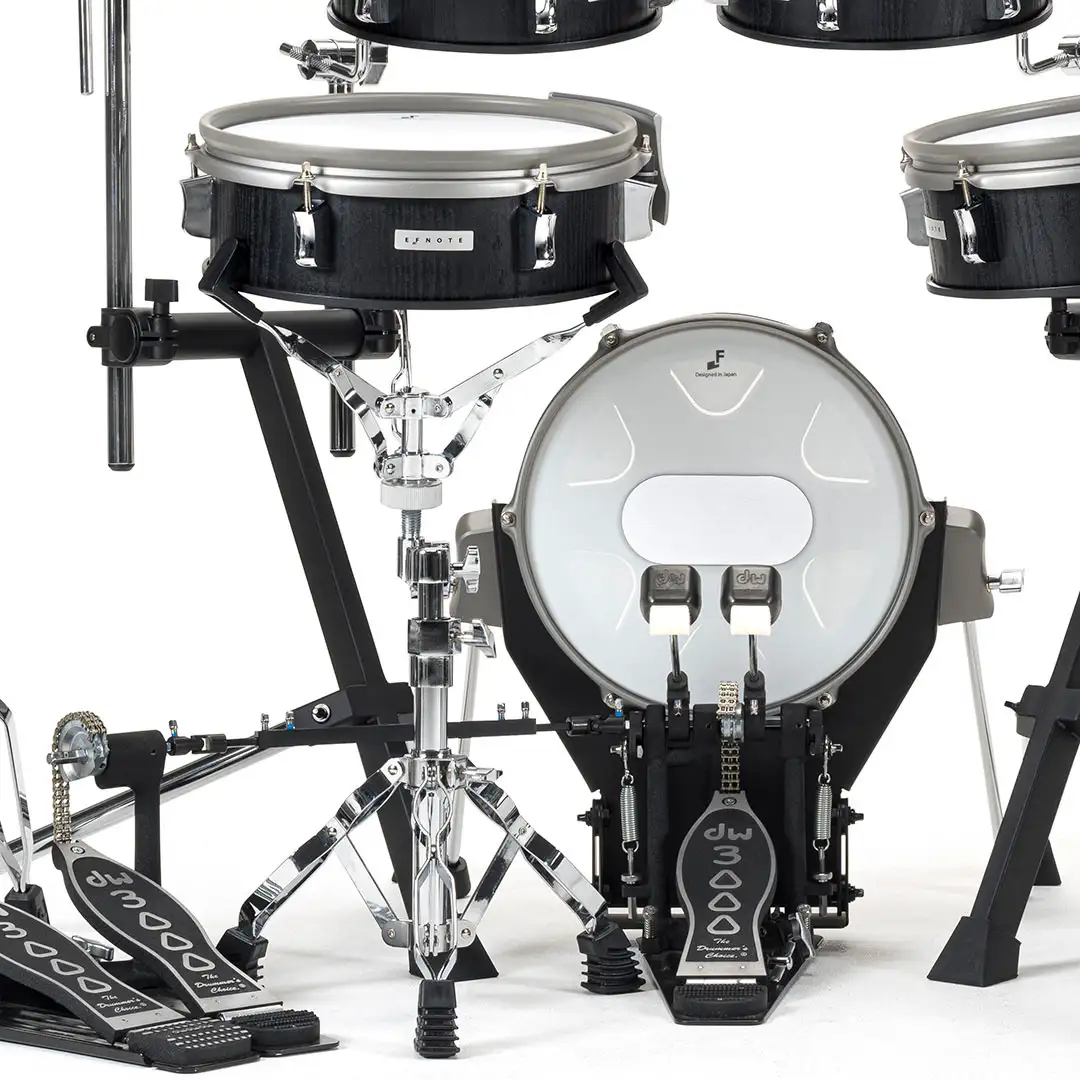

Solid And Stable Kick
- 12 x 4″, 6 lugs, 2ply mesh drum head
- Monocoque FRP shell for stiffness and durability
- Stable multi-sensing for single/double beater(s)
- Rugged spars with rubber/spike tips
Λ (Lambda) Tripods
- Easy and flexible setup with independent rack stand design
- Stable metal tripod stands
■ Sound Module

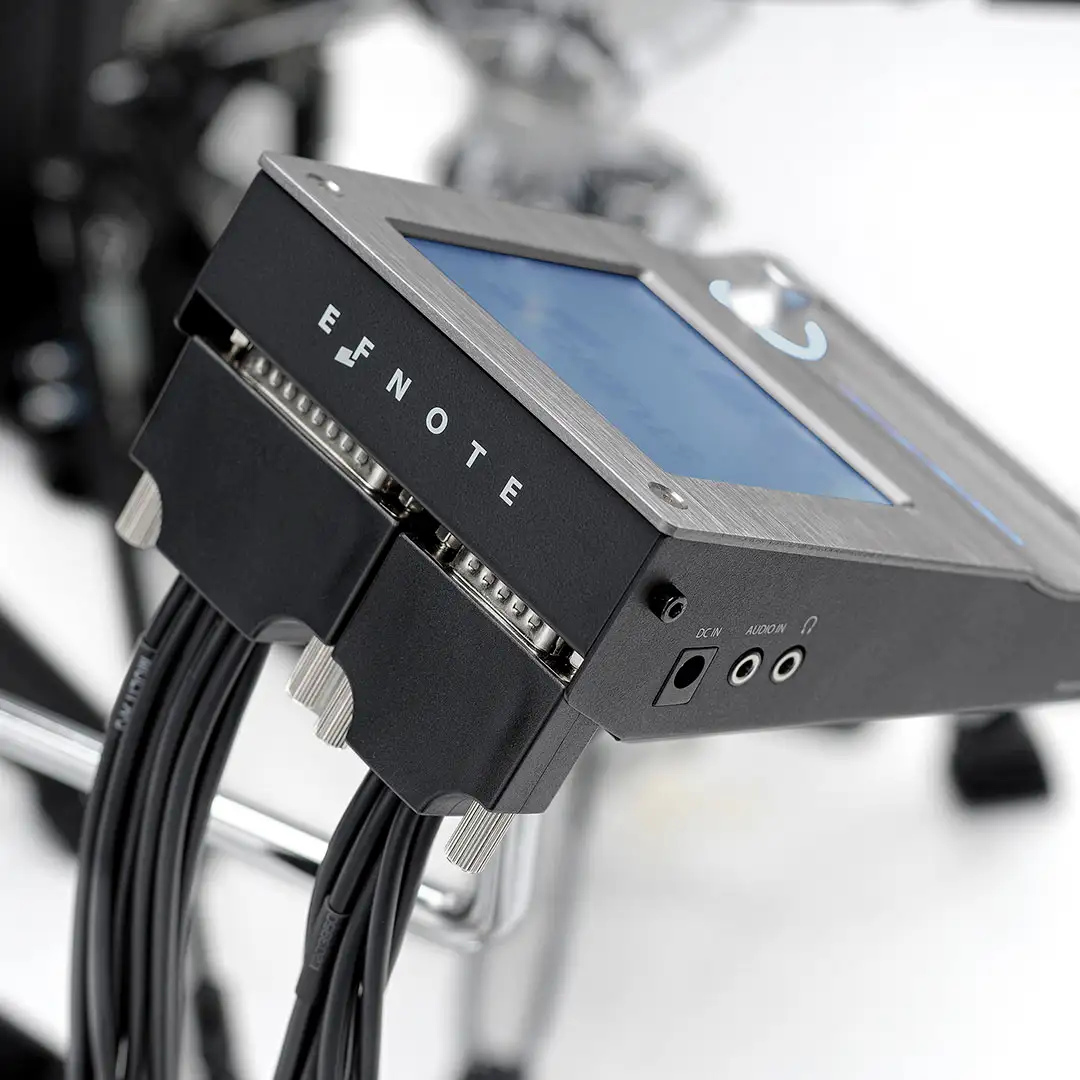

Ultra-Compact Sound Module
- Ultra-small form factor with uncompromised features
- Metal chassis and aluminum finish
- High quality DAC and audio circuit
- High power headphone amplifier
- Touch screen intuitive user interface
ELISE™ Sensing Processor
- Capturing drummer’s intentions from each stroke
- Low latency, wide dynamic-range, consistent and stable sensing
- Optimized for EFNOTE multi-sensor drum/cymbal/hi-hat pads
Full-Scale Acoustic Sound
- Full stereo acoustic drum/cymbal samples recorded by EFNOTE
- Tru-Aco™ sound technology provides real drum/cymbal sound behaviors
- Raw sound without resynthesis
For Training
- Multi-function metronome with beat LED indicator
- Built-in metronome speaker for daily training without headphones
- On-board drum recording function (15 tracks)
- Stroke Analyzer
- Rhythm Box feature provides over 90 basic drum beats
For Recording
- USB 8-ch individual audio outputs with Mac / Windows (ASIO)
- USB 2-ch audio inputs for playback
- Analog 4-ch audio outputs
- USB MIDI in/out with individual MIDI channels
- MIDI output (5-pin DIN)
For Small Gigs
- Setlist feature enables you to configure kit order with tempo for each song
- Kick and Snare can be output individually with analog 4-ch outputs
- Click and Audio-In can be assigned only for headphones
- High-power headphones output
- MIDI output (5-pin DIN)
Stroke Analyzer
- “Stroke Scope” displays your strike points on time-line
- “Accuracy Score” estimates your strike accuracy
Sound Edit
- Tuning, Muffling, 2-band EQs for each pad
- Pad layer function can overlay two sounds
- User Inst Library enables you to store 128 customized instruments
- On-board reverb
- Dedicated level control screen
Flexible Audio Routing
- 10-ch output buses
- Flexible output routing for each pad
- Output assignable click
- Output: 4-ch analog / 8-ch USB
- Input: Analog / Bluetooth / 2-ch USB
Bluetooth®
- Bluetooth audio-in provides you to play along with Spotify™ / YouTube™ with your smartphone
- Bluetooth MIDI
- EFNOTE Tools App for control remotely
Various Optional Components
- Full compatible various Optional Components
- Off-the-shelf drum hardware available
■ EFNOTE Tools App
EFNOTE Tools
– Carry Data With You
You can backup, restore, and share drum kit data and trigger settings with your smartphone.
EFNOTE Tools
– Get New Drum Kits
Visit the official Kit Library to get the new drum kit data.
There you will surely find ideas that inspire your creativity.
EFNOTE Tools
– Adjust Remotely
For small gigs, drummers often cannot rely on FOH engineers.
Now you can remotely adjust the each pad level while playing back your beat with the built-in recorder.
EFNOTE Tools
– Swap Sounds
The Swap feature makes it easy to swap each sound of toms or cymbals.
It helps you changing the set up and editing kits.
■ Specifications
Drum / Cymbal Pads
Kick
EFD-K12P
- Size: 12 x 4″
- Finish: Black Oak-ish
- Zone: Head
- Sensor: Multi
- Head: Low-rebound double-layered mesh with beater patch
- Connector: Head (TRS Phones)
- Features: Angle-adjustable kick pedal attachment

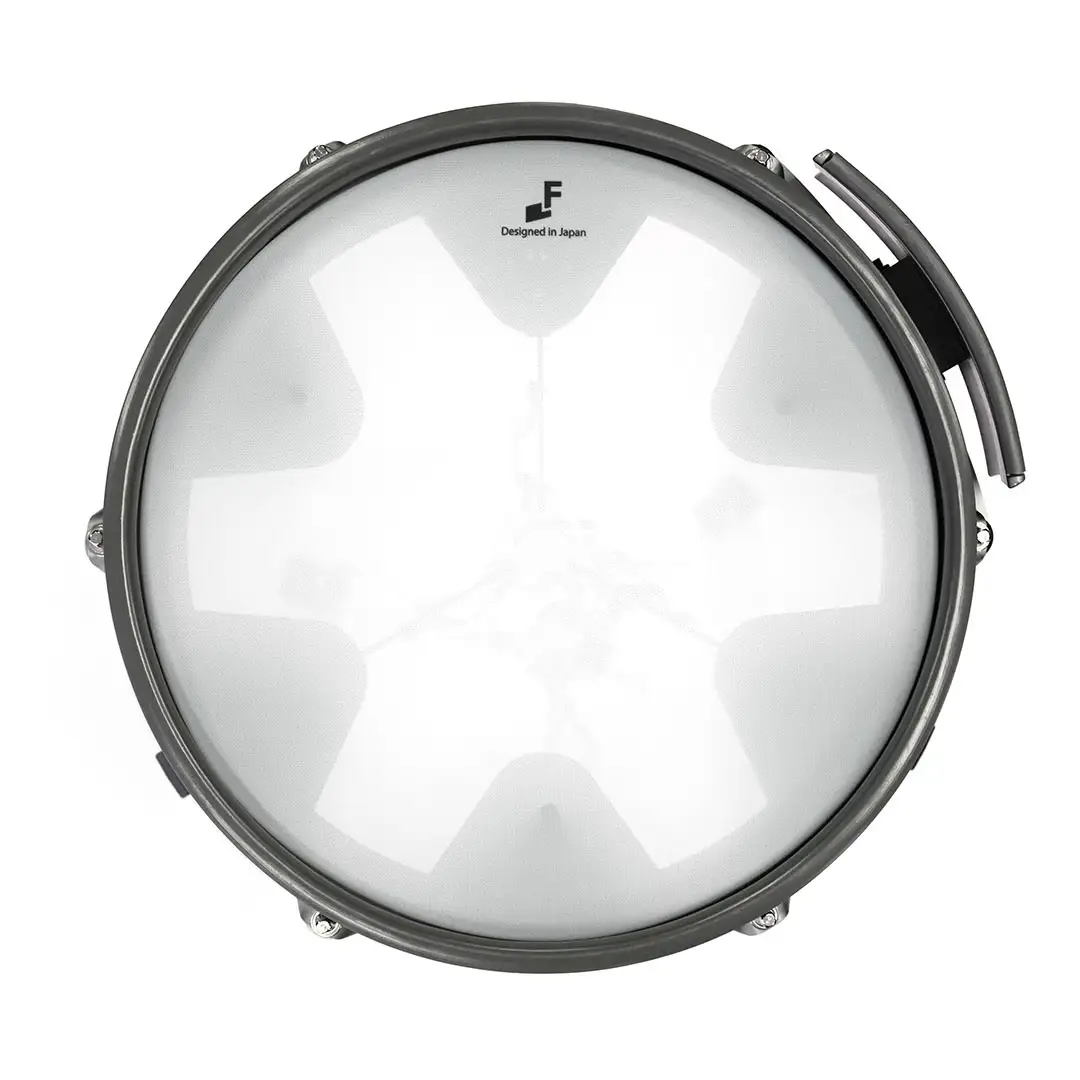

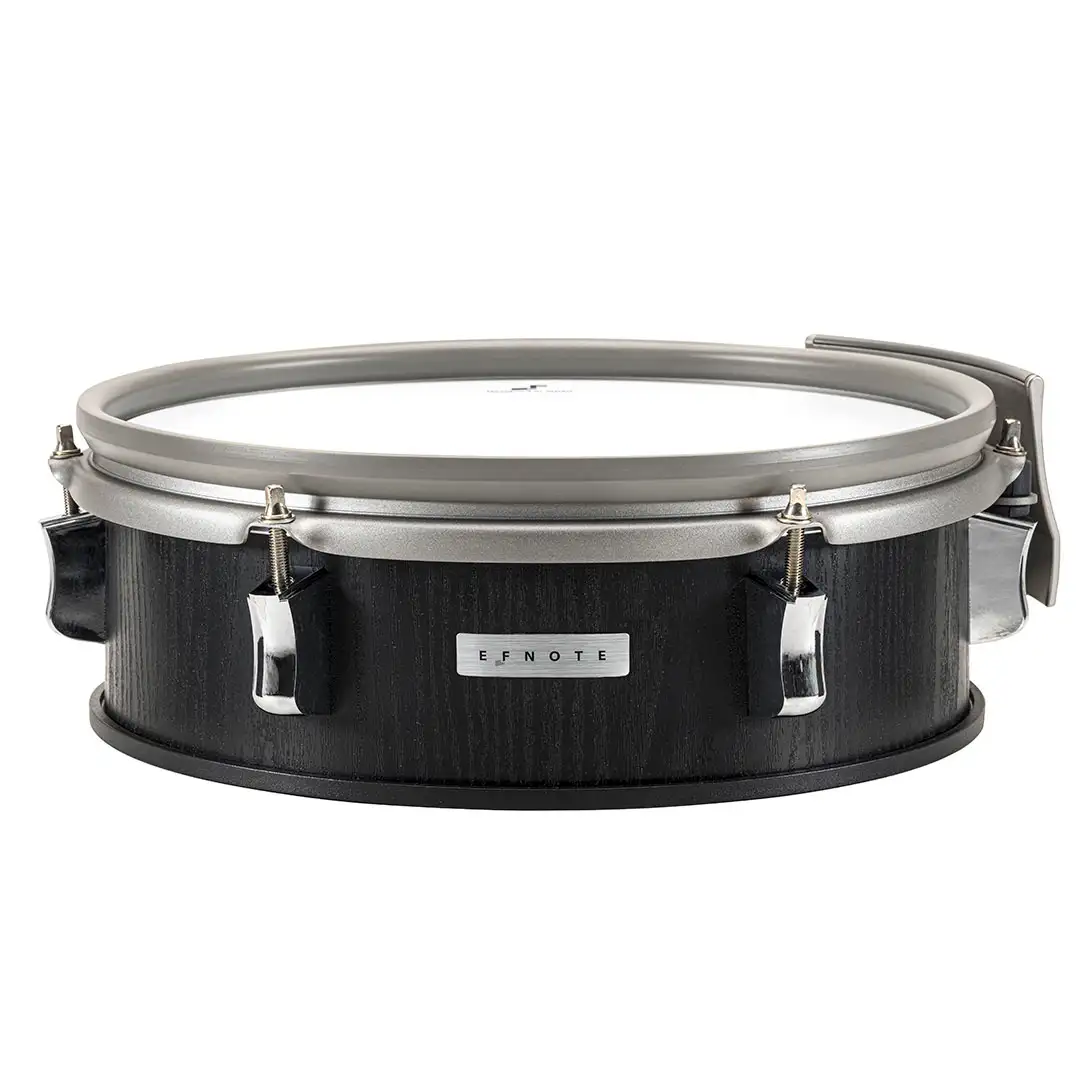

Snare
EFD-S12P
- Size: 12 x 4″
- Finish: Black Oak-ish
- Zone: Head / Rim / Side-Rim
- Sensor: Multi
- Head: Double-layered mesh
- Connector: Head/Rim, Side-Rim (2x TRS Phones)
- Features: Monocoque drum shell, Colored hoop rubber, Side-Rim
Tom 1 / 2
EFD-T10P
- Size: 10 x 3.5″
- Finish: Black Oak-ish
- Zone: Head / Rim
- Sensor: Multi
- Head: Double-layered mesh
- Connector: Head/Rim (TRS Phones)
- Features: Monocoque drum shell, Colored hoop rubber, Suspended tom mount
Tom 3 / 4
EFD-T12P
- Size: 12 x 4″
- Finish: Black Oak-ish
- Zone: Head / Rim
- Sensor: Multi
- Head: Double-layered mesh
- Connector: Head/Rim (TRS Phones)
- Features: Monocoque drum shell, Colored hoop rubber, Suspended tom mount
Hi-Hat
EFD-H14
- Size: 14″ (Top/Bottom)
- Color: Warm gray
- Zone: Bow / Edge / Cup
- Sensor: Multi (360° flat sensing + choke) / Optical
- Connector: 6-pin
- Features: Multi-optical sensor, Tru-motion™ hi-hat, Weight simulation, Fine engraved surface
*General hi-hat stands compatible with φ12.7 mm (1/2″) hole cymbal can be used.
*EFNOTE 3X sound module does not support hi-hat cup zone.
Crash 1 / 2
EFD-C16
- Size: 16″
- Color: Warm gray
- Zone: Bow / Edge / Cup
- Sensor: Multi (360° flat sensing + choke)
- Connector: Bow/Edge, Cup (2x TRS Phones)
- Features: Weight simulation, Fine engraved surface
*In the EFNOTE 3X configuration, the Crash 1 cup is not supported when the Tom 4 is used.
Ride
EFD-C18
- Size: 18″
- Color: Warm gray
- Zone: Bow / Edge / Cup
- Sensor: Multi (360° flat sensing + choke)
- Connector: Bow/Edge, Cup (2x TRS Phones)
- Features: Weight simulation, Fine engraved surface
Sound Module: EFD-5X
Trigger Interface
- 3-Zone: Snare, Crash 1/2*, Ride
- 2-Zone: Tom 1/2/3/4, HH, Crash 3
- 1-Zone: Kick
*Crash 1/2 support 3-zone with using Tom 4/Crash 3 cables.
*In the EFNOTE 3X configuration, the Crash 1 cup is not supported when the Tom 4 is used.
Audio / MIDI Interface
- Line (1/2) Output: 2x TS Phone (+4dBu, Unbalanced)
- Phones (3/4) Output: Stereo Mini-Phone (320 mW + 320 mW @32Ω)
- Audio Input: Stereo Mini-Phone (+2dBu Max)
- USB: Micro-B Type USB 2.0 Hi-Speed
Audio: 8-ch Out (48kHz/24bit) / 2-ch In (48kHz/16bit), Mac/Windows ASIO
MIDI: In/Out - Bluetooth Audio Input
- Bluetooth MIDI In/Out
- MIDI Out: 5-pin DIN
Drum Kits / Instruments
- Preset Drum Kits: 16 (Editable)
- User Drum Kits: 34
- Instruments: Acoustic Drums/Cymbals (Stereo), Percussion (Stereo), eKick/eSnare, Attack Elements
- User Inst Library: 50 (Can be stored customized instruments)
Edit Parameters
- Level, Pan, Tuning, Muffling (for each pad)
- 2-Band EQ (for each pad)
- Ambience Effect (8 types)
- Pad Layer
Dimensions
- 106 (W) x 172 (D) x 47 (H) mm
- 700 g
*Excluding protrusions
Power
- DC 12 V, 500 mA (Nominal) / 800 mA (Max)
Hardware
Tripods
- 3x Lambda Tripod
Snare Drum Stand
- For 12″ to 14″ diameter snare drums
- Geared basket tilter
- Double braced legs
- Tube diameter: φ19.1 mm (3/4″)
- Height adjustment range: 500 — 650 mm
Tom Holder
- 4x Tom Holder Arm
- Geared L-rod tilter
- Knurled carbon steel rod
- L-rod diameter: φ11.5 mm (7/16″)
- Tube diameter: φ22.2 mm (7/8″)
- Height adjustment range: 550 — 900 mm
Cymbal Arm
- 3x Boom Cymbal Arm
- Gearless tilter
- Cable holder
- Tube diameter: φ22.2 mm (7/8″)
- Boom length: 300 mm
- Height adjustment range: 650 — 1250 mm
Sound Module Arm
- 1x Sound Module Arm
- 1x Smartphone Tray
