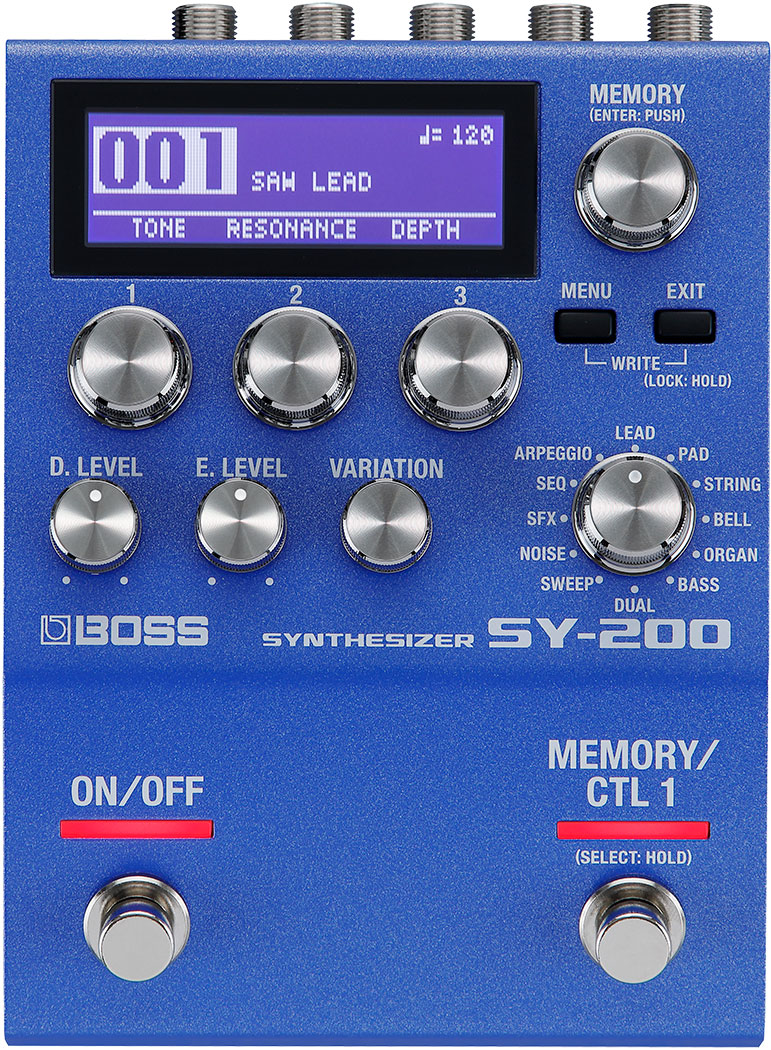

BOSS SY-200 Synthesizer
Original price was: ₹36,793.00.₹33,000.00Current price is: ₹33,000.00.
BOSS SY-1 Guitar Synthesizer – Specifications
|
Category |
Specification |
|---|---|
|
Sampling Frequency |
44.1 kHz |
|
AD/DA Conversion |
24-bit |
|
Processing |
32-bit floating point |
|
Modes |
12 (LEAD, PAD, STRING, BELL, ORGAN, BASS, DUAL, SWEEP, NOISE, SFX, SEQ, ARPEGGIO) |
|
Memory |
128 |
|
Nominal Input Level |
-10 dBu |
|
Maximum Input Level |
+7 dBu |
|
Input Impedance |
2 MΩ (INPUT, RETURN) |
|
Nominal Output Level |
-10 dBu |
|
Maximum Output Level |
+7 dBu |
|
Output Impedance |
1 kΩ (OUTPUT, SEND) |
|
Recommended Load |
10 kΩ or greater |
|
Bypass |
Buffered bypass |
Controls & Interface
|
Component |
Details |
|---|---|
|
Switches |
ON/OFF, MEMORY/CTL 1 |
|
Knobs |
TYPE, MEMORY, 1, 2, 3, D. LEVEL, E. LEVEL, VARIATION |
|
Buttons |
MENU, EXIT |
|
Display |
Graphic LCD (132 × 32 dots, backlit) |
Connectivity
|
Connector |
Type |
|---|---|
|
INPUT / OUTPUT / SEND / RETURN |
1/4” phone type |
|
CTL 2, 3 / EXP |
1/4” TRS phone type |
|
MIDI IN / OUT |
Stereo mini phone type |
|
USB |
USB micro-B (for updates only) |
|
DC IN |
For PSA-series AC adapter |
Power
|
Power Source |
Alkaline battery (AA, LR6) x 3 or AC adaptor (sold separately) |
|---|---|
|
Current Draw |
230 mA |
|
Battery Life |
Approx. 5 hours (with alkaline batteries) |
Included Accessories
|
Items |
|---|
|
Leaflet: “USING THE UNIT SAFELY” |
|
Leaflet: “To obtain the Owner’s Manual” |
|
Alkaline battery (AA, LR6) x 3 |
|
Rubber foot x 4 |
Optional Accessories (Sold Separately)
|
Accessory Type |
Models |
|---|---|
|
AC Adaptor |
PSA-S series |
|
Footswitches |
FS-5U, FS-6, FS-7 |
|
Expression Pedals |
FV-500H, FV-500L, EV-30, Roland EV-5 |
|
MIDI/TRS Cables |
BMIDI-5-35, BMIDI-1-35, BMIDI-2-35, BCC-1-3535, BCC-2-3535 |
Size & Weight
|
Dimension |
Metric |
Imperial |
|---|---|---|
|
Width |
101 mm |
4 inches |
|
Depth |
138 mm |
5-7/16 inches |
|
Height |
63 mm |
2-1/2 inches |
|
Height (with rubber feet) |
65 mm |
2-9/16 inches |
|
Weight |
630 g |
1 lb 7 oz |
|
Weight (with battery) |
700 g |
1 lb 9 oz |
A World of Synth Tones at Your Feet
Offering a universe of rich, analog-inspired polyphonic tones in a small footprint, the SY-200 makes it simple to weave BOSS’s expressive guitar and bass synth technology into all of your musical journeys. Building on the fun, instant-gratification experience of the acclaimed SY-1, this blue inspiration machine features an expanded sound set, more tone-shaping possibilities, and 128 memories for storing your sonic creations. Two onboard footswitches provide deep real-time performance control, and you can take things even further with external footswitches, an expression pedal, and MIDI.
Standard Features
- Advanced BOSS polyphonic guitar synth technology in a streamlined 200 series pedal
- 12 analog-style synth categories with many variations in each (171 sounds total)
- Three adjustable parameters for customizing sounds
- 128 memories for saving and recalling sounds
- Fast sound creation with hands-on controls and large display
- No special pickup required—play rich, dynamic synth tones with any guitar or bass
- Latency-free performance for unrestricted musical expression
- Assignable Memory/CTL 1 switch for memory change, hold, pitch control, and more
- Blend synth and normal guitar sounds with independent level controls
- Parallel send/return loop for easy integration with other pedals on your board
- Selectable modes for globally optimizing the synth engine for guitar or bass
- Supports extended control with up to two external footswitches or an expression pedal
- Full MIDI I/O provided with space-saving 3.5 mm TRS jacks (connection cables available separately)
- Micro USB jack for firmware updates
- Runs on PSA-series AC adaptor or three AA-size batteries
