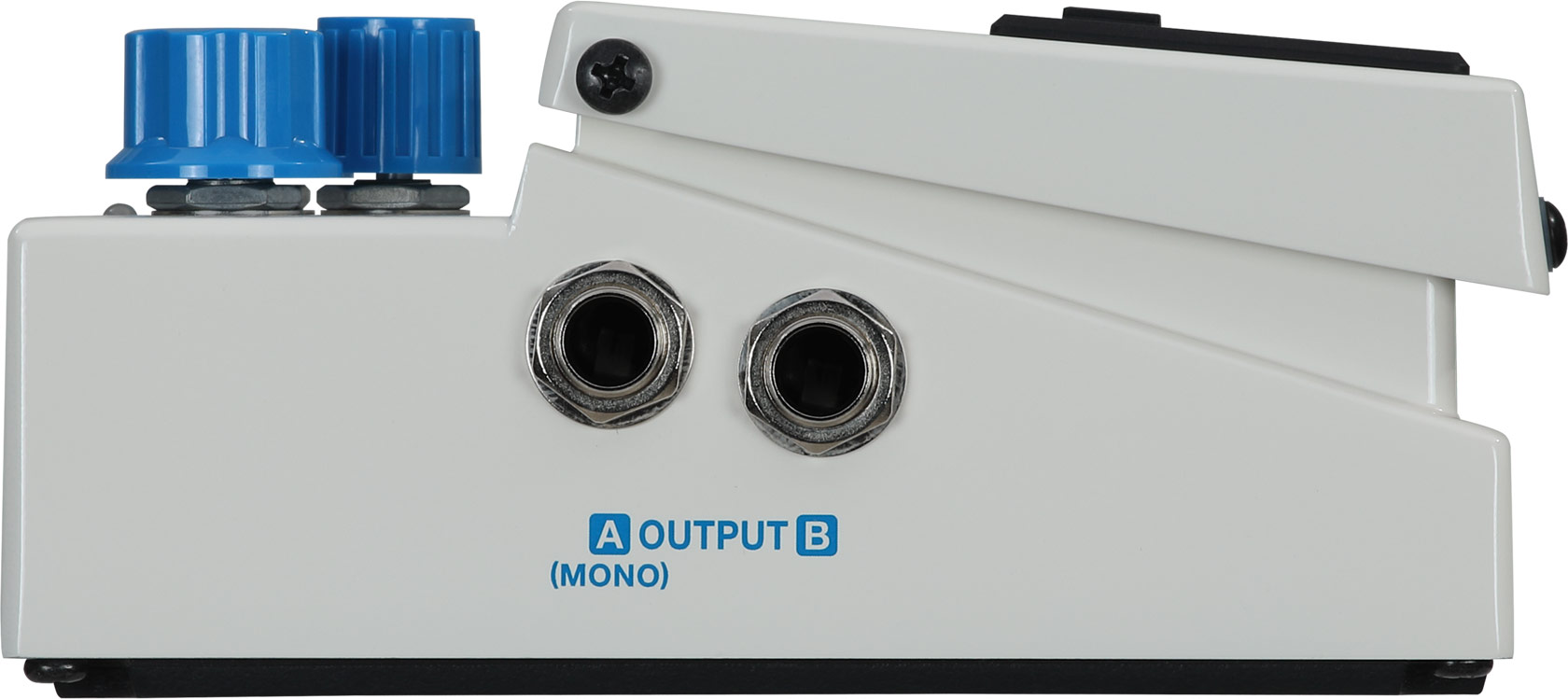

BOSS PX-1 Plugout FX
Original price was: ₹30,402.00.₹27,500.00Current price is: ₹27,500.00.
Specifications
|
Category |
Details |
|---|---|
|
Sampling Frequency |
48 kHz |
|
AD Conversion |
24 bits + AF method |
|
AF Method |
Adaptive Focus Method — proprietary Roland & BOSS technology that vastly improves the signal-to-noise (S/N) ratio of AD and DA converters |
|
DA Conversion |
32 bits |
Input / Output
|
Parameter |
Specification |
|---|---|
|
Nominal Input Level |
INPUT A (MONO), INPUT B: -20 dBu |
|
Maximum Input Level |
INPUT A (MONO), INPUT B: +7 dBu |
|
Input Impedance |
INPUT A (MONO), INPUT B: 1 MΩ |
|
Nominal Output Level |
OUTPUT A (MONO), OUTPUT B: -20 dBu |
|
Maximum Output Level |
OUTPUT A (MONO), OUTPUT B: +7 dBu |
|
Output Impedance |
OUTPUT A (MONO), OUTPUT B: 1 kΩ |
|
Recommended Load Impedance |
OUTPUT A (MONO), OUTPUT B: 10 kΩ or greater |
|
Bypass |
Buffered bypass |
Controls & Indicators
|
Type |
Details |
|---|---|
|
Knobs |
LEFT knob, CENTER knob, RIGHT knob |
|
Switch |
Pedal switch |
|
Indicator |
CHECK indicator |
|
Display |
Graphic LCD (128 × 48 dots) |
Connectors
|
Connector Type |
Description |
|---|---|
|
INPUT A (MONO) / INPUT B jacks |
1/4-inch phone type |
|
OUTPUT A (MONO) / OUTPUT B jacks |
1/4-inch phone type |
|
CTL1,2/EXP jack |
1/4-inch TRS phone type |
|
DC IN jack |
— |
|
MIDI IN jack |
Stereo miniature phone type |
|
USB COMPUTER port |
USB Type-C® |
|
Bluetooth |
Profile Support: GATT (MIDI over Bluetooth Low Energy) |
Power
|
Parameter |
Specification |
|---|---|
|
Power Supply |
AC adaptor or USB power |
|
Current Draw (AC adaptor) |
260 mA |
|
Current Draw (USB) |
420 mA |
Accessories (Included)
|
Included Items |
Details |
|---|---|
|
AC adaptor |
Included |
|
Leaflet |
“USING THE UNIT SAFELY,” “IMPORTANT NOTES,” and “Information” |
|
Roland Cloud Activation Card |
Included |
Options (Sold Separately)
|
Accessory Type |
Models |
|---|---|
|
Footswitch |
FS-5U |
|
Dual Footswitch |
FS-6, FS-7 |
|
Expression Pedal |
FV-500H, FV-500L, EV-30, Roland EV-5 |
|
TRS/MIDI Connecting Cable |
BMIDI-5-35, BMIDI-1-35, BMIDI-2-35, BCC-1-3535, BCC-2-3535 |
Size and Weight
|
Dimension |
Metric |
Imperial |
|---|---|---|
|
Width |
73 mm |
2-7/8 inches |
|
Depth |
125 mm |
4-15/16 inches |
|
Height |
56 mm |
2-1/4 inches |
|
Weight (excluding AC adaptor) |
400 g |
15 oz |
Features
- Timeless BOSS compact pedals in an innovative hardware platform
- Instantly reconfigure the pedal to use one effect from an onboard library of up to 16 types
- Comes with 16 effects: OD-1, SP-1, PH-1, SG-1, CS-1, TW-1, SD-1, DS-1, CE-2, BF-2, PN-2, OC-2, PS-2, VB-2, DD-2, and DF-2
- Additional effects available over time with Model Pass purchases in the BOSS Effect Loader app
- Authentic tone and response, realized with powerful DSP dedicated to one effect at a time
- Stereo input and output
- Support for external control with footswitches or an expression pedal
- Tap tempo support and TRS MIDI input for MIDI clock sync
- Bluetooth® and USB-C® connectivity for loading effect models and more
- Runs on included AC adaptor or USB bus power
- BOSS five-year warranty
