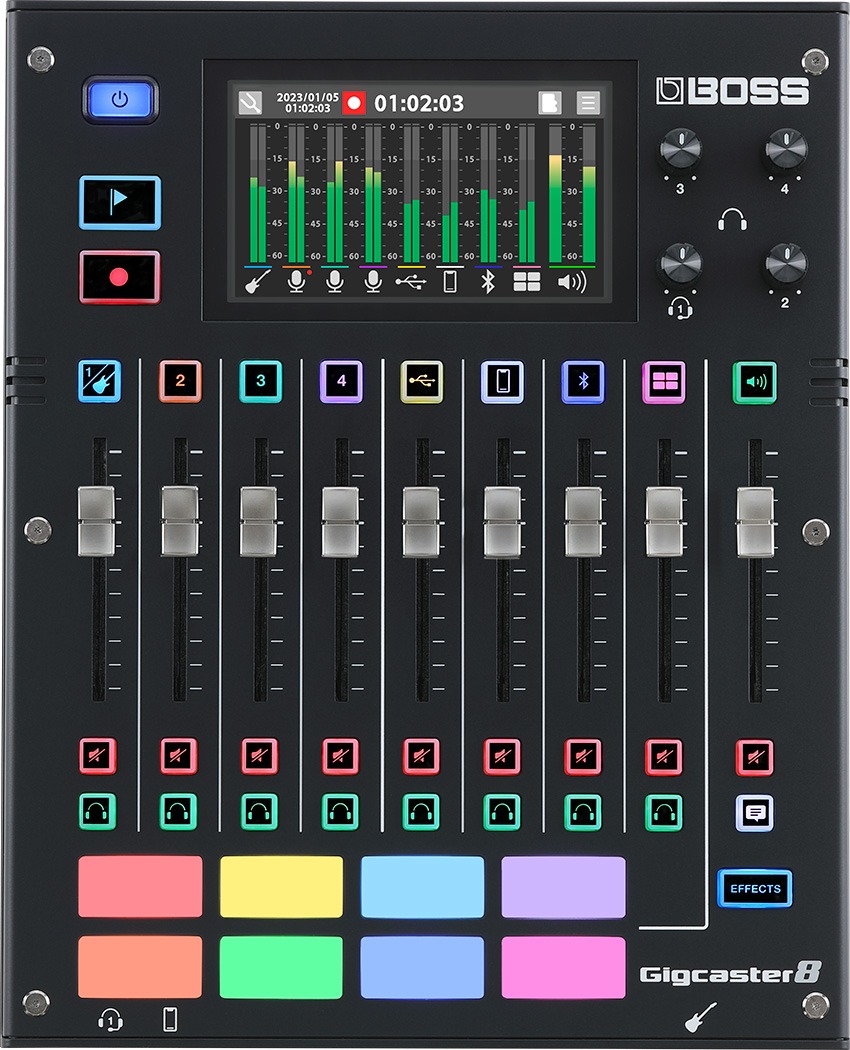

BOSS GIGCASTER 8 Audio Streaming Mixer

₹76,290.00

System & Audio Processing

Feature	Specification
Sampling Rate	48 kHz
AD Conversion	24-bit
DA Conversion	32-bit
Processing	32-bit floating point
USB Audio (Input/Output)	Input: 20 channelsOutput: 14 channels
Bluetooth Support	A2DP, HFP

Recording & Storage

Feature	Specification
Recording Format	BWF (48 kHz, 32-bit float)
Recording Storage	microSD card (sold separately)
Sound Pad Format	WAV (48 kHz, 16-bit linear)
Sound Pad Storage	Internal (16 GB)

Effects & Patch Memory

Feature	Specification
Guitar Patches	200 (User) + 100 (Preset)
Sing Patches	200 (User) + 30 (Preset)
Talk Patches	200 (User) + 30 (Preset)

Channel	Available Effects
Guitar (1 ch)	DISTORTION, PREAMP, EQ, NS, PEDAL FX, FX1–3, DELAY/REVERB
Sing (2 ch)	COMP, ENHANCE, DESS, EQ, NS, PITCH CORRECT, HARMONY, FX1–3, DELAY/REVERB
Talk (4 ch)	COMP, ENHANCE, DESS, EQ, NS, FX1–2
Console (7 ch)	COMP, ENHANCE, DESS, NS, FX
Sound Pad FX (1 ch)	FX Only
Output FX	COMP, REVERB

Input Specifications

Input	Nominal Level	Input Impedance
Guitar Input	-10 dBu	1 MΩ
Input 1–4 (XLR)	-40 dBu	5.6 kΩ
Input 1–4 (TRS)	-10 dBu	27 kΩ
Mobile In	-20 dBu	22 kΩ

🔊

Output Specifications

Output	Nominal Level	Output Impedance
Main Out L/R	-10 dBu	1 kΩ
Phones 1–4	—	47 Ω
Recommended Load (Main)	—	10 kΩ or greater

🖥️

Display & Controls

Feature	Specification
Display	Color Graphic LCD (480 x 272), Touchscreen
Main Controls	CH1–8 Edit, Mute, Monitor, EFFECTS, OUTPUT controls, Talkback, Rec, Mark, Pads 1–8, Headphone knobs

🔌

Connectors

Connector	Type
Guitar Input	1/4″ phone jack
CH1–4 Inputs	Combo XLR/TRS (balanced)
Mobile Input	Stereo mini (CTIA standard)
Main Out L/R	1/4″ phone jacks
Headphone 1	Stereo mini (CTIA standard)
Headphones 2–4	Stereo mini jacks
Foot Switch	1/4″ TRS phone jack
USB Port	USB Type-C (rear)
DC IN	Barrel-type jack for AC adapter

⚡

Power & Accessories

Feature	Specification
Power Supply	AC Adapter (PSD series) / USB Bus Power
Current Draw	1.8 A (with phantom power), 1.6 A (without)
Included Accessories	AC Adapter, Owner’s Manual, Safety Leaflet
Optional Accessories	FS-5U, FS-6, FV-500L/H, EV-5, GA-FC, GA-FC EX

Add to Wishlist

Add to wishlist

Spread the love

Description
Reviews (0)

All-in-One Audio Hub for Streaming Musicians

Gigcaster 8 is a powerful all-in-one audio command center purpose-built for musicians who livestream and create audio and video content. It delivers all the tools you need for professional sound in a single desktop interface, along with quick-access live control via faders, knobs, eight assignable pads, and a vivid color touchscreen.

Plug in a guitar or bass and play with flagship-level GT amps and effects. Connect mics and process voices with studio-grade processing from the VE series. Or bring in a keyboard or drum machine using the line inputs. You can mix a total of eight sources as you stream, including background music and sound from a remote guest or student. Adding in external control support, recording to microSD media, and more, Gigcaster 8 is an essential partner for music performers, remote educators, podcasters, and anyone creating music-focused media.

Standard Features

All-in-one USB interface solution designed for online musicians, music educators, podcasters, and music-focused content creators
Premium sound quality with 32-bit floating-point processing and 48 kHz sampling rate
Eight-channel audio mixer and numerous sound-shaping tools
High-impedance input for direct connection of a guitar or bass
Four XLR/TRS combo jacks for mics and electronic instruments
Mic inputs feature phantom power and high-grade preamps with low noise and wide gain range (+70 dB)
Flagship-quality BOSS amps and effects derived from the GT-1000
Dedicated vocal effects, harmony, and voice transformer functions derived from VE vocal processors
Ready-to-go preset libraries provide optimized sound processing for guitar, bass, singing, and speaking
Dedicated stereo channels for remote guests and mobile device audio streamed via Bluetooth® or a wired connection
4.3-inch color touch display for intuitive control
Independent faders and mute buttons for the eight audio input channels and master output
Eight customizable pads for audio playback and real-time effects control (two modes with eight selectable banks in each)
Talkback function for discrete communication between presenters
Ducking function automatically lowers the background music volume while speaking
Onboard stereo microphone and four headphone outputs with dedicated EQs
Front-panel headphones output supports a headset mic or inline mic
Also works as a 20×14 USB audio interface for multitrack recording in music production software
Record live stereo or multitrack audio (32-bit/48 kHz) to an optional microSD card
Runs on USB bus power* or included AC adaptor
Supports hands-free operation via optional BOSS footswitches, expression pedals, and a GA-FC/GA-FC EX foot controller
Dedicated Gigcaster 8 App for parameter editing, backup, and audio file conversion

*Minimum requirement for USB bus power: 5 V/3 A.
