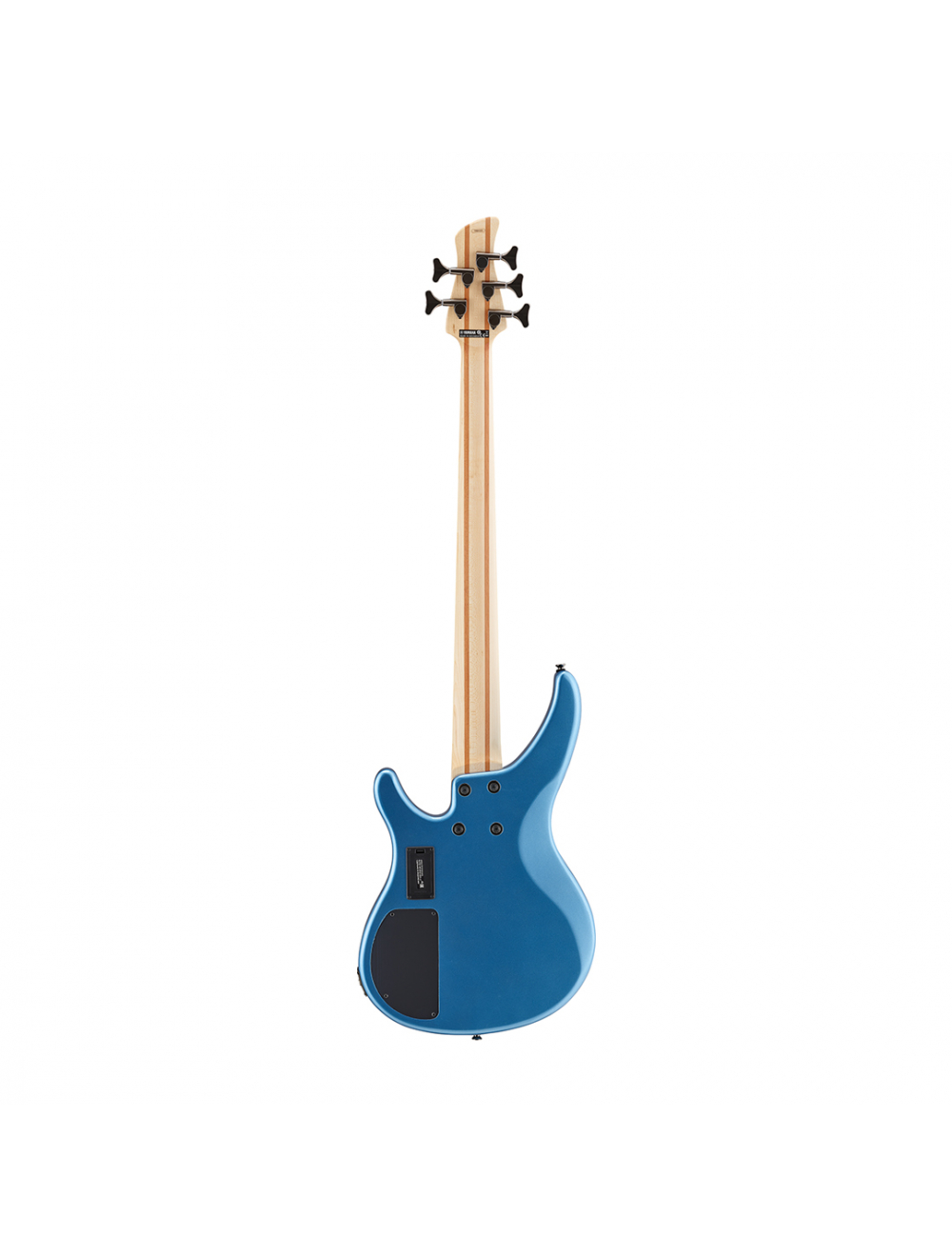

TRBX305
Scale Length	34″ (863.6 mm)
Body
Body Materials	Mahogany
Body Finish	Gloss Polyurethane
Neck
Neck Materials	Maple/Mahogany 5-Piece
Neck Finish	Satin Polyurethane
Fingerboard Materials	Rosewood
Fingerboard Radius	23-5/8″ (600 mm)
Fret wire	Medium
Number of frets	24
Nut materials	Urea
Width @ 0 Fret / 12th Fret	43.0 / 63.4 mm
Thickness @ 1st Fret / 12th Fret	20.5 / 22.5 mm
Electronics
Neck Pickup	Double Coil / Ceramic
Middle Pickup	–
Bridge Pickup	Double Coil / Ceramic
Controls	Master Volume, Pickup Balancer, 2-Band EQ(Bass,Treble), 5-Position Lever Switch for Performance EQ
Pickup Switch	–
Hardware
Bridge	Die-cast
String spacing	18mm
Tailpiece	–
Tuning Machines	Covered / Die-cast
Pickguard	–
Others
String gauge	D’Addario EXL170-5 / 0.045-0.130 (5 strings)
Case	–

FGC-TA
Body Shape		Traditional Western Cutway
Scale Length		650mm (25 9/16”)
Body Length		505mm (19 7/8″)
Total Length		1038mm (40 7/8″)
Body Width		412mm (16 1/4″)
Body Depth		100-118mm (3 15/16″ – 4 5/8″)
Nut Width		43mm (1 11/16″)
String Spacing *		11.0mm
Top Material		Solid Spruce
Back Material		Mahogany
Side Material		Mahogany
Neck Material		Nato
Fingerboard Material		Rosewood
Fingerboard Radius		R400mm (15 3/4″)
Bridge Material		Rosewood
Nut Material		Urea
Saddle Material		Urea
Bridge Pins		Black ABS with White Dot
Tuners		Die-cast Chrome
Body Binding		Cream
Soundhole Inlay		Black + White
Pickguard		Transparent
Body Finish		Gloss
Neck Finish		Matte
Electronics		SYSTEM70 TransAcoustic
Controls		Reverb / Chorus / TA Switch / Line Out Vol
Connections		LINE OUT
Strings		Elixir NANOWEB 80/20 Bronze Light
Accessories		Guitar(1U), Owners Manual(1U), Contact List(2U), Softcase(1U)

RSS20
General	Construction	Set-in
General	Scale Length	24-3/4” (628.6mm)
Body	Body Materials	Top: Maple / Back: Chambered Mahogany
Body	Body Finish	Gloss Polyurethane
Neck	Neck Materials	3-Piece Mahogany, Carbon Reinforcement
	Neck Finish	Satin Polyurethane
	Fingerboard Materials	Rosewood
	Fingerboard Radius	12″ (304.8mm)
	Fret wire	Jumbo Stainless steel
	Number of frets	22
	Nut materials	PPS
	Neck Width @ 0 Fret / 12th Fret	41.9 / 52.0 mm
	Thickness @1st Fret / 12th Fret	21.0 / 23.9 mm
Electronics	Neck Pickup	VH5n: Humbucker / Alnico V
	Middle Pickup	–
	Bridge Pickup	VH5b: Humbucker / Alnico V
	Controls	Master Volume, Master Tone (Push-Pull “Focus Switch”)
	Pickup Switch	5-Position Lever Switch
Hardware	Bridge	Tune-O-Matic
	Tremolo Arm	–
	String spacing	10.5mm
	Tailpiece	Stopbar
	Tuning Machines	Die-Cast
	Pickguard	Swift Blue: 3-Ply Cream, Sunset Burst/Black/Vintage White/Hot Merlot/Flash Green: 3-Ply Black
Others	String gauge	Elixir Nanoweb Light / 0.010-0.046
	Case	Gig Bag
	Special Features	–

APX600
Body Shape		APX Shape
Scale Length		634mm (25”)
Body Length		490mm (19 5/16″)
Total Length		1022mm (40 1/4″)
Body Width		384mm (15 1/8″)
Body Depth		80-90mm (3 1/8″ – 3 9/16″)
Nut Width		43mm (1 11/16”)
String Spacing *		10.0mm
Top Material		Spruce
Back Material		Locally Sourced Tonewood **
Side Material		Locally Sourced Tonewood **
Neck Material		Locally Sourced Tonewood **
Fingerboard Material		Rosewood
Fingerboard Radius		R400mm (15 3/4″)
Bridge Material		Rosewood
Nut Material		Urea
Saddle Material		Urea
Bridge Pins		Black ABS with White Dot
Tuners		Die-cast Chrome(TM29T)
Body Binding		Ivory + Black
Soundhole Inlay		ABS + Abalone
Pickguard		None
Body Finish		Gloss
Neck Finish		Matt (Gloss for BL, VW color variation)
Electronics		SYSTEM65 + SRT Piezo Pickup
Controls		Vol/3-band EQ/Tuner/Mid FQ
Connections		LINE OUT
Strings		.012/.016/.024/.032/.042/.053
Accessories		Hex Wrench, 2 x AA Batteries
Case		None
