TRBX304
Scale Length	34″ (863.6 mm)
Body
Body Materials	Mahogany
Body Finish	Gloss Polyurethane
Neck
Neck Materials	Maple/Mahogany 5-Piece
Neck Finish	Satin Polyurethane
Fingerboard Materials	Rosewood
Fingerboard Radius	10″ (250 mm)
Fret wire	Medium
Number of frets	24
Nut materials	Urea
Width @ 0 Fret / 12th Fret	38.0 / 56.4 mm
Thickness @ 1st Fret / 12th Fret	19.5 / 21.5 mm
Electronics
Neck Pickup	Double Coil / Ceramic
Middle Pickup	–
Bridge Pickup	Double Coil / Ceramic
Controls	Master Volume, Pickup Balancer, 2-Band EQ(Bass,Treble), 5-Position Lever Switch for Performance EQ
Pickup Switch	–
Hardware
Bridge	Die-cast
String spacing	19mm
Tailpiece	–
Tuning Machines	Covered / Die-cast
Pickguard	–
Others
String gauge	D’Addario EXL170SL / 0.045-0.100
Case	–

RSE20
Construction	Set-in
Scale Length	24-3/4” (628.6mm)
Body Materials	Chambered Mahogany
Body Finish	Gloss Polyurethane
Neck Materials	3-Piece Mahogany
Neck Finish	Satin Polyurethane
Fingerboard Materials	Rosewood
Fingerboard Radius	12″ (304.8mm)
Fret wire	Jumbo
Number of frets	22
Nut materials	PPS
Neck Width @ 0 Fret / 12th Fret	41.9 / 52.0 mm
Thickness @1st Fret / 12th Fret	21.0 / 23.9 mm
Neck Pickup	VH3n: Humbucker / Alnico V
Middle Pickup	–
Bridge Pickup	VH3b: Humbucker / Alnico V
Controls	Master Volume, Master Tone (Push-Pull, “Dry Switch”)
Pickup Switch	3-Position Lever Switch
Bridge	Tune-O-Matic
Tremolo Arm	–
String spacing	10.5mm
Tailpiece	Stopbar
Tuning Machines	Die-Cast
Pickguard	Swift Blue / Neon Yellow: 3-Ply Cream, Black / Vintage White / Red Copper: 3-Ply Black
String gauge	Elixir Nanoweb Light / 0.010-0.046
Case	–
Special Features	–

CPX600
Body Shape		Medium Jumbo Cutaway
Scale Length		634mm (25”)
Body Length		511mm (20 1/8″)
Total Length		1043mm (41 5/8″)
Body Width		400mm (15 3/4″)
Body Depth		95-115mm (3 3/4″ – 4 1/2″)
Nut Width		43mm (1 11/16”)
String Spacing *		10.0mm
Top Material		Spruce
Back Material		Locally Sourced Tonewood **
Side Material		Locally Sourced Tonewood **
Neck Material		Locally Sourced Tonewood **
Fingerboard Material		Rosewood
Fingerboard Radius		R400mm (15 3/4″)
Bridge Material		Rosewood
Nut Material		Urea
Saddle Material		Urea
Bridge Pins		Black ABS with White Dot
Tuners		Die-cast Chrome(TM29T)
Body Binding		Ivory + Black
Soundhole Inlay		ABS + Abalone
Pickguard		Transparent
Body Finish		Gloss
Neck Finish		Matt (Gloss for BL color variation)
Electronics		SYSTEM65 + SRT Piezo Pickup
Controls		Vol/3-band EQ/Tuner/Mid FQ
Connections		LINE OUT
Strings		.012/.016/.024/.032/.042/.053
Accessories		Hex Wrench, 2 x AA Batteries
Case		None

PACIFICA212VQM
Construction	Bolt-on
Body
Body Materials	Maple / Alder / Quilted Maple Laminated
Body Finish	Gloss Polyurethane
Neck
Neck Materials	Maple
Neck Finish	Satin Polyurethane
Fingerboard Materials	Rosewood
Fingerboard Radius	13-3/4″ (350mm)
Fret wire	Medium
Number of frets	22
Neck Width @ 0 Fret / 12th Fret	41.0 / 51.4 mm
Thickness @1st Fret / 12th Fret	20.9 / 22.9 mm
Electronics
Neck Pickup	Single Coil/Alnico V
Middle Pickup	Single Coil/Alnico V
Bridge Pickup	Humbucker/Alnico V
Controls	Master Volume, Master Tone(Push-Pull Coil Split)
Pickup Switch	5-Position Lever Switch
Hardware
Bridge	Vintage Style Tremolo with Block Saddle
Tremolo Arm	Φ5(Screw-in)
String spacing	10.5mm
Tailpiece	–
Tuning Machines	Die-Cast
Pickguard	3-Ply White
Others
String gauge	D’Addario EXL120 / 0.009-0.042
Case	–

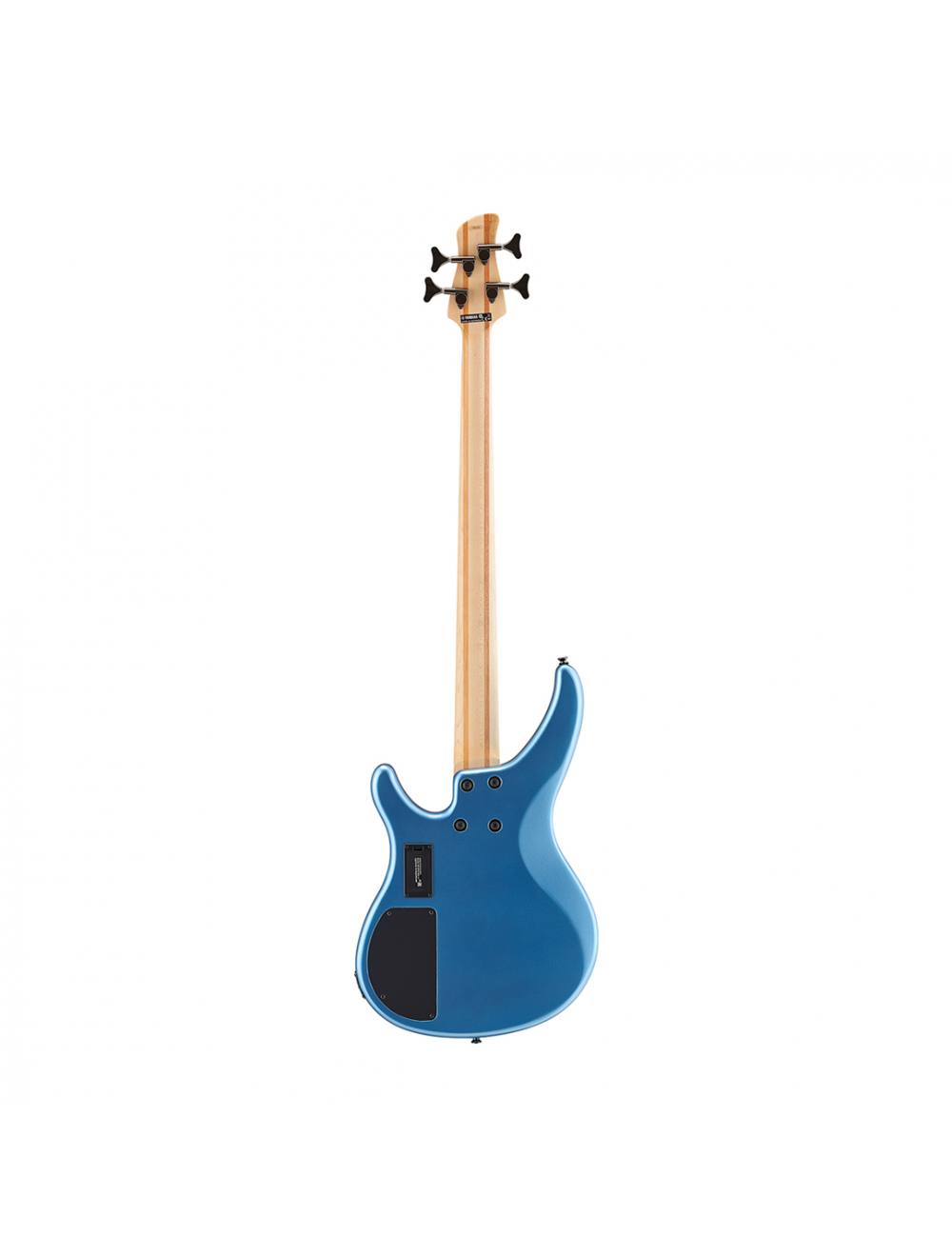

Yamaha TRBX304 Factory Blue Electric Guitar
