Yamaha STAGEPAS 600BT Portable Bluetooth Speaker

107,000.00

Equipped with a Bluetooth input for wireless audio streaming from smartphones or tablets, the STAGEPAS-BT models let you seamlessly play backing tracks for gigs, or set the tone of parties, conferences, or events with the audio playback of your choice.

  • Powered mixer with 2 passive speakers
  • Mixing channels – 10, Input channel functions, Feedback suppressor, 1-Knob Master EQ„,4 mono mic / line + 6 mono / 3 stereo line
  • SPEAKERS OUT (L, R), MONITOR OUT (L/MONO, R), SUBWOOFER OUT (MONO) with auto HPF
  • 680W (340 W + 340 W) (Dynamic), 560W (280W + 280W) (Continuous)
  • Two-way bass-relfex speakersTwo-way bass-relfex speakers Frequency range (-10dB) 55 Hz – 20 kHz LF 10″ (25 cm) cone
    HF 1.4″(3.56 cm) voice coil compression driver
  • Power requirements 100 V – 240 V 50 Hz/60 Hz
    Power consumption 35 W (Idle), 100 W (1/8 Power)
Spread the love

When it comes to portable live sound solutions, it doesn’t get any better than STAGEPAS. With impressive power and sound quality, intuitive control, and a comprehensive array of flexible features, including a new Bluetooth® wireless audio streaming function, this all-in-one PA system builds on the STAGEPAS legacy of providing everything you need to transform any environment into your own personal stage.

STAGEPAS 600BT

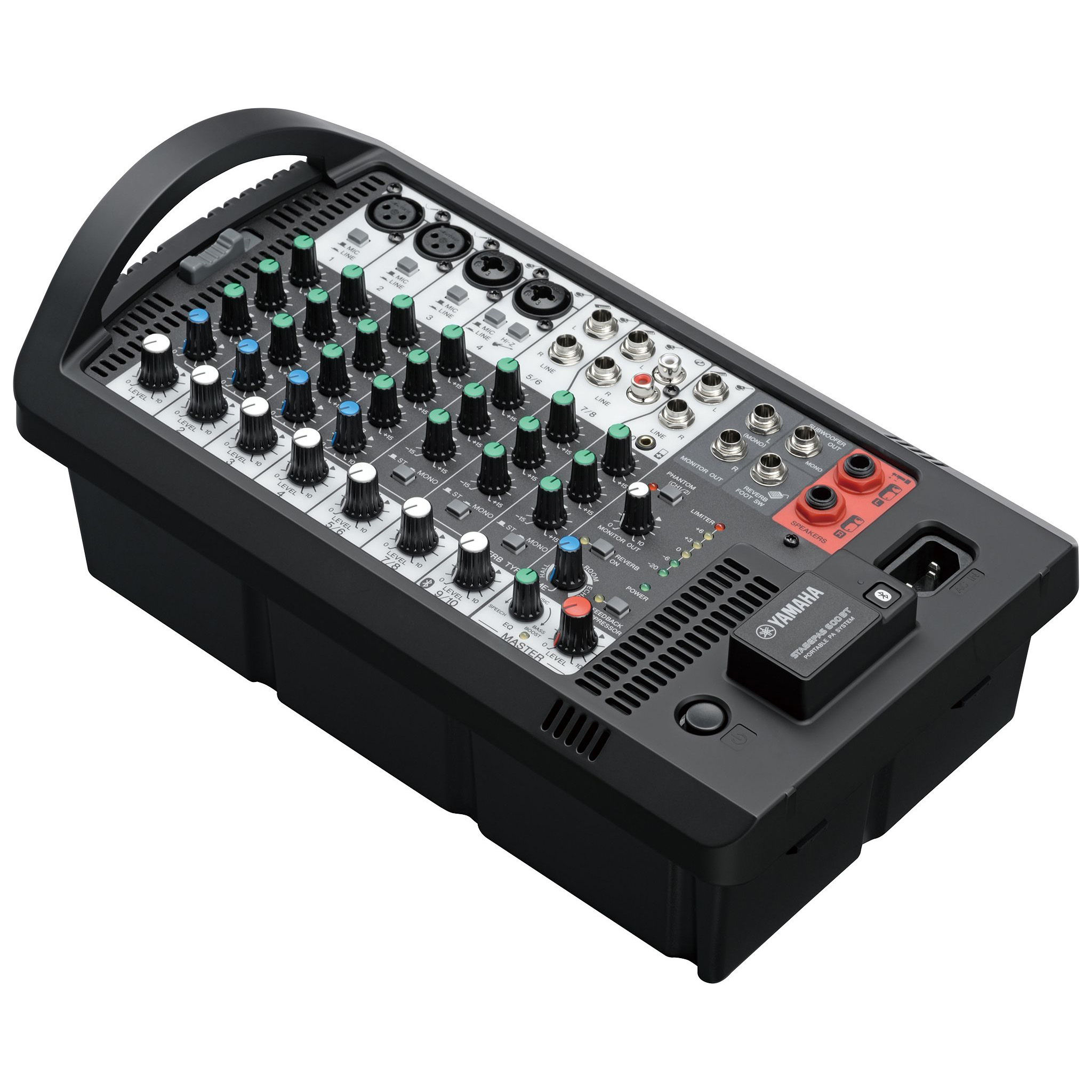

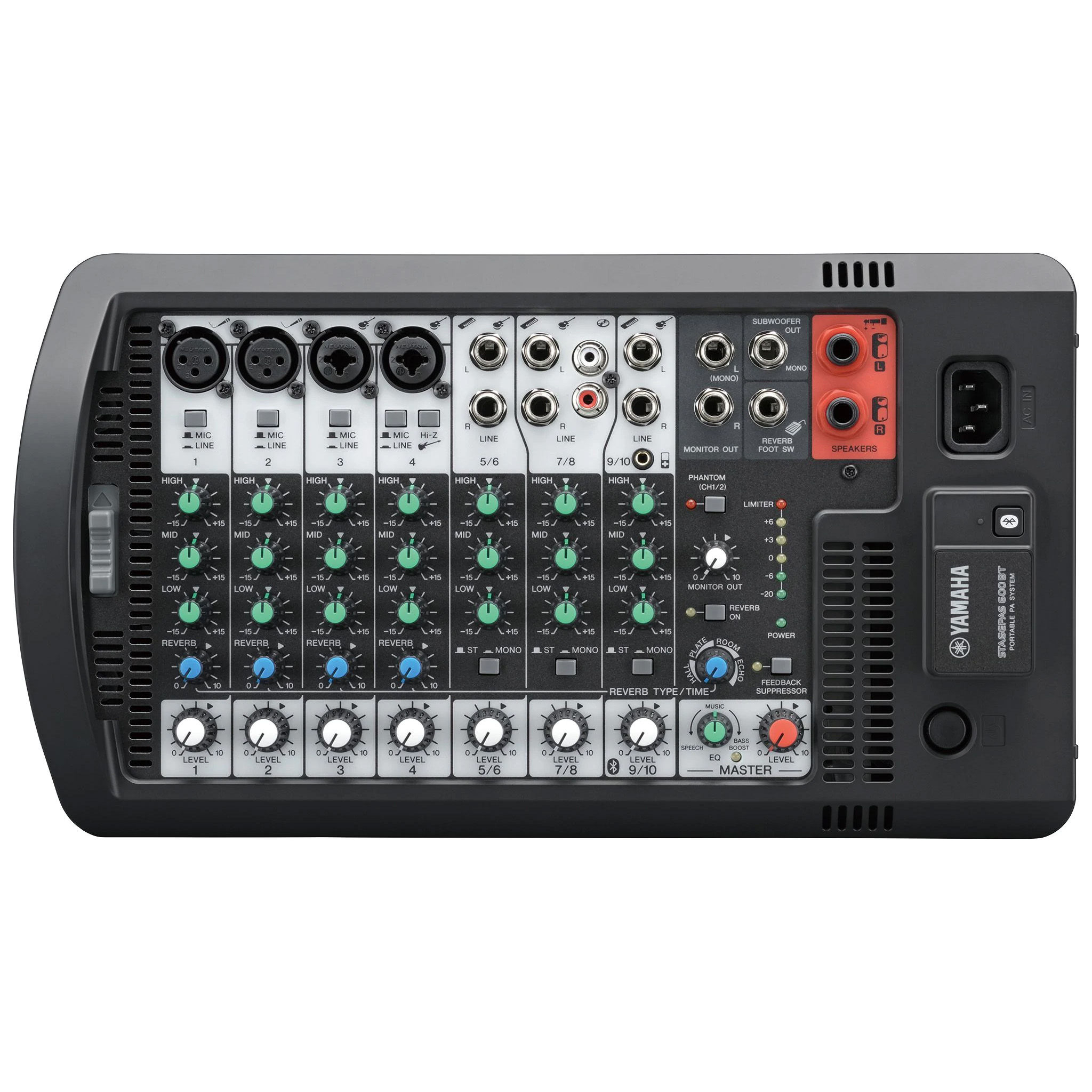

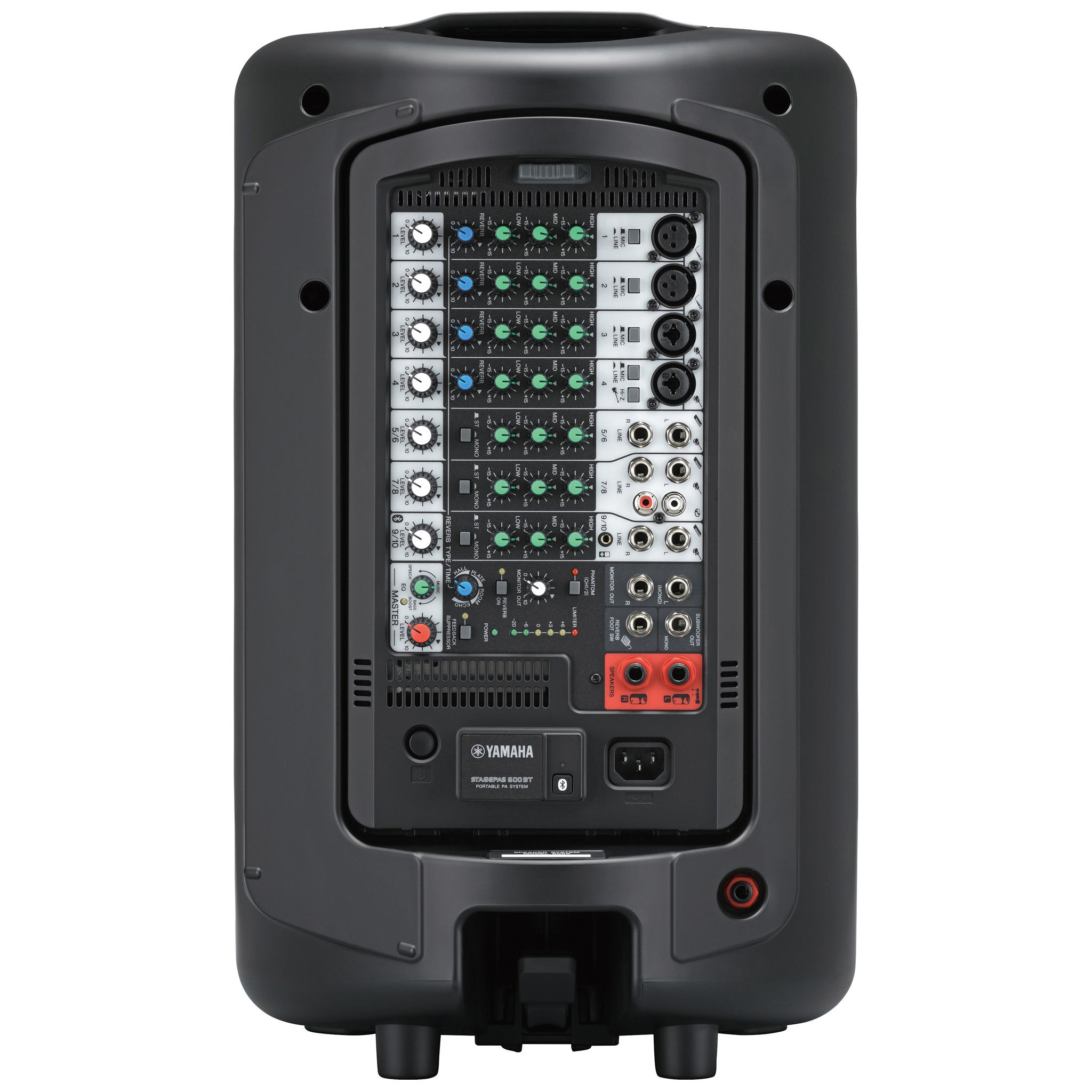

Type Powered mixer with 2 passive speakers
Mixing capability Mixing channels 10
Input channel functions Hi-Z switch: CH4, ST/MONO switch: CH5/6-9/10
Output channel functions Feedback suppressor, 1-Knob Master EQ™
I/O Inputs 4 mono mic / line + 6 mono / 3 stereo line
Phantom power +30V (CH1, 2)
Outputs SPEAKERS OUT (L, R), MONITOR OUT (L/MONO, R), SUBWOOFER OUT (MONO) with auto HPF
Bluetooth Bluetooth Ver.4.1, A2DP v1.2, Maximum Range: Approx. 10 m
Control and others Reverb foot switch
Input Channel Function Hi-Z CH4
EQ HIGH HIGH Shelving: 8 kHz
EQ LOW LOW Shelving: 100 Hz
EQ MID MID peaking: 2.5 kHz
On-board processors DSP SPX digital reverb (4 program, parameter control)
On-board amplifiers Maximum output power @4ohms 680W (340 W + 340 W) (Dynamic), 560W (280W + 280W) (Continuous)

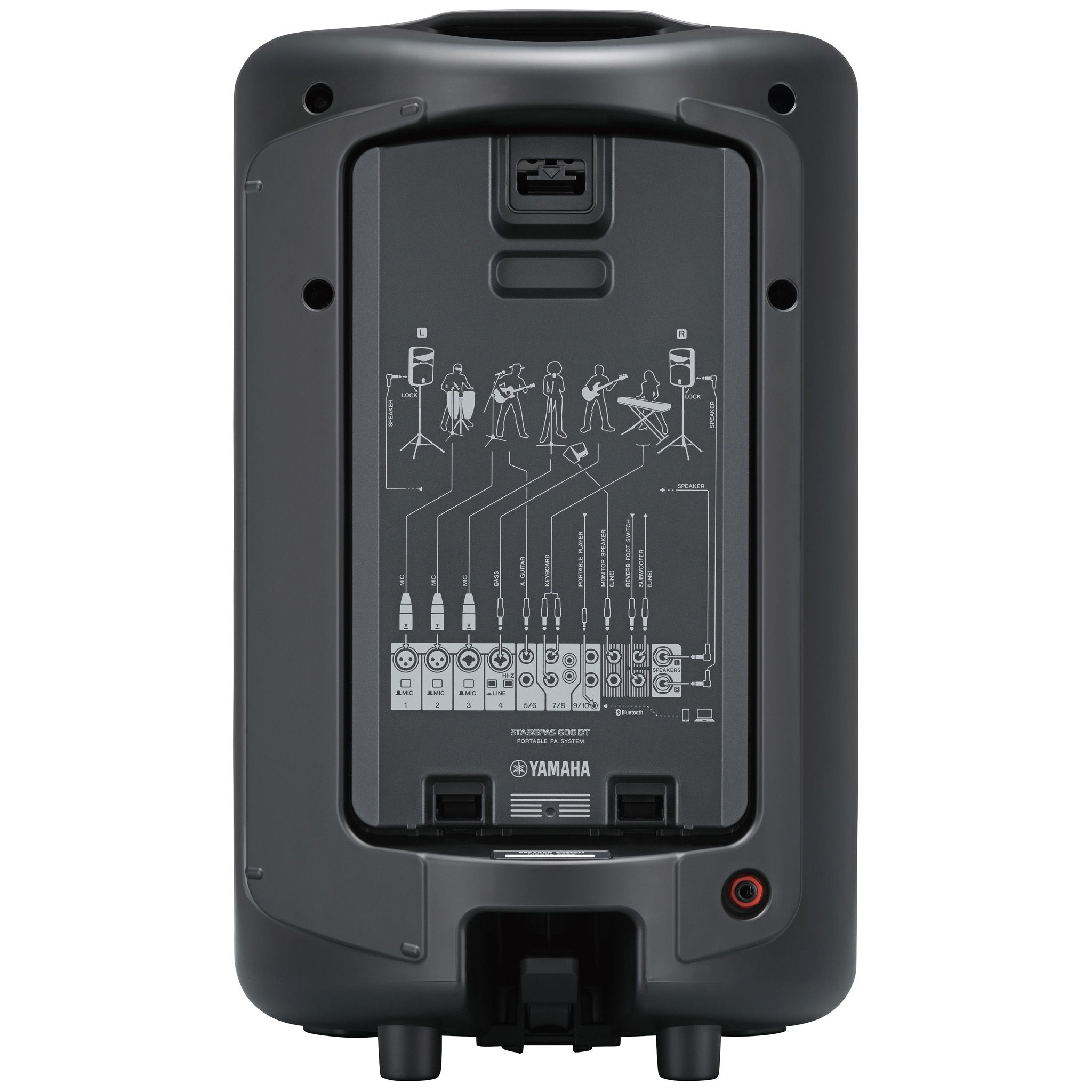

Speaker type Two-way bass-relfex speakers
Frequency range (-10dB) 55 Hz – 20 kHz
Nominal coverage H 90°
V 60°
Floor Monitor Angle 50°
Components LF 10″ (25 cm) cone
HF 1.4″ (3.56 cm) voice coil compression driver
Maximum output level (1m; on axis) 129 dB SPL / speaker
Power requirements 100 V – 240 V 50 Hz/60 Hz
Power consumption 35 W (Idle), 100 W (1/8 Power)
Pole socket 34.8-35.2 mm pole socket with StageLok™
Accessories Cover panel, Power cord (2m), 2 x Speaker cables (6m), 12 x Non-skid pads, 2 x Ferrite Cores, 2 x Cable ties
Options Yamaha BMS10A (mic stand adaptor) for mixer mount, FC5 (foot switch) for reverb ON/OFF
Others Handle: 1 x Top
Dimensions (W x H x D) Speaker 335 x 545 x 319 mm, Mixer 348 x 197 x 135 mm
Weight 25.6 kg (56.4 lbs) (2 x Speaker 10.9 kg + Mixer 3.8 kg)
