RSE20L
Construction	Set-in
Scale Length	24-3/4” (628.6mm)
Body Materials	Chambered Mahogany
Body Finish	Gloss Polyurethane
Neck Materials	3-Piece Mahogany
Neck Finish	Satin Polyurethane
Fingerboard Materials	Rosewood
Fingerboard Radius	12″ (304.8mm)
Fret wire	Jumbo
Number of frets	22
Nut materials	PPS
Neck Width @ 0 Fret / 12th Fret	41.9 / 52.0 mm
Thickness @1st Fret / 12th Fret	21.0 / 23.9 mm
Neck Pickup	VH3n: Humbucker / Alnico V
Middle Pickup	–
Bridge Pickup	VH3b: Humbucker / Alnico V
Controls	Master Volume, Master Tone (Push-Pull, “Dry Switch”)
Pickup Switch	3-Position Lever Switch
Bridge	Tune-O-Matic
Tremolo Arm	–
String spacing	10.5mm
Tailpiece	Stopbar
Tuning Machines	Die-Cast
Pickguard	Swift Blue: 3-Ply Cream, Black: 3-Ply Black
String gauge	Elixir Nanoweb Light / 0.010-0.046
Case	–
Special Features	–

RSE20
Construction	Set-in
Scale Length	24-3/4” (628.6mm)
Body Materials	Chambered Mahogany
Body Finish	Gloss Polyurethane
Neck Materials	3-Piece Mahogany
Neck Finish	Satin Polyurethane
Fingerboard Materials	Rosewood
Fingerboard Radius	12″ (304.8mm)
Fret wire	Jumbo
Number of frets	22
Nut materials	PPS
Neck Width @ 0 Fret / 12th Fret	41.9 / 52.0 mm
Thickness @1st Fret / 12th Fret	21.0 / 23.9 mm
Neck Pickup	VH3n: Humbucker / Alnico V
Middle Pickup	–
Bridge Pickup	VH3b: Humbucker / Alnico V
Controls	Master Volume, Master Tone (Push-Pull, “Dry Switch”)
Pickup Switch	3-Position Lever Switch
Bridge	Tune-O-Matic
Tremolo Arm	–
String spacing	10.5mm
Tailpiece	Stopbar
Tuning Machines	Die-Cast
Pickguard	Swift Blue / Neon Yellow: 3-Ply Cream, Black / Vintage White / Red Copper: 3-Ply Black
String gauge	Elixir Nanoweb Light / 0.010-0.046
Case	–
Special Features	–

CG142S
Body Shape		Yamaha CG Shape
Scale Length		650mm (25 9/16”)
Body Length		490mm (19 5/16″)
Total Length		995mm (39 3/16″)
Body Width		370mm (14 9/16″)
Body Depth		94-100mm (3 11/16″ – 3 15/16″)
Nut Width		52mm (2 1/16″)
String Spacing *		11.8mm
Top Material		Solid Spruce
Back Material		Nato
Side Material		Nato
Neck Material		Nato
Fingerboard Material		Rosewood
Fingerboard Radius		Flat
Bridge Material		Rosewood
Nut Material		Urea
Saddle Material		Urea
Bridge Pins		None
Tuners		Chrome(RM-1157N-50XA)
Body Binding		Black + White
Soundhole Inlay		Decal
Pickguard		None
Body Finish		Gloss
Neck Finish		Matt
Electronics		None
Controls		None
Connections		None
Strings		Trebles:High / Basses:Medium(Yamaha S10)
Accessories		None
Case		None

FG800
Scale Length	650mm (25 9/16”)
Body Length	505mm (19 7/8″)
Total Length	1038mm (40 7/8″)
Body Width	412mm (16 1/4″)
Body Depth	100-118mm (3 15/16”- 4 5/8”)
Nut Width	43mm (1 11/16”)
String Spacing	11.0mm
Top Material	Solid Spruce
Back Material	Nato/Okume
Side Material	Nato/Okume
Neck Material	Nato
Fingerboard Material	Walnut
Fingerboard Radius	R400mm (15 3/4″)
Bridge Material	Walnut
Nut Material	Urea
Saddle Material	Urea
Bridge Pins	Black ABS with White Dot
Tuners	Die-cast Chrome(TM29T)
Body Binding	Black
Soundhole Inlay	Black + White
Pickguard	Tortoise Pattern (Black for BL color variation)
Body Finish	Gloss
Neck Finish	Matt
Electronics	None
Controls	None
Connections	None
Strings	Yamaha FS50BT or D’Addario EXP11
Accessories	Hex Wrench
Case	None

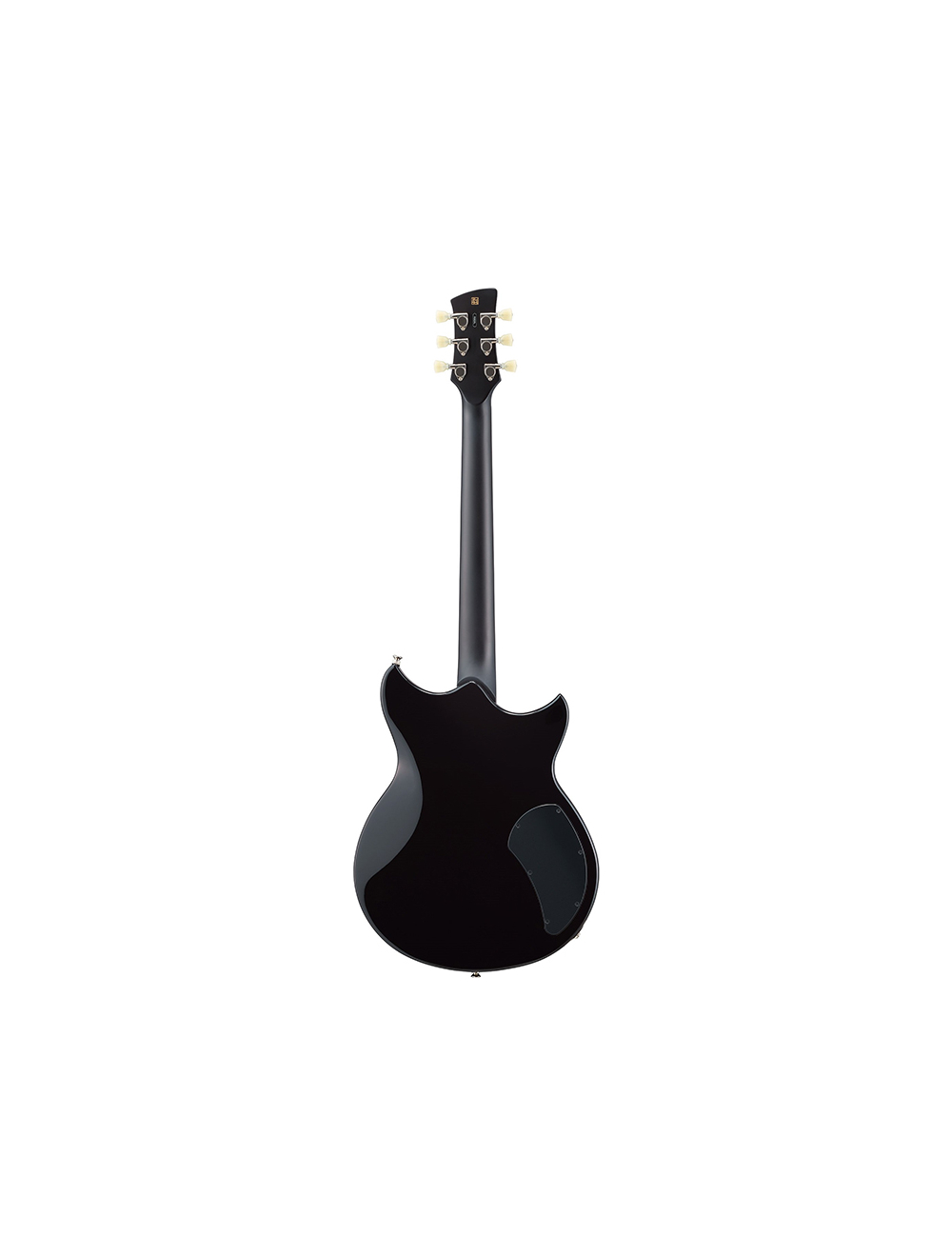

Yamaha Revstar RSE20L black Electric Guitar
