Name: SPL Crimson 3 - Audio Interface, Monitor Controller, Talkback, &amp; Phonitor Matrix
SKU: 8502
Availability: BackOrder

SPL Crimson 3 – Audio Interface, Monitor Controller, Talkback, & Phonitor Matrix

₹103,585.00

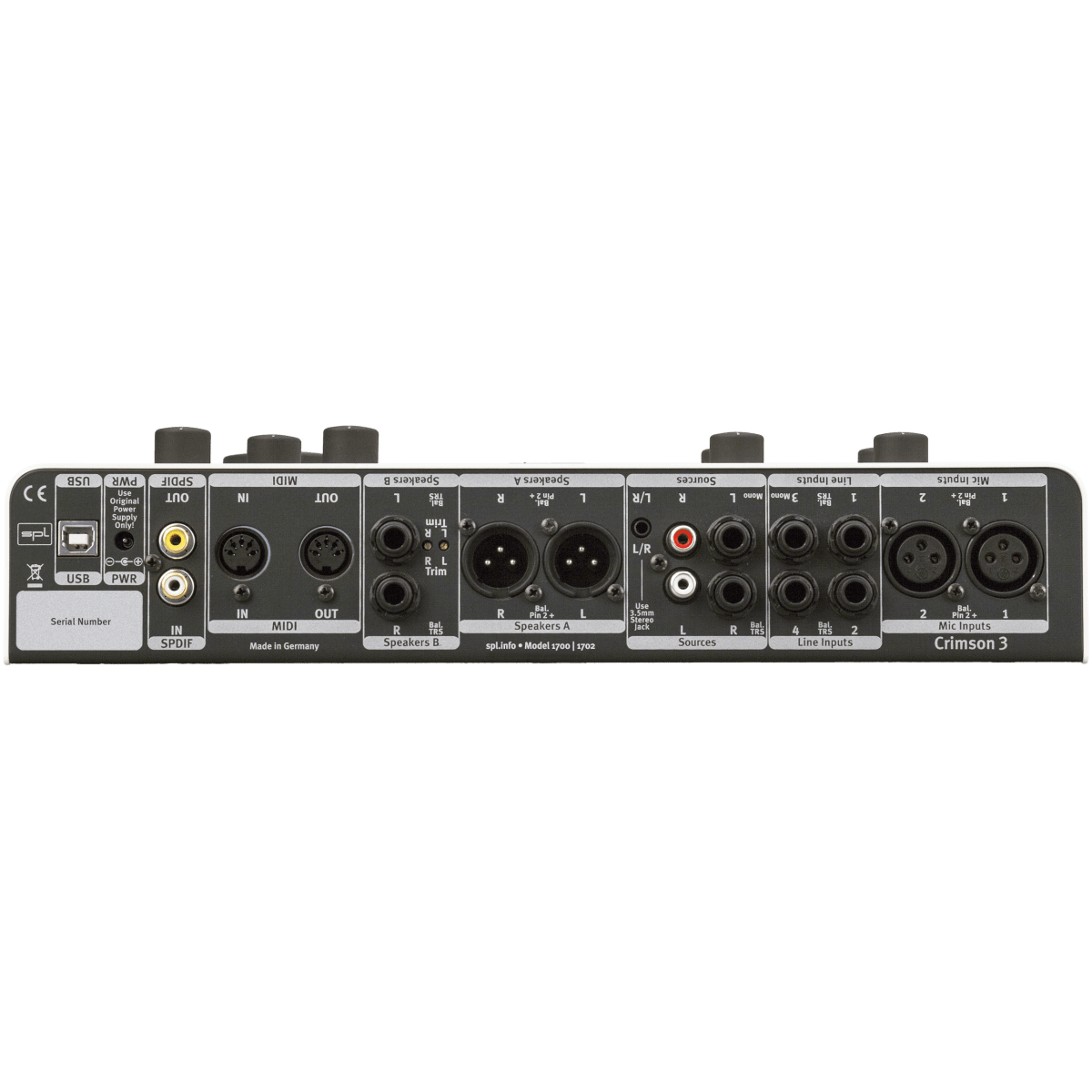

Analog inputs & outputs; XLR (balanced)

Maximum input & output gain

21.5 dBu

Input impedance

20 kΩ

Output impedance

75 Ω

Frequency range (-3 dB)

10 Hz – 100 kHz

THD +N (0 dBu, 10 Hz – 22 kHz))

0.005 %

Noise (A-weighted)

-96 dBu

Crosstalk (1 kHz)

-70 dB

Common mode rejection (1 kHz)

60 dB

Dynamic range

117 dB

Standard Headphones Output, 6.35 mm (1/4″) TRS Jack

Wiring

Spitze = links, Ring = rechts, Schaft = GND

Source impedance

22 Ω

Noise (A-weighted, 600 Ω)

-85 dBu

Internal Linear Power Supply with Toroidal Transformer

Operating voltage for analog audio

+/- 15 V

Operating voltage for relays and LEDs

+ 12 V

Mains Power Supply

Mains voltage (selectable)

230 V AC / 50; 115 V AC / 60 Hz

Fuse for 230 V

T 315 mA

Fuse for 115 V

T 630 mA

Power consumption

max. 10 W

Dimensions & Weight

W x H x D (width x height incl. feet x depth)

215 x 100 x 220 mm

8.46 x 3.58 x 8.66 inch

Unit weight

2.1 kg

4.63 lbs

Shipping weight (incl. packaging)

4 kg

8.82 lbs

Available on backorder

Spread the love

Crimson, speakers, headphones, DAW. Ready is the recording studio.

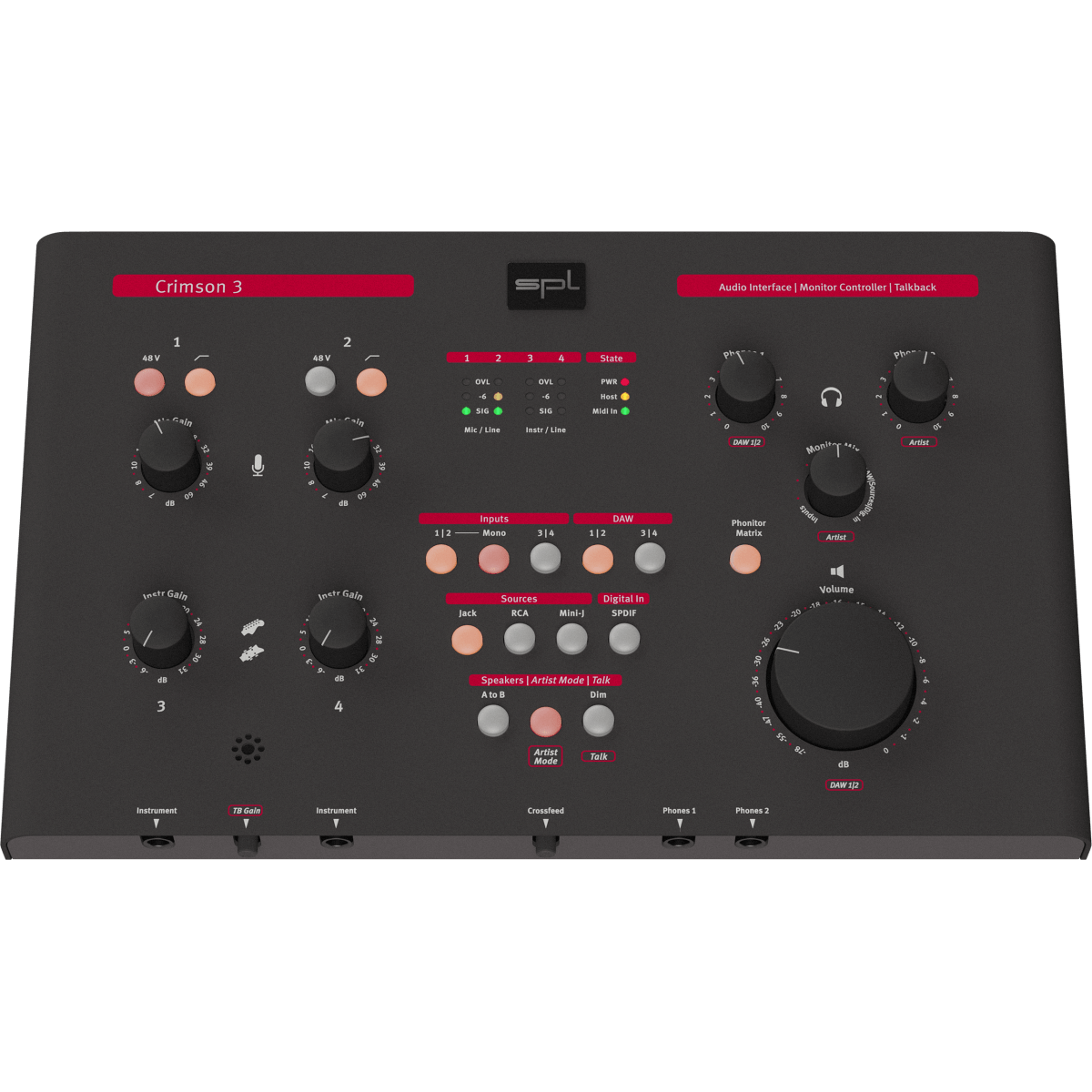

Two Mic Preamps

2 microphone preamplifiers in discrete technology

separate switchable phantom power for condenser microphones

High-pass filter to remove footstep sound and rumble before recording

Two Instrument Preamps

High impedance (Hi-Z) instrument jacks on front side

Talkback

Electret microphone with omnidirectional characteristic

Gain control on the front side

Channel & State LEDs

Traffic light LEDs for the analog inputs

Power (PWR)

Host – Mac/PC, iDevice, Tablet etc. detected

Midi In traffic LED

Analog Monitoring

Inputs & DAW

Monitoring the analog mic/line inputs 1/2 with mono switching

Monitoring the analog instrument/line inputs 3/4

Monitoring the digital workstation inputs 1/2 & 3/4

Source& Digital In

Monitoring the three analog sources or feeds

Monitoring a digital source

Selection for digital input channels 1/2 & 3/4

Speakers | Artist Mode | Talk

Toggling the speaker pairs and the dim function

Activating the Artist Mode and Talk switch

Crossfeed

Adjusting the crossfeed when Phonitor Matrix is activated

Headphone Volume 1 & 2

Independent volume control for two headphones

Monitor Mix

Creation of a monitoring mix between the analog inputs and the analog & digital sources/DAW

Phonitor Matrix

Enables correct mixing on headphones

Removes the super stereo effect

Calculates the interaural levels and time differences

Volume

Control for the loudspeaker monitoring volume

The Revolution

in the headphone amplifier is the Phonitor Matrix, with adjustable crossfeed, thanks to which you can create mixes with headphones that sound the same on speakers.

The Phonitor Matrix in its largest expansion stage has three setting parameters: Crossfeed, Speaker Angle and Center Level.

In the Crimson 3, the center level is preset to -1 dB and the speaker angle to 30°. These are the most commonly used values.

The crossfeed function determines the crosstalk of the channels, the so-called interaural level difference. The intensity of the crossfeed is fully variable.
