Name: Pioneer DJM-A9
SKU: 5583
Price: 269000.00 INR
Availability: BackOrder

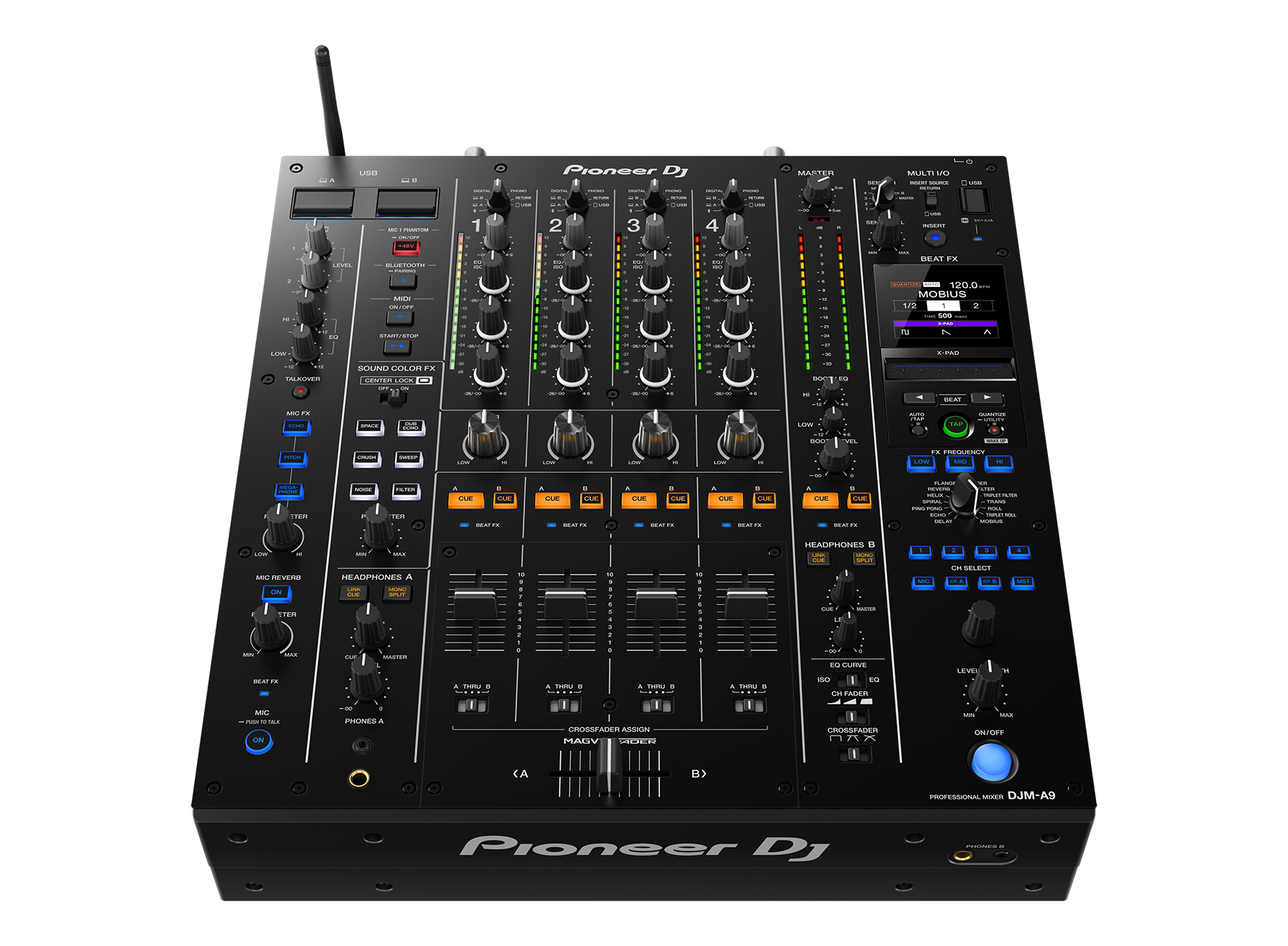

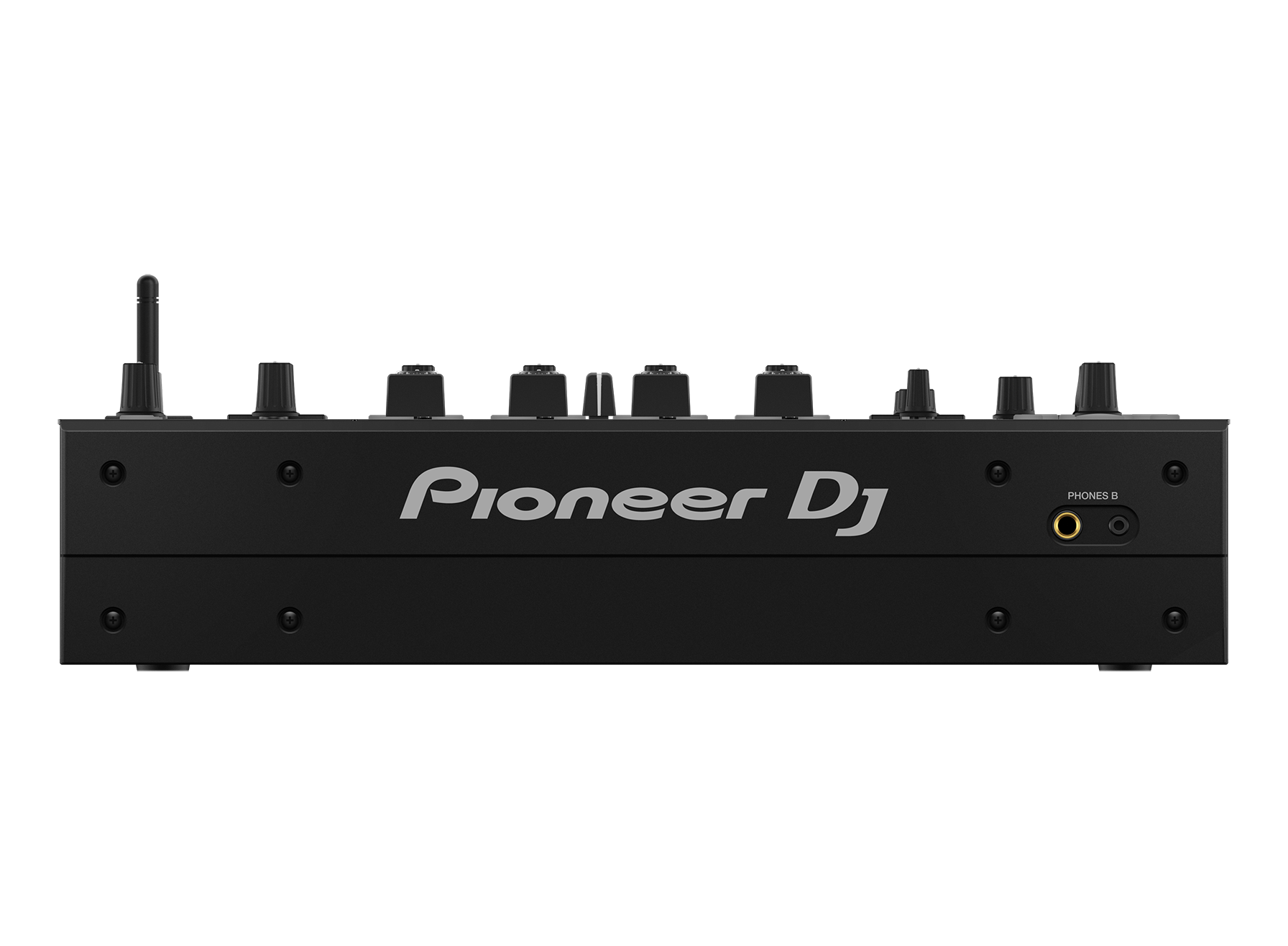

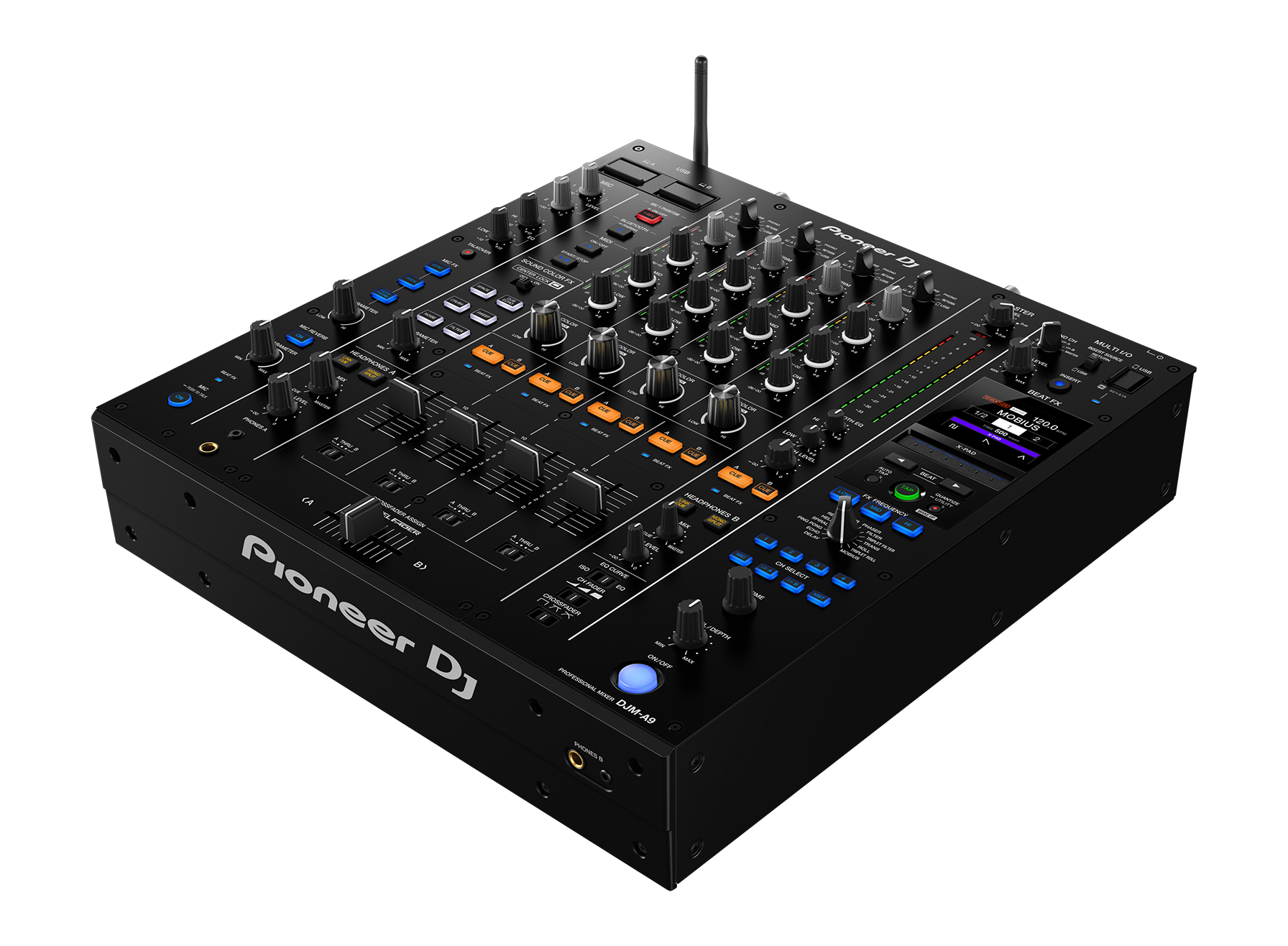

Pioneer DJM-A9

MIDI Control	Full assignable MIDI controls
PRO DJ LINK
Booth EQ
P-Lock Fader Caps
Auto Standby
DVS Control	rekordbox Serato DJ Pro (Need to buy a license or subscription.)
Software System Requirements	Visit rekordbox.com for its specifications. Visit serato.com for its specifications.
Bluetooth Audio Input	Wireless system : Bluetooth Ver.5.0 Maximum transmission distance : Approximately 10 m in unobstructed circumstances (Transmission distances are a guideline.) Frequency band used : 2.4 GHz Modulation method : FH-SS (Frequency Hopping Spread Spectrum) Compatible Codecs : SBC, AAC
Wireless LAN	Supported standards : IEEE 802.11 a/b/g/n/ac Frequency band used : 2.4 GHz / 5 GHz
Accessories	DJM-A9 Power Cord Warranty (for some regions) Quick Start Guide Precautions for Use

Dimensions (W x D x H)	407.4 x 107.9 x 458.3 mm 407.4 x 140.7 x 458.3 mm (when the wireless antenna stands upright)
Sampling Rate	96 kHz
CH input A/D Converter	32 bit
Weight	10.2 kg
MASTER, BOOTH, REC, SEND D/A Converter	32 bit
S/N Ratio Line	105 dB
S/N Ratio Phono	88 dB
S/N Ratio Mic	79 dB
Distortion	< 0.005 % (LINE)

EQ/ISO	3 band
EQ Range	Built-in, switchable 3-band equaliser: -26 dB ~ +6 dB dB

Channels	4
MULTI I/O	USB (Type A)
Sound Color FX	Space Dub Echo Sweep Noise Crush Filter
Beat FX	Delay Echo Ping Pong Spiral Helix Reverb Flanger Phaser Filter Triplet Filter Trans Roll Triplet Roll Mobius
Screen Display
X-PAD
rekordbox Quantize

Crossfader Type	Magvel Fader
Curve Assignable
Fader Curve	3

Mic Connection	XLR / 1/4-inch Combo Jack 1/4-inch TRS Jack
Mic EQ	2 band
Mic EQ Range	-12 dB ~ +12 dB
Phantom power
Microphone Effects	Echo Pitch Megaphone Reverb
Push-to-talk function
Talkover	Dedicated button
Talkover Attenuator

Inputs	4 DIGITAL (Coaxial) 4 LINE (RCA) 4 PHONO (RCA)
Send/Return	1 SEND (1/4-inch TS jack) 1 RETURN (1/4-inch TS jack)
LAN	1
Outputs	1 MASTER (XLR, RCA) 1 BOOTH (1/4 inch TRS Jack) 2 HEADPHONE MONITOR (1/4 inch Jack, mini-jack) 1 REC OUT (RCA) 1 DIGITAL (Coaxial)
USB	1 USB A port 2 USB B ports 2 USB C ports

Available on backorder

Spread the love

KEY FEATURES

Stunning clear sound quality

The next-generation club sound of the DJM-A9 comes from extensive development and fine tuning of existing technology from previous units, plus brand-new components. The channel input section is equipped with an ESS Technology 32-bit high-quality A/D converter for crystal-clear, high-resolution sound, while the master and booth output sections employ 32-bit high-quality D/A converters from the same brand so you can experience sound from the booth monitors that’s the same as the crowd hears on the dancefloor. Even the sound quality of the microphone input and headphone outputs has been improved with carefully selected new parts and design optimization.

Evolved playability

Increased spacing around the EQ knobs gives you the room to twist your fingers and high-grade, bright LEDs in the channel section make it easier than ever to get a visual grasp on sound levels. You can perform more dynamically than ever thanks to the frequency response of the isolators, which have been optimized to make the most of the latest music production traits. And, with higher quality, slicker channel faders than the DJM-900NXS2, plus the third-generation MAGVEL FADER crossfader, you can enjoy silk-smooth mixing and rapid, stable scratching.

Sound Color FX with world’s first Center Lock knob

Turn on the brand-new Center Lock feature and, when you’re using the popular Sound Color FX, each knob will stop turning when you reach the center position. This means you can twist the knob as quickly as you like, taking the effect right up to the maximum of the hi, or down to the minimum of the low parameter, without the risk of going too far and switching to the opposite parameter. When you turn Center Lock off, the Sound Color FX knobs work in the same way as those on the DJM-900NXS2.

Newly advanced Beat FX

A new color display helps you to quickly and accurately understand the status of the selected effect, and it features lighting that corresponds with the X-Pad’s horizontal arrangement, enabling more intuitive control with a simple finger slide. You can use the X-Pad to change the Echo and Ping Pong effects to create a unique analog tape-style sound. And, within the 14 total Beat FX, there are 3 new ones (Mobius, Triplet Filter, and Triplet Roll) you can use to add extra variation to your performances.

Even better, the channel selector is now a dedicated button, enabling you to quickly apply effects to your chosen channel.

Enhanced mic section

The phantom powered input means you can connect a high-quality condenser mic directly to the DJM-A9, a feature never seen before on a DJ mixer. And there are 3 new microphone effects (Echo, Pitch, Megaphone) with a dedicated reverb effect so you can change the sound of your voice and hype up the crowd with your vocals.

It’s quick and easy to turn the mic input on or off with the brand-new Push To Talk button when you want to grab the mic and address the audience. The audio from the mic can be excluded from the recording output if you want, so you can MC for the live crowd but record your mix without vocals.

Expanded connectivity

Connect 2 different PC/Mac systems at the same time thanks to the dual USB Type-B and USB Type-C ports (there are 2 of each) for seamless transitions between DJs and easy back-to-back sets. And, thanks to a Bluetooth® input which you can route to any channel on the DJM-A9, you can wirelessly drop audio tracks into your sets from other devices such as smartphones and use all the mixer’s features and effects to change the sound. The Multi I/O section has an independent channel selector so external effects can be used separately from Beat FX, giving the DJM-A9 true send capabilities. This means you can route the effected sound from an external unit such as an RMX-1000 or a delay pedal to a separate channel instead of the channel it came from.

Dual independent headphone outputs and booth EQ

Plug in your headphones at the same time as another DJ and enjoy the freedom to monitor the channels you want to. With separate cue buttons, volume knobs, and mix balance knobs for each set of headphones, it’s easy for 2 DJs to cue up tracks during changeovers and back-to-back sets. Plus, with the 2-band booth EQ, you can change the high and low frequencies to complement the master output and match the mood in the booth to the feeling on the dancefloor.

Support for the brand-new Stagehand app and built-in Sound Check function

The DJM-A9 is compatible with Stagehand, the industry-first PRO DJ LINK remote management app for front of house teams. Using an iPad connected wirelessly to the mixer via a LAN router (available separately), an engineer can keep an eye on things such as level meters and the DJ’s use of the mixer’s controls, making it easier to maximize the sound system’s settings and run a smoother, more impactful show without needing to interrupt the DJ’s performance or even enter the booth. To download the Stagehand app, visit the App Store.

OTHER FEATURES

rekordbox

Make full use of the low-latency DVS feature in rekordbox for intuitive, smooth scratching. Find out more.

Serato DVS-ready

Use Serato DVS to control and scratch with CDJs or turntables.
*You’ll need to buy a license or subscription.

DJM-REC

Easily record and live stream your performances with DJM-REC. This handy app allows you to share your mixes via platform apps like Twitch, or stream directly to services like YouTube and Mixcloud Live.

Lockable power cord

Relax in the knowledge that the lockable power cord will always stay firmly in place, even if you knock it while connecting or disconnecting other equipment from the mixer.
*In some regions, a non-lockable power cord is supplied.

Video and Lighting app support

With support for TC Supply’s ShowKontrol and the free application PRO DJ LINK Bridge, DJs, event producers, lighting designers, LJs, video creators, and VJs can produce sound and visual coordination with confidence, and create shows that captivate audiences.

Firmware Update Manager

You’ll be automatically notified when firmware updates become available. You can download the Firmware Update Manager here.

Reviews

There are no reviews yet.

Be the first to review “Pioneer DJM-A9”

You must be logged in to post a review.

Width	716 mm
Height	73.4 mm
Soundcard	24 bit/44.1 kHz
Signal-to-Noise Ratio	110 dB
Distortion	< 0.002 % (USB)
Depth	400.3 mm
Power Consumption	DC 12 V, 3 000 mA
Weight	6.7 kg
Frequency Range	20 – 20000 Hz

Channels	4
Deck Control	4
Jog Wheel (Maximum Dimensions)	206 mm
Beat FX	LOW CUT ECHO Echo Multi Tap Delay Spiral Reverb Trans ENIGMA JET Flanger Phaser Stretch Slip Roll Roll MOBIUS (SAW) MOBIUS (TRIANGLE)
Sound Color FX	Space Dub Echo Crush Pitch Noise Filter
Sampler	16slot x 4bank
Hot Cues	16
Pad Modes rekordbox	Hot Cue Pad FX 1 Beat Jump Sampler Keyboard Pad FX 2 Beat Loop Key Shift
Pad Modes Serato	Hot Cue Pad FX Beat Jump Sampler Pitch Play Roll Auto Loop Key Shift

File Formats	ALAC AAC AIFF FLAC MP3 WAV
File Systems	FAT FAT32 exFAT HFS+
Compatible DJ Software	rekordbox Serato DJ Pro djay PRO AI for Mac TRAKTOR PRO 3
MIDI Control
Pro DJ Link
Pro DJ Link Lighting
KUVO ready
Accessories	CDJ-3000 Power cord (V-lock) Digital audio cable Analog audio cable LAN cable Quick Start Guide Precautions for Use Excluding some regions.

Width	329 mm
Height	118 mm
D/A Converter	32 bit
Distortion	< 0.0018 %
Audio Output Level	2.0 Vrms (1 kHz, 0 dB)
Depth	453 mm
Weight	5.5 kg
Frequency Range	4 – 40000 Hz

Jog Dial size	206 mm
Hot Cue
Auto Beat Loop
Beat Jump / Loop move
Beat Sync
Key Sync/Key Shift
Slip Mode
Reverse
Vinyl Speed Adjust

Main Display	9-inch, full-color HD LCD touch screen
On Jog Display (Color LCD)

Playable media	USB storage devices (flash memory/HDD, etc.) SD Card Computers (Mac/Windows PC) iPhone
LAN	1 (1000Base-T)
USB	1 USB A port 1 USB B port
Outputs	1 ANALOGUE (RCA) 1 DIGITAL (Coaxial)

Drive Method	Quartz lock, servo-type, direct drive
Turntable	Aluminium, die-casting diameter: 332 mm
Motor	3-phase, brushless DC motor
Braking System	Electronic brake
Rotation Speed	33⅓ rpm, 45 rpm
Rotation Adjustment Range	±8, ±16, ±50 %
Wow and Flutter	0.1 % or less WRMS (JIS WTD)
Signal-to-Noise Ratio	70 dB
Starting Torque	> 4.5 kgf・cm
Start Time	0.3 sec (at 33⅓ rpm)

Arm Type	Universal type S-shape tone arm Gimbal-supported type bearing structure Static balance type
Overhang	15 mm
Effective Length	230 mm
Tracking Error	Within 3°
Height Adjustment Range	6 mm
Stylus Pressure Variable Range	0-4 g (1 scale 0.1 g)
Proper Cartridge Weight	2.5-12 g (includes mounting materials)
