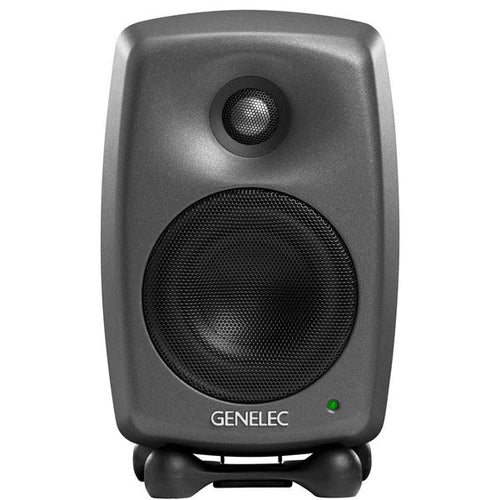

Genelec 8020D 4 inch Powered Studio Monitor – Single
₹68,440.00 Original price was: ₹68,440.00.₹62,000.00Current price is: ₹62,000.00.
8020D Technical Specifications

SPL
100 dB

Amplifier Power
50 W Bass (Class D) + 50 W Treble (Class D)

Frequency Response
56 Hz – 25 kHz (“-6 dB”)

Accuracy of Frequency Response
± 2.5 dB (62 Hz – 20 kHz)

Weight
3.2 kg / 7.1 lb

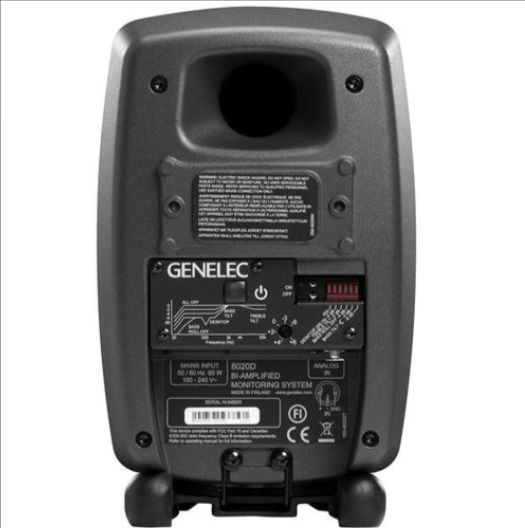

Connections
1 x XLR Analog Input
Frequency Response
62 Hz – 20 kHz (± 2.5 dB)
Low cutoff -6dB
56 Hz
High cutoff -6dB
25 kHz

SPL
Peak SPL
≥107 dB
Maximum peak acoustic output per pair, at 1 m distance with music material.
Short term max SPL
≥100 dB
Maximum short term sine wave acoustic output on axis in half space, averaged from 100 Hz to 3 kHz at 1 m.
Long term max SPL
≥93 dB
Maximum long term RMS acoustic output in same conditions with IEC weighted noise (limited by driver unit protection circuit) at 1 m.
Self-generated noise
Self-generated noise
≤5 dB SPL
Self generated noise level in free field at 1 m on axis.
Weight
Weight
3.2 kg (7.1 lb)
Dimensions
Height
230 mm (9 in)
Height with Iso-Pod
242 mm (9 1/2 in)
Width
148 mm (5 7/8 in)
Depth
142 mm (5 5/8 in)

Enclosure
Enclosure material
Die cast aluminium
Enclosure type
Reflex port
Drivers
Driver type
Cone
Diameter
105 mm (4 1/8 in)
Driver type
Metal dome
Diameter
19 mm (3/4 in)
