RSS20
General	Construction	Set-in
General	Scale Length	24-3/4” (628.6mm)
Body	Body Materials	Top: Maple / Back: Chambered Mahogany
Body	Body Finish	Gloss Polyurethane
Neck	Neck Materials	3-Piece Mahogany, Carbon Reinforcement
	Neck Finish	Satin Polyurethane
	Fingerboard Materials	Rosewood
	Fingerboard Radius	12″ (304.8mm)
	Fret wire	Jumbo Stainless steel
	Number of frets	22
	Nut materials	PPS
	Neck Width @ 0 Fret / 12th Fret	41.9 / 52.0 mm
	Thickness @1st Fret / 12th Fret	21.0 / 23.9 mm
Electronics	Neck Pickup	VH5n: Humbucker / Alnico V
	Middle Pickup	–
	Bridge Pickup	VH5b: Humbucker / Alnico V
	Controls	Master Volume, Master Tone (Push-Pull “Focus Switch”)
	Pickup Switch	5-Position Lever Switch
Hardware	Bridge	Tune-O-Matic
	Tremolo Arm	–
	String spacing	10.5mm
	Tailpiece	Stopbar
	Tuning Machines	Die-Cast
	Pickguard	Swift Blue: 3-Ply Cream, Sunset Burst/Black/Vintage White/Hot Merlot/Flash Green: 3-Ply Black
Others	String gauge	Elixir Nanoweb Light / 0.010-0.046
	Case	Gig Bag
	Special Features	–

RSE20
Construction	Set-in
Scale Length	24-3/4” (628.6mm)
Body Materials	Chambered Mahogany
Body Finish	Gloss Polyurethane
Neck Materials	3-Piece Mahogany
Neck Finish	Satin Polyurethane
Fingerboard Materials	Rosewood
Fingerboard Radius	12″ (304.8mm)
Fret wire	Jumbo
Number of frets	22
Nut materials	PPS
Neck Width @ 0 Fret / 12th Fret	41.9 / 52.0 mm
Thickness @1st Fret / 12th Fret	21.0 / 23.9 mm
Neck Pickup	VH3n: Humbucker / Alnico V
Middle Pickup	–
Bridge Pickup	VH3b: Humbucker / Alnico V
Controls	Master Volume, Master Tone (Push-Pull, “Dry Switch”)
Pickup Switch	3-Position Lever Switch
Bridge	Tune-O-Matic
Tremolo Arm	–
String spacing	10.5mm
Tailpiece	Stopbar
Tuning Machines	Die-Cast
Pickguard	Swift Blue / Neon Yellow: 3-Ply Cream, Black / Vintage White / Red Copper: 3-Ply Black
String gauge	Elixir Nanoweb Light / 0.010-0.046
Case	–
Special Features	–

APX600
Body Shape		APX Shape
Scale Length		634mm (25”)
Body Length		490mm (19 5/16″)
Total Length		1022mm (40 1/4″)
Body Width		384mm (15 1/8″)
Body Depth		80-90mm (3 1/8″ – 3 9/16″)
Nut Width		43mm (1 11/16”)
String Spacing *		10.0mm
Top Material		Spruce
Back Material		Locally Sourced Tonewood **
Side Material		Locally Sourced Tonewood **
Neck Material		Locally Sourced Tonewood **
Fingerboard Material		Rosewood
Fingerboard Radius		R400mm (15 3/4″)
Bridge Material		Rosewood
Nut Material		Urea
Saddle Material		Urea
Bridge Pins		Black ABS with White Dot
Tuners		Die-cast Chrome(TM29T)
Body Binding		Ivory + Black
Soundhole Inlay		ABS + Abalone
Pickguard		None
Body Finish		Gloss
Neck Finish		Matt (Gloss for BL, VW color variation)
Electronics		SYSTEM65 + SRT Piezo Pickup
Controls		Vol/3-band EQ/Tuner/Mid FQ
Connections		LINE OUT
Strings		.012/.016/.024/.032/.042/.053
Accessories		Hex Wrench, 2 x AA Batteries
Case		None

FG800
Scale Length	650mm (25 9/16”)
Body Length	505mm (19 7/8″)
Total Length	1038mm (40 7/8″)
Body Width	412mm (16 1/4″)
Body Depth	100-118mm (3 15/16”- 4 5/8”)
Nut Width	43mm (1 11/16”)
String Spacing	11.0mm
Top Material	Solid Spruce
Back Material	Nato/Okume
Side Material	Nato/Okume
Neck Material	Nato
Fingerboard Material	Walnut
Fingerboard Radius	R400mm (15 3/4″)
Bridge Material	Walnut
Nut Material	Urea
Saddle Material	Urea
Bridge Pins	Black ABS with White Dot
Tuners	Die-cast Chrome(TM29T)
Body Binding	Black
Soundhole Inlay	Black + White
Pickguard	Tortoise Pattern (Black for BL color variation)
Body Finish	Gloss
Neck Finish	Matt
Electronics	None
Controls	None
Connections	None
Strings	Yamaha FS50BT or D’Addario EXP11
Accessories	Hex Wrench
Case	None

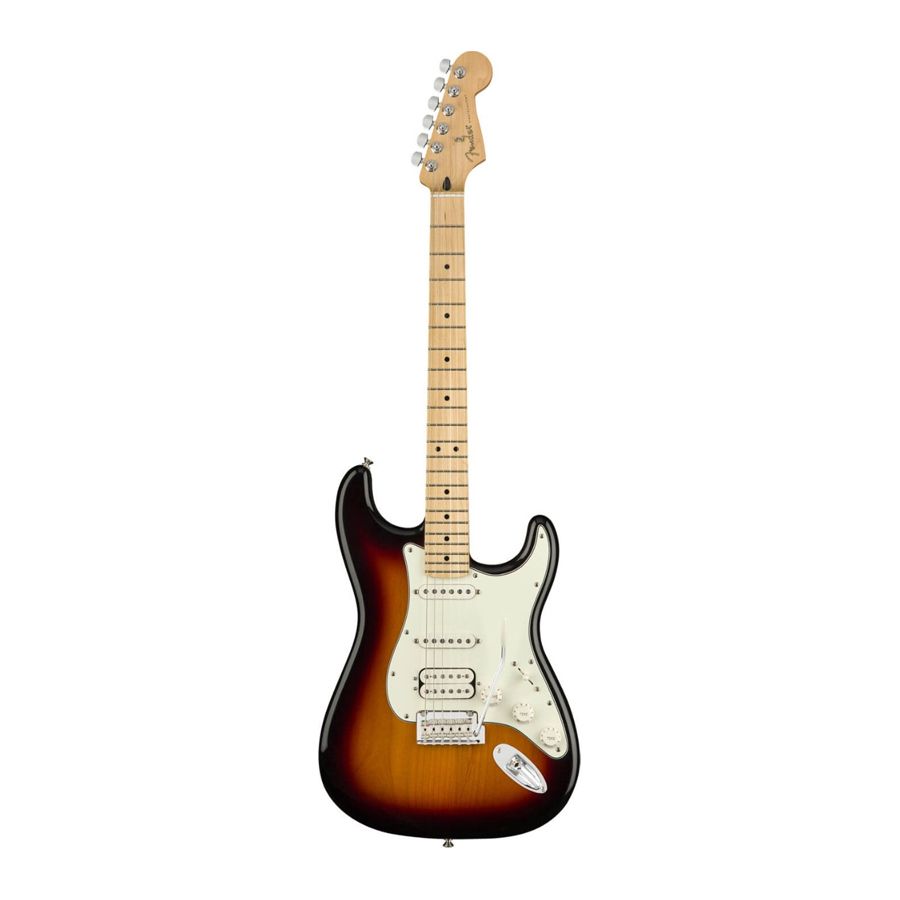

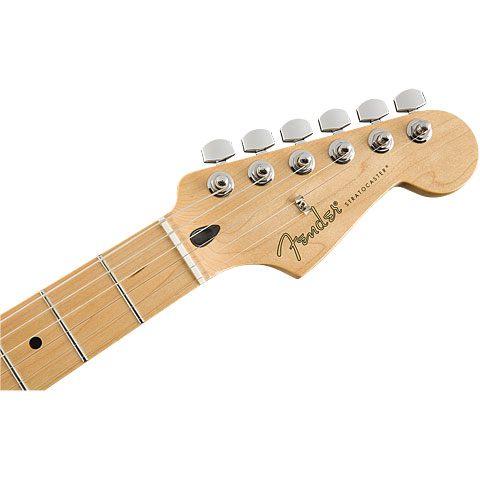

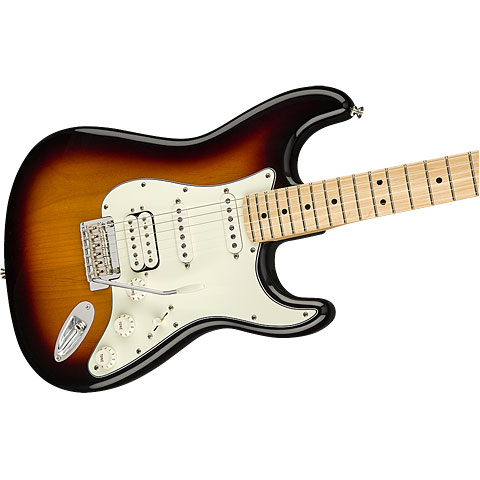

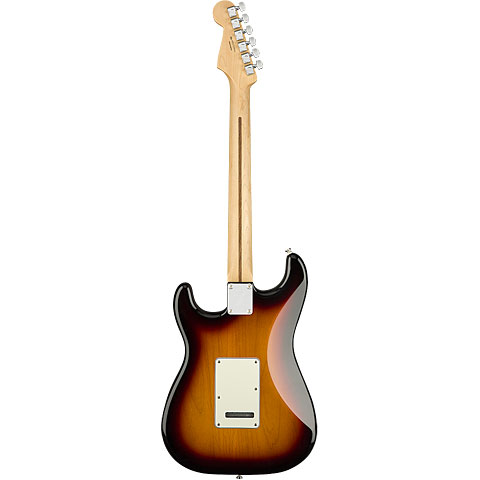

Fender Player Stratocaster HSS MN 3TS

Product information
