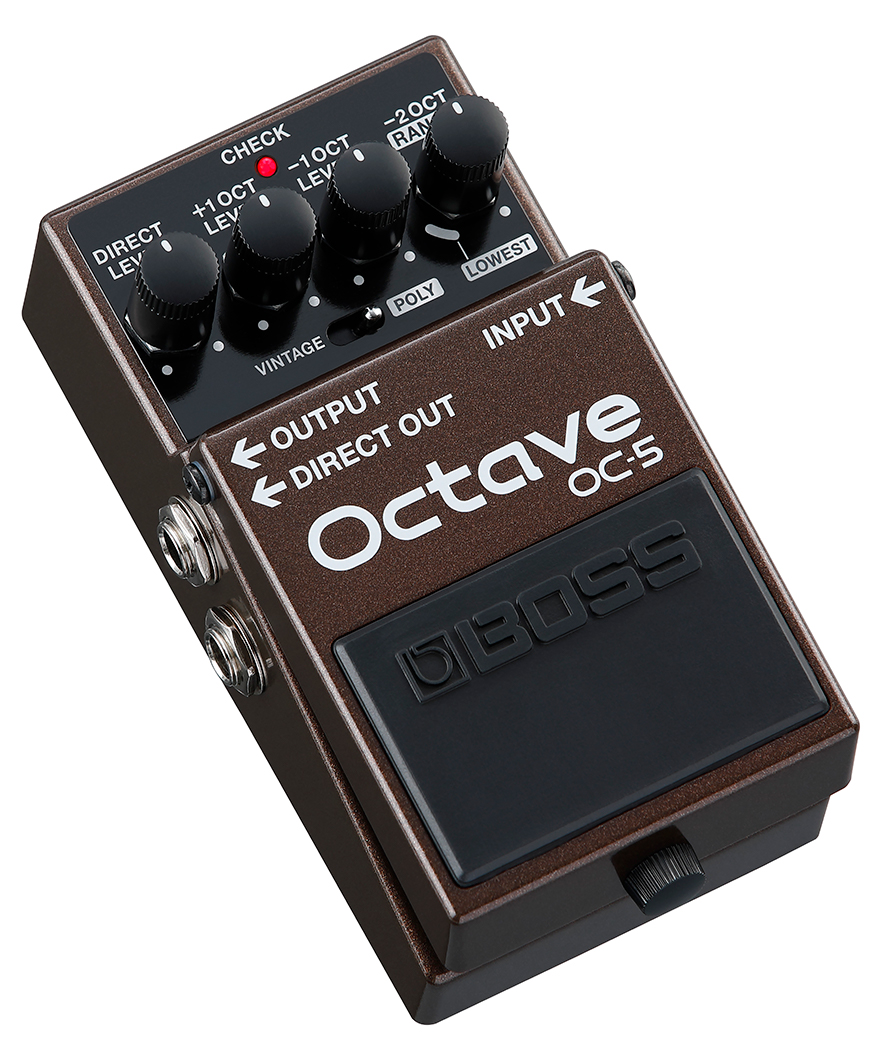

BOSS OC-5 Octave

Specifications

• Nominal Input Level: -20 dBu
• Input Impedance: 1 M ohm
• Nominal Output Level: -20 dBu
• Output Impedance: 1 k ohm
• Recommended Load Impedance: 10 k ohms or greater
• Bypass: Buffered bypass

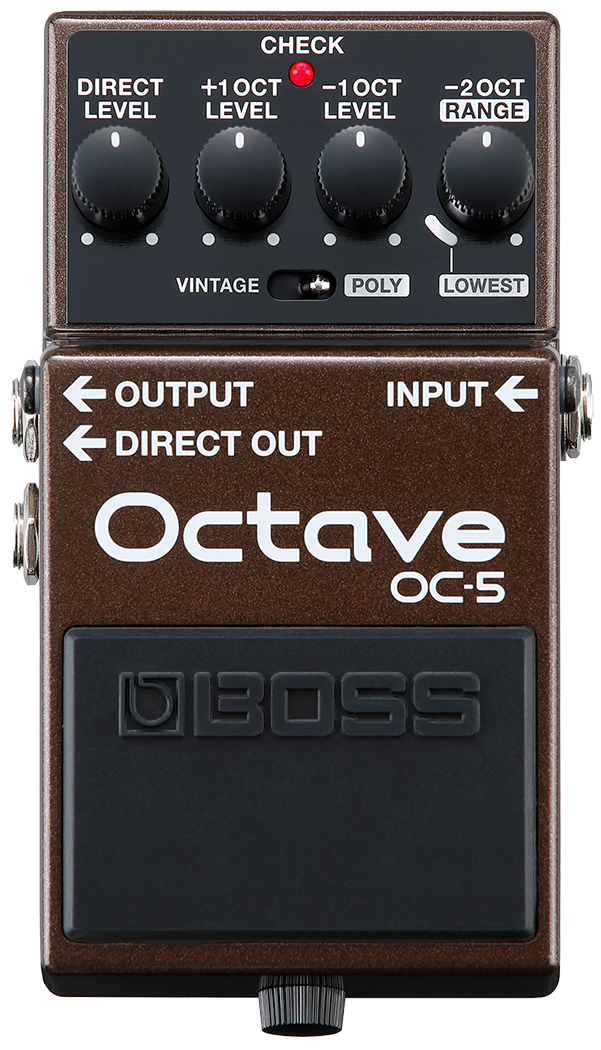

Controls

• Pedal Switch
• GUITAR/BASS Switch
• VINTAGE/POLY Switch
• DIRECT LEVEL Knob
• +1 OCT Knob
• -1 OCT Knob
• -2 OCT/RANGE Knob

Indicator

• CHECK Indicator: Serves as a battery check indicator.

Connectors

• INPUT Jack: 1/4-inch phone type
• OUTPUT Jack: 1/4-inch phone type
• DIRECT OUT Jack: 1/4-inch phone type

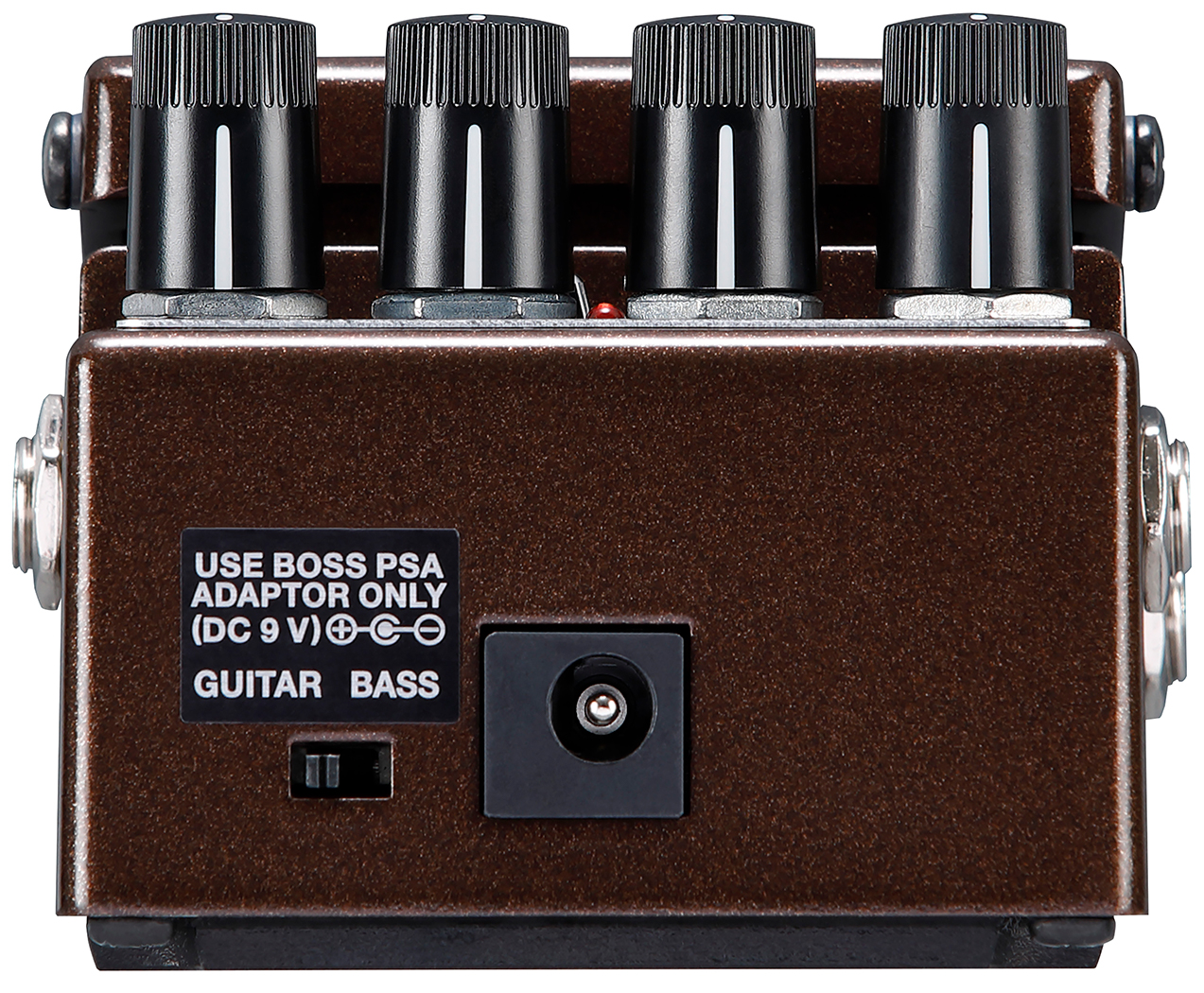

• DC IN Jack

Power Supply

• Battery: Alkaline battery (9V, 6LR61 or 6LF22)
• AC Adaptor: PSA series (sold separately)

Current Draw

• 60 mA

Expected Battery Life under Continuous Use

• Alkaline: Approx. 5 hours
  (These figures may vary depending on actual conditions of use.)

Accessories

• Leaflet (“USING THE UNIT SAFELY,” “IMPORTANT NOTES,” and “Information”)
• Battery: Alkaline battery (9V, 6LR61)

Options (Sold Separately)

• AC Adaptor: PSA series

Size and Weight

• Width: 73 mm (2-7/8 inches)
• Depth: 129 mm (5-1/8 inches)
• Height: 59 mm (2-3/8 inches)
• Weight (Including Battery): 440 g (1 lb)
