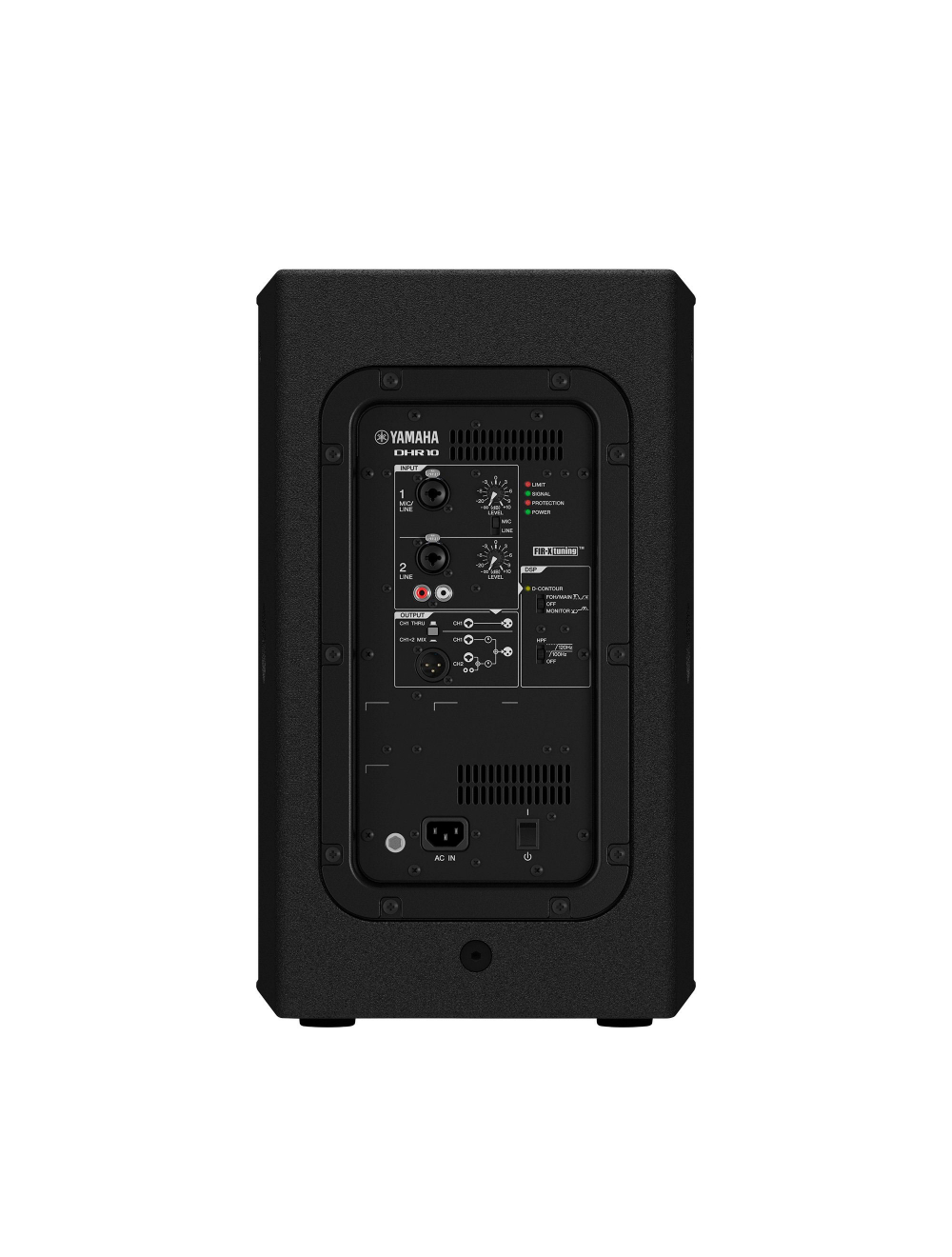

| DHR10 |
| Speaker type |
2-way, Bi-amped Powered Speaker, Bass-reflex |
| Frequency range (-10dB) |
52 Hz – 20 kHz |
| Coverage area |
H90ﾟ x V60ﾟ (Rotatable) |
| Crossover |
1.9 kHz: FIR-X tuning™ (linear phase FIR filter) |
| Maximum Output Level (Measured peak, IEC noise@1m) |
128 dB SPL |
| Components |
LF |
Diameter: 10″ cone, Voice Coil: 2″, Magnet: Ferrite |
| HF |
Diaphragm: 1.4″, Type: 1″ throat compression driver, Magnet: Ferrite |
| Amplifier class |
Class-D |
| Power rating |
Dynamic |
700 W (LF: 500 W, HF: 200 W) *1 |
| Continuous |
325 W (LF: 260 W, HF: 65 W) |
| Cooling |
Fan cooling, 4 speeds |
| Power consumption |
60 W (1/8power), 18 W (Idle) |
| Power requirements |
100 V, 100-120 V, 220-240 V, 110/127/220 V (Brazil), 50/60 Hz |
| A/D D/A Converters |
24 bit 48 kHz Sampling |
| Processors |
HPF: OFF, 100 Hz, 120 Hz, 24 dB/Oct.; D-CONTOUR: FOH/MAIN, MONITOR, OFF |
| I/O connectors |
INPUT1: Combo x1, INPUT2: Combo x 1 + RCA pin x 2 (Unbalanced), OUTPUT: XLR3-32 x 1 (CH1 Parallel Through or CH1+CH2 Mix) |
| Cabinet material |
Plywood |
| Finish |
Durable Polyurea Painting, Black |
| Handle |
Top x1 |
| Pole socket |
Φ35 mm x1 (Bottom) |
| Rigging |
Top x 2, Rear x 1 (Fit for M10 x 30 – 50 mm Eyebolts) |
| Floor Monitor Angle |
– |
| Dimensions |
W |
305 mm (12.0″) |
| H |
494 mm (19.5″) (with rubber feet) |
| D |
300 mm (11.8″) |
| Net weight |
15.0 kg (33.1 lbs) |
| Options |
U-bracket: UB-DXRDHR10 |
|
