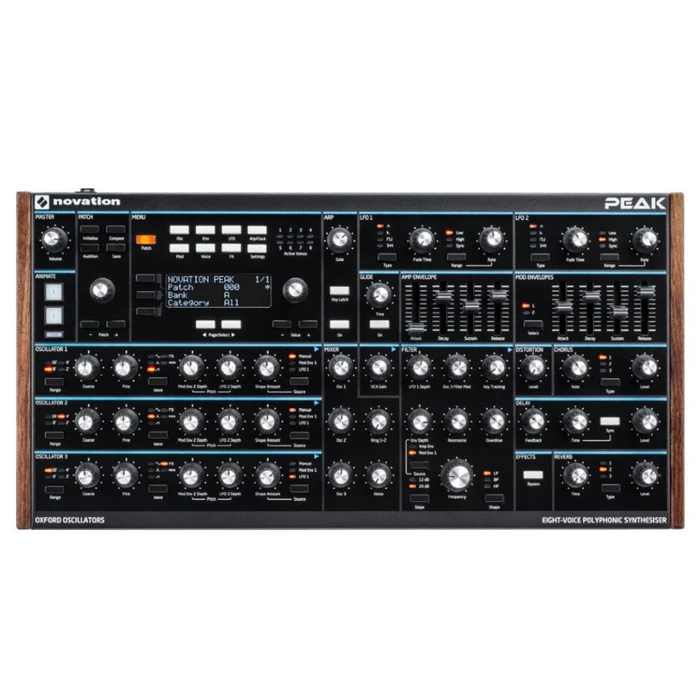

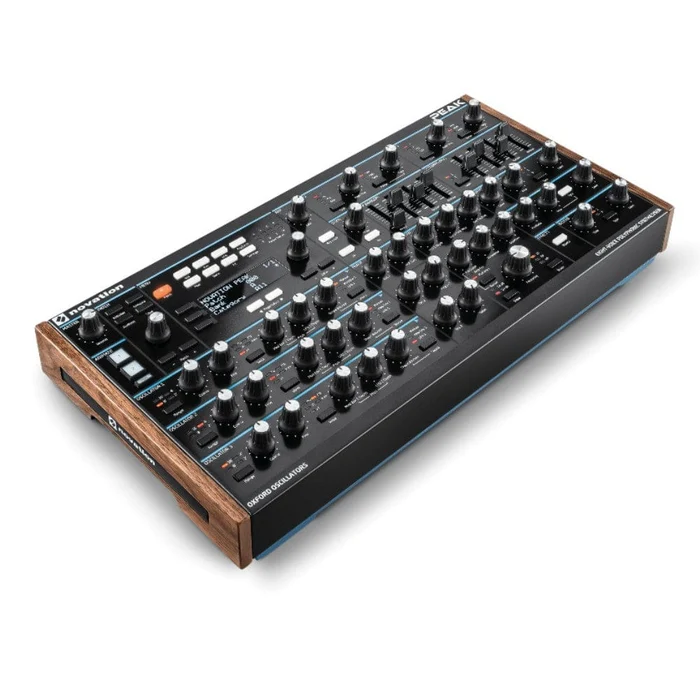

Key Features

• Product type: Desktop polyphonic synthesizer
• Polyphony: 8 voices
• Multitimbrality: Monotimbral
• Oscillators: 3 New Oxford digital oscillators per voice
• Oscillator technology: FPGA-based numerically controlled oscillators
• Waveforms: Sine, triangle, sawtooth and square/pulse
• Wavetables: 60 additional digital wavetables
• User wavetables: 10 user-configurable wavetable slots
• Noise generator: 1 per voice
• Ring modulator: Oscillator 1 and Oscillator 2
• Filter: Analogue state-variable filter per voice
• Filter modes: Low-pass, band-pass and high-pass
• Filter slopes: 12 dB and 24 dB per octave
• Distortion: Analogue distortion at multiple points in the signal path
• LFOs: 4
• Envelopes: 1 amp envelope and 2 modulation envelopes
• Modulation: 16-slot modulation matrix, with two sources per slot
• Effects: Distortion, chorus, delay and reverb
• Arpeggiator: Built-in arpeggiator with 33 patterns
• Performance controls: 2 Animate buttons and a Hold button
• Display: OLED display
• Controls: 42 knobs, 8 sliders, 2 data encoders and dedicated function buttons

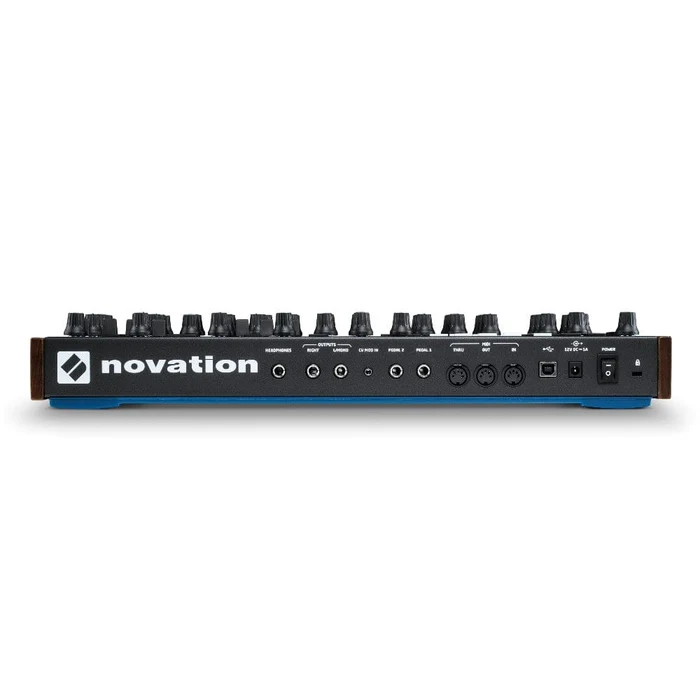

• MIDI: 5-pin MIDI In, Out and Thru
• USB: USB Type-B for MIDI communication
• CV connectivity: 3.5 mm CV modulation input
• Pedal connections: 2 × 1/4-inch TRS pedal sockets
• Audio outputs: Left/Mono and Right 1/4-inch outputs
• Headphone output: 1/4-inch stereo headphone connection
• Power: Internal universal power supply; supplied 12V DC power input
• Dimensions: 233 mm high? No — 233 mm wide? Confirmed manufacturer dimensions are 233 mm wide × 464 mm deep × 70.5 mm high
• Security: Kensington security slot
