MOTU M6

Specifications

• Sample rates
  44.1, 48, 88.2, 96, 176.4, 192 kHz
• Mic/line/guitar
  4 x XLR/TRS “combo jack” mic/line/Hi-Z guitar inputs
  Independent preamp gain, 48V phantom power and monitor switch for each input

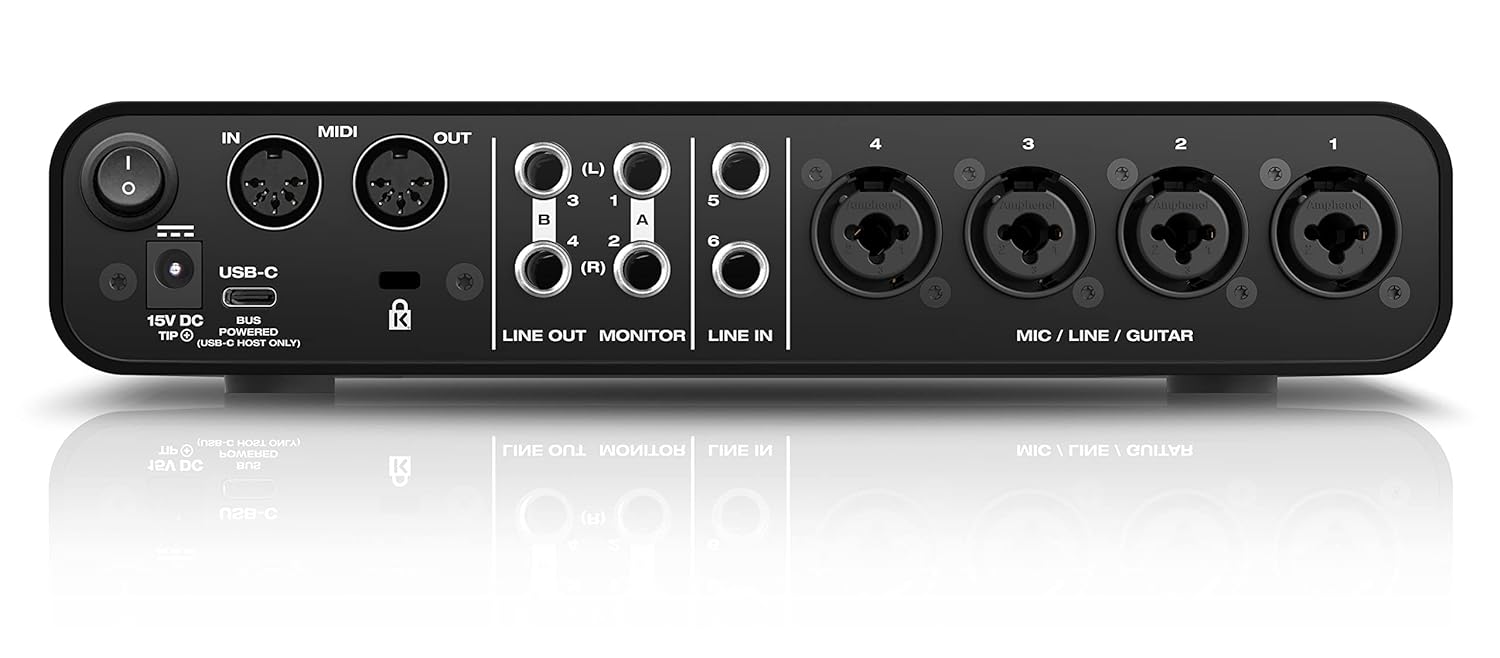

• Analog inputs
  2 x 1/4″ line in
• Analog outputs
  4 x 1/4″ TRS line out (balanced, DC coupled)
  2 x 1/4″ TRS stereo headphone with independent volume
• Computer I/O
  1 x USB-C 2.0 audio class compliant
  Compatible with USB Type A host (*see power below)
  USB C-to-C and C-to-A cables included
• MIDI I/O
  1 x MIDI IN
  1 x MIDI OUT
  16 MIDI channels to/from computer host
• Headphones
  2 x 1/4″ TRS stereo headphone with independent volume
  1 x 3-4 switch for optional monitoring of Line Out 3-4
• Phantom power
  4 x individual +48V

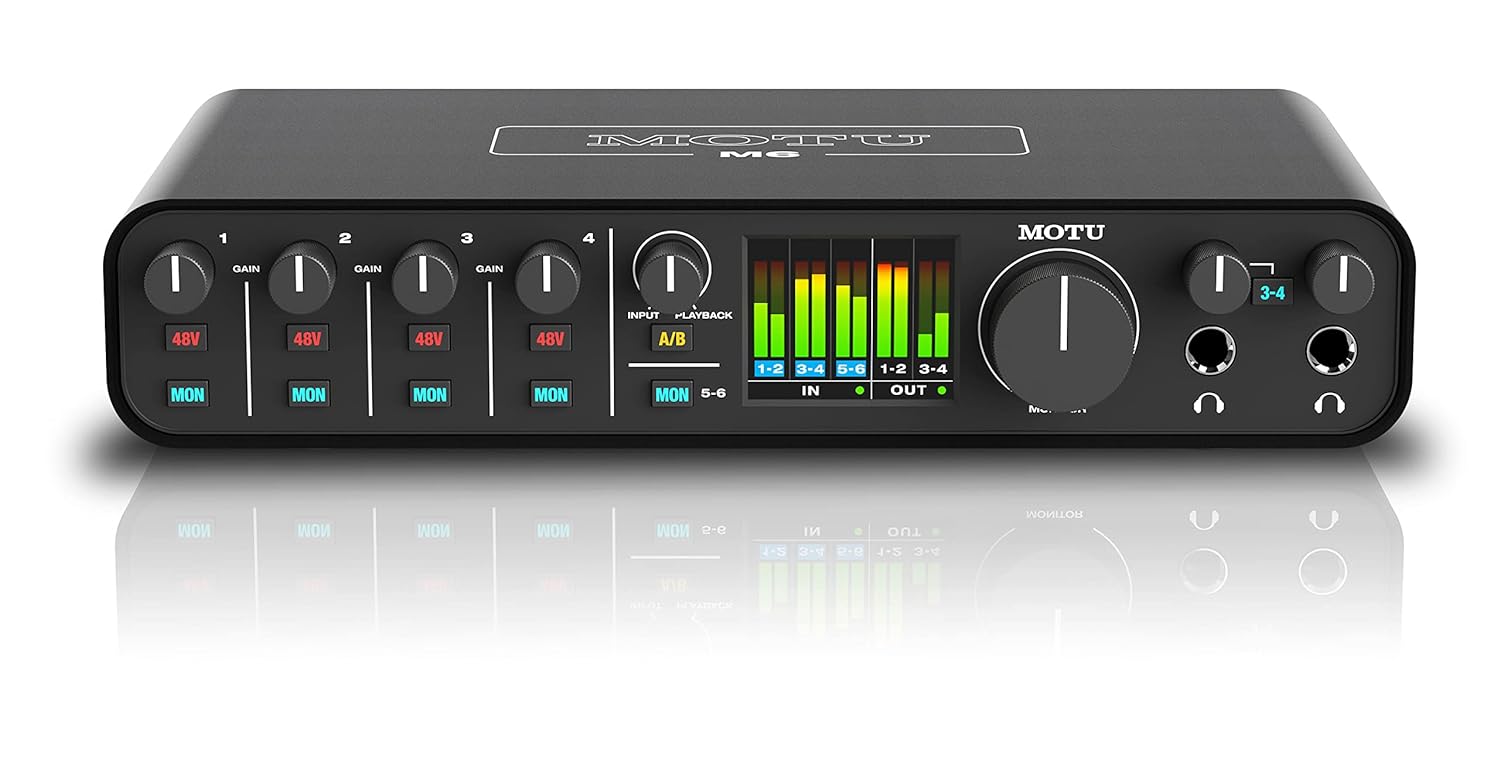

• Front panel
  2 x 1/4″ TRS headphone output
  1 x potentiometer • monitor vol
  2 x potentiometer • phone vol
  1 x potentiometer • input monitor mix
  4 x potentiometer • mic/line/guitar input gain
  11 x switches • (4) 48V, (5) MON, (1) A/B and (1) 3-4
  160 x 120 pixel full-colored LCD with input and output level meters
• Power
  Bus-powered through USB*
  Optional multi-blade international 15V DC power adapter (included)
  *USB bus power available with USB-C hosts only. For other hosts, use the included DC power adapter. For iOS devices with a Lightning port, an Apple Lightning to USB3 Camera Adapter is required (sold separately).
• Dimensions and weight
  (width x depth x height, enclosure only)
  9.21 x 4.75 x 1.8 inches
  23.4 x 12.0 x 4.57 cm
  2.15 lbs / 0.975 kg
