Name: Roland KC-80 3-Ch Mixing Keyboard Amplifier
SKU: 8270
Availability: BackOrder

Roland KC-80 3-Ch Mixing Keyboard Amplifier

Category	Specification
Power	Rated Power Output: 50 WPower Consumption: 50 W
Nominal Input Level (1 kHz)	CH1 (MIC/LINE): -50 to -20 dBuCH2 (LINE): -20 dBuCH3 (LINE): -20 dBuAUX IN (L, R, STEREO): -10 dBu
Nominal Output Level (1 kHz)	LINE OUT: +4 dBuSUB OUT: +4 dBu
Speakers	Woofer: 25 cm (10”) x1Tweeter: x1

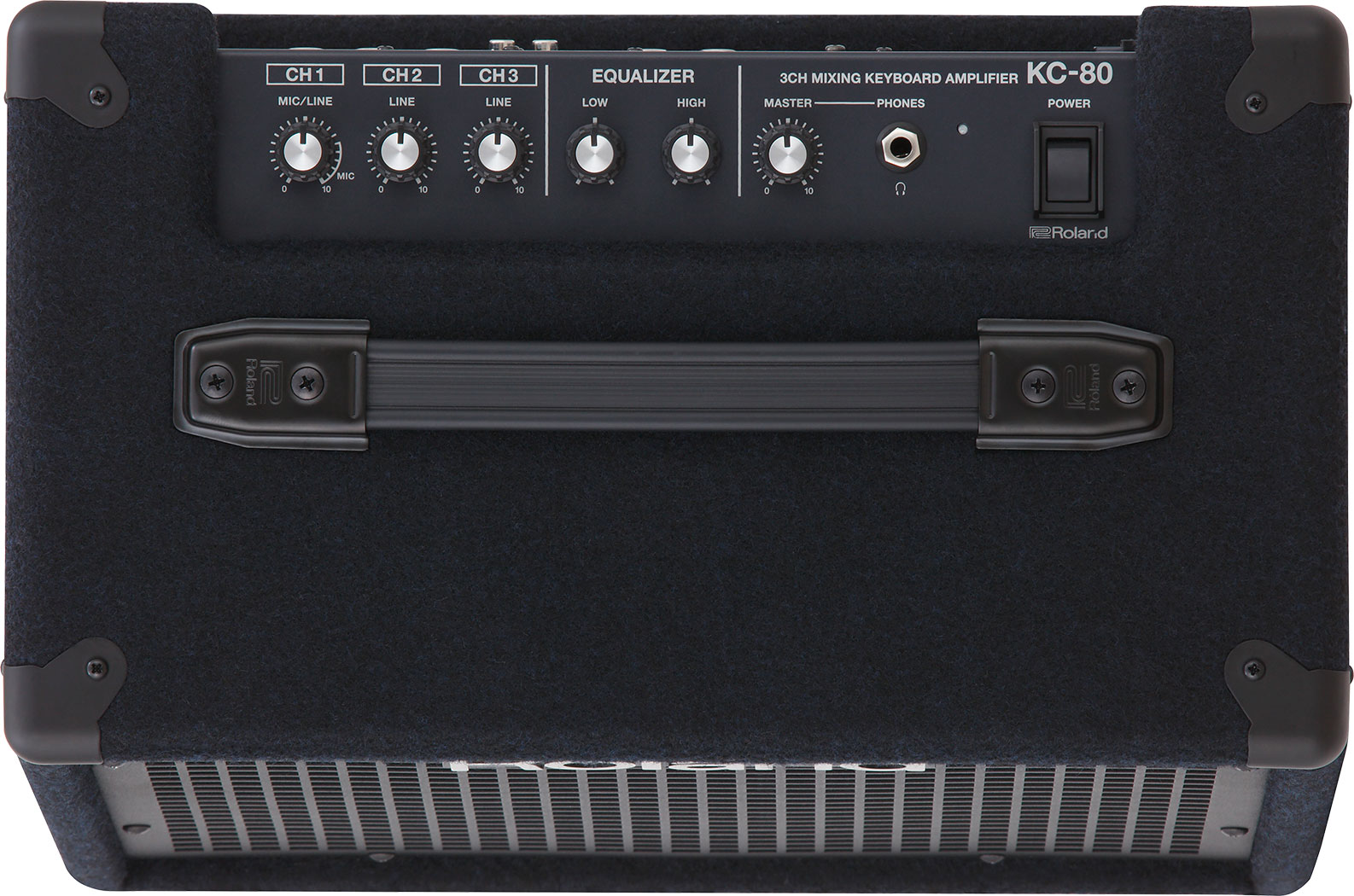

Controls	POWER switchCH1 MIC/LINE knobCH2 LINE knobCH3 LINE knobLOW knobHIGH knobMASTER knob
Indicator	Power Indicator

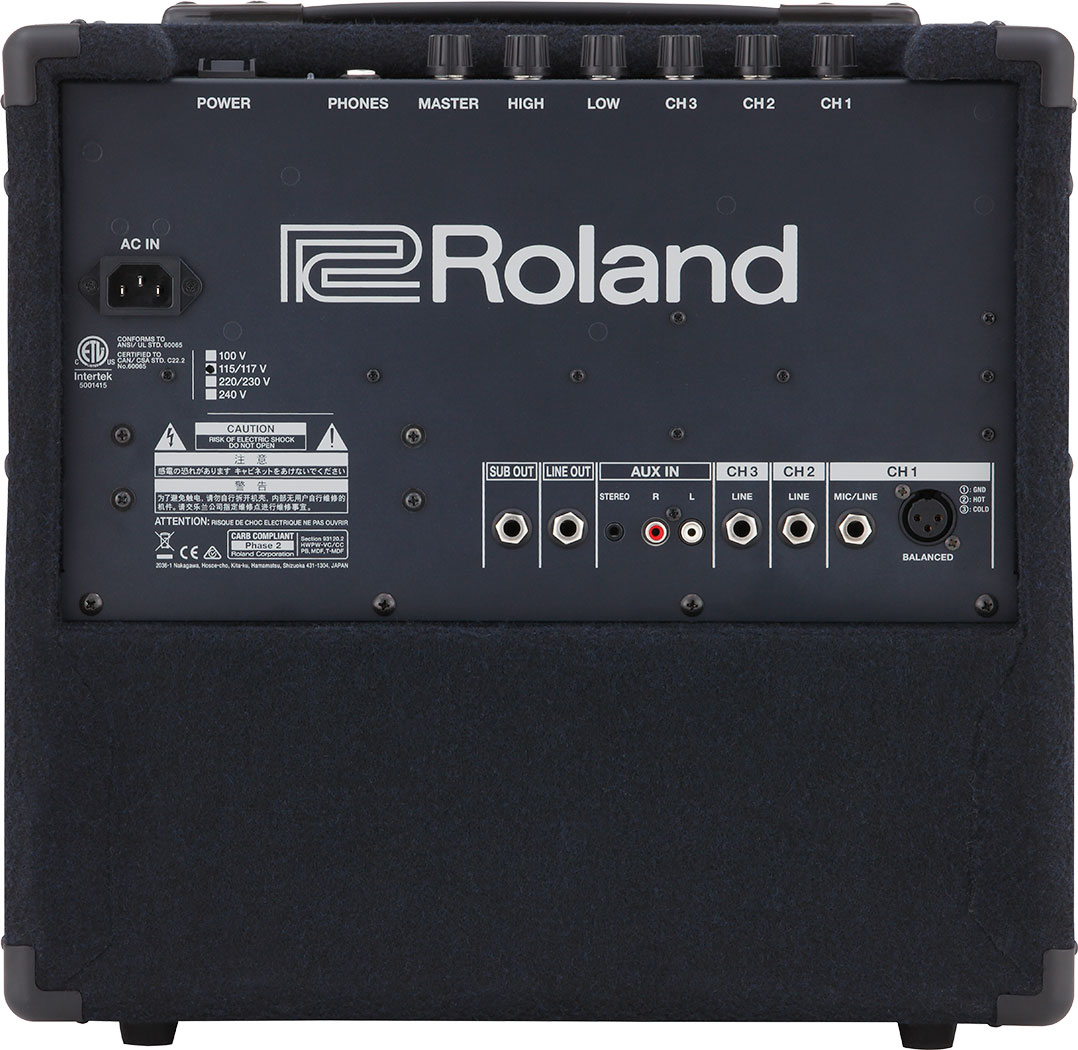

Connectors	CH1: XLR typeCH1 (MIC/LINE): 1/4” phoneCH2 (LINE): 1/4” phoneCH3 (LINE): 1/4” phoneAUX IN (L, R): RCAAUX IN (STEREO): Stereo miniLINE OUT: 1/4” phoneSUB OUT: 1/4” phonePHONES: 1/4” TRS phone (mono output)
Accessory	Owner’s Manual
Optional Accessory	Speaker Stand: ST-A95
Dimensions (W x D x H)	420 x 300 x 410 mm16-9/16” x 11-13/16” x 16-3/16”
Weight	12.5 kg / 27 lbs 9 oz

Available on backorder

Spread the love

WORTH IT EVERY TIME

For over two decades, keyboard players everywhere have relied on Roland’s KC amps for their powerful high-fidelity sound, onboard mixing features, versatile connectivity, and lasting durability. The latest generation carries on the time-honored KC benchmark of quality while offering new enhancements tuned for the needs of today’s working musicians. With a KC amp by your side, you’re in complete control of your stage rig, so you’ll always sound great and play your best. And that’s worth it every time.

The 50-watt KC-80 is a miniature powerhouse with three line input channels, a dedicated aux input, and support for an XLR vocal mic. Compared to the previous-generation KC-60, the power section has been completely redesigned for higher output, better stability, and enhanced bass reproduction. In addition, the 10-inch woofer has been upgraded for improved sound quality. If desired, the low-end performance can be extended by driving a powered subwoofer from the KC-80’s Sub Out jack.

Compact and affordable keyboard amplifier with 50 watts of power
Redesigned power amp and power supply sections provide increased stability and improved bass reproduction
Custom two-way speaker system with newly developed 10-inch woofer and tweeter
Onboard mixing with three 1/4-inch input channels, dedicated auxiliary input with 1/8-inch and RCA jacks, and master EQ
XLR mic input, 1/4-inch line output, headphones output, and sub output
Metal jacks for increased durability

Full-Range Sound for Keyboards and Electronic Musical Instruments

The KC-80 offers full-range audio reproduction in an easy-to-carry portable amp. The cabinet features Roland’s patented twin bass-reflex design, providing extended low-frequency response without distortion. Paired with the newly redesigned power section and updated 10-inch woofer, the KC-80 delivers even better bass performance for amplifying 88-note stage pianos, organs, and synthesizers, plus rhythm machines and other electronic instruments.
Onboard 3+1 Mixing

The KC-80’s three 1/4-inch line input channels support keyboards, drum machines, and various electronic instruments. In addition, there’s an auxiliary channel with 1/8-inch and RCA inputs for connecting smartphones, music players, or other devices. Channel 1 also includes an XLR input, allowing you to plug in a vocal mic for even more versatility.
Versatile Connectivity for Performing, Recording, and Practice

With its easy-access connectivity, the KC-80 integrates into any playing environment. A 1/4-inch line output enables you to interface with PA systems, stage monitors, and recording devices. There’s also a Sub Out jack for connecting to a powered subwoofer, with level conveniently tied to the amp’s master volume for one-touch control. Plugging into the Phones jack mutes the onboard speakers and Sub Out, perfect for private practice sessions and checking sounds on stage with headphones.

Reviews

There are no reviews yet.

Be the first to review “Roland KC-80 3-Ch Mixing Keyboard Amplifier”

You must be logged in to post a review.

MIXER Section
MONO inputs	2 x MIC/LINE IN (XLR-F + 1.4″ JACK)
STEREO input	1 x LINE IN (MINI-JACK)
Outputs	LINE OUT (XLR-M)
Main EQ	SUB LEVEL (SPEECH-MUSIC-BOOST)
Internal Effect	ECHO-DELAY
MULTIMEDIA Section
Player Type	USB / SD / WIRELESS AUDIO player with TWS
Compatible File Formats	MP3
Control Interface	LCD display, CONTROL buttons
AMPLIFIER Section
Total Peak Power	400 W
Continuous Power	200 W
Amplifier Type	Class D
Power Supply	SMPS
Processing	Analog
LOUDSPEAKER Section
System Type	Compact powered column system with subwoofer
High Frequency Device	4 x 2.5″ (66mm) drivers
Low Frequency Device	8” (200mm) woofer with 1.5” VC
Angular Coverage	90° H x 60° V
Frequency Response	50Hz – 18kHz
Maximum SPL Output	108 dB
GENERAL Specifications
Construction	Polypropylene
Cabinet Colour	Black
Column system	3-pcs with fast-linking system and integral power connections
Handles	1 x subwoofer top
Accessories	Padded bag for 3-pcs column
Dimensions (WxHxD)	SUB: 318x 400 x484.5 mm COLUMN (each piece): 520 X 84 X 97.5 mm
Weight	14 Kg (complete system)
Power Supply	100 V-240 V~ 50/60 Hz
Rated Power Consumption	100 W
