Key Features

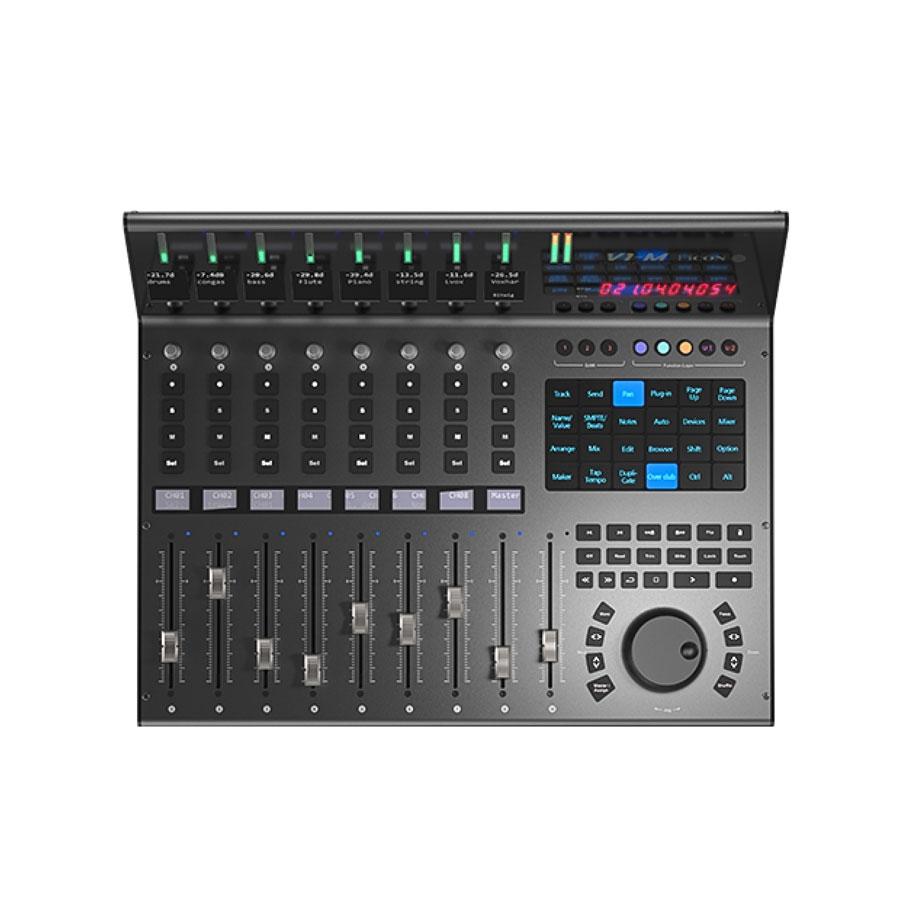

• Product type: USB DAW controller and control surface
• Model: V1-M
• Motorized faders: 9 touch-sensitive faders
• Fader resolution: 12-bit
• Touchscreen: 7-inch digital touchscreen
• Touchscreen layout: 24 control panels with five colour-coded layers
• Potential touchscreen functions: Up to 120 displayable and actionable functions
• Channel displays: Individual 1.14-inch TFT displays, with information dependent on DAW support
• Additional display: 2-inch TFT display for channel names, control values and channel colours, depending on the DAW
• Meter bridge: Integrated LED level meters
• Jog wheel: Large optical encoder jog wheel
• Encoder knobs: 8 dual-function rotary encoders with push-to-enter operation
• Time display: Two-segment LED display for SMPTE timecode or musical position
• Transport controls: 6 illuminated buttons
• Channel controls: Dedicated Mute, Solo and Record buttons
• Automation controls: Read, Write, Touch, Latch, Trim and Off functions, depending on DAW support
• DAW selection: Dedicated controls for switching between up to three compatible DAWs
• Control protocols: Mackie Control Universal and HUI
• Configuration software: iMAP
• Computer connection: USB-C
• Footswitch inputs: 2 × 1/4-inch inputs
• Expansion: Compatible with optional V1-X DAW Control Expanders
• Power supply: 12V DC, 2.5A
• Current consumption: 2.5A or less
• Dimensions: 485 × 384.5 × 178 mm
• Weight: 5.6 kg
• Construction: Metal casing with Kensington security slot
