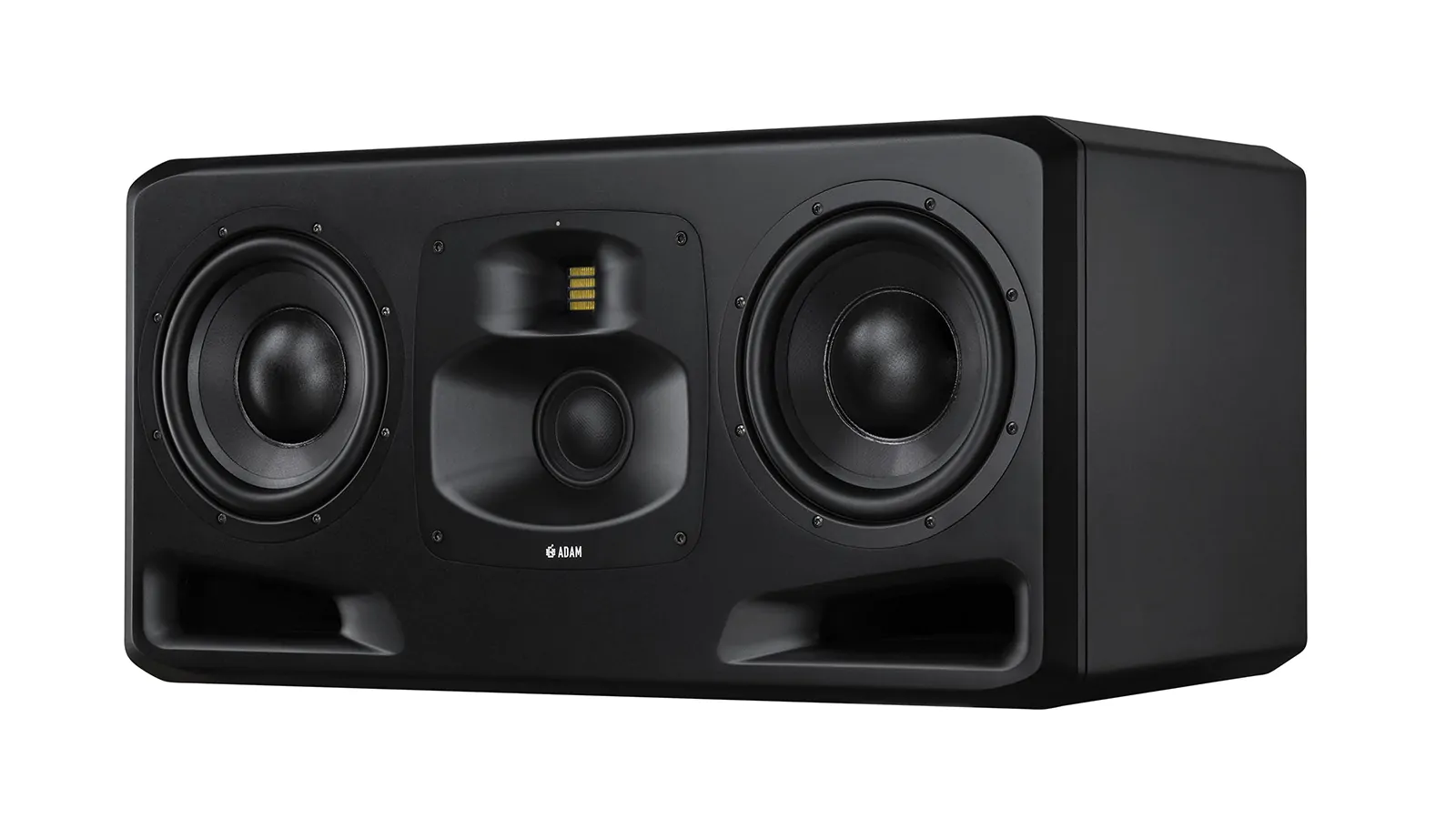

ADAM Audio S5H 3-Way Main Studio Monitor – Single

Key Features

• ADAM Audio S5H professional main studio monitor
• Single-unit configuration
• 3-way active design
• Horizontal orientation
• 2 × 10-inch / 223 mm ELE woofers
• HexaCone woofer cone material
• 3-inch / 76 mm woofer voice coils
• 4-inch / 100 mm DCH midrange driver
• Carbon Composite midrange diaphragm
• 2.4-inch / 60 mm midrange voice coil
• MPS midrange waveguide
• S-ART folded-ribbon tweeter
• HPS tweeter waveguide
• 700 W RMS PWM woofer amplification
• 300 W RMS PWM midrange amplification
• 100 W RMS PWM tweeter amplification
• 1,100 W total RMS amplification
• Frequency response: 22 Hz–50 kHz (-20 dB)
• Crossover frequencies: 250 Hz and 3 kHz
• THD above 100 Hz: ≤0.3%
• Maximum SPL: ≥131 dB per pair at 1 m

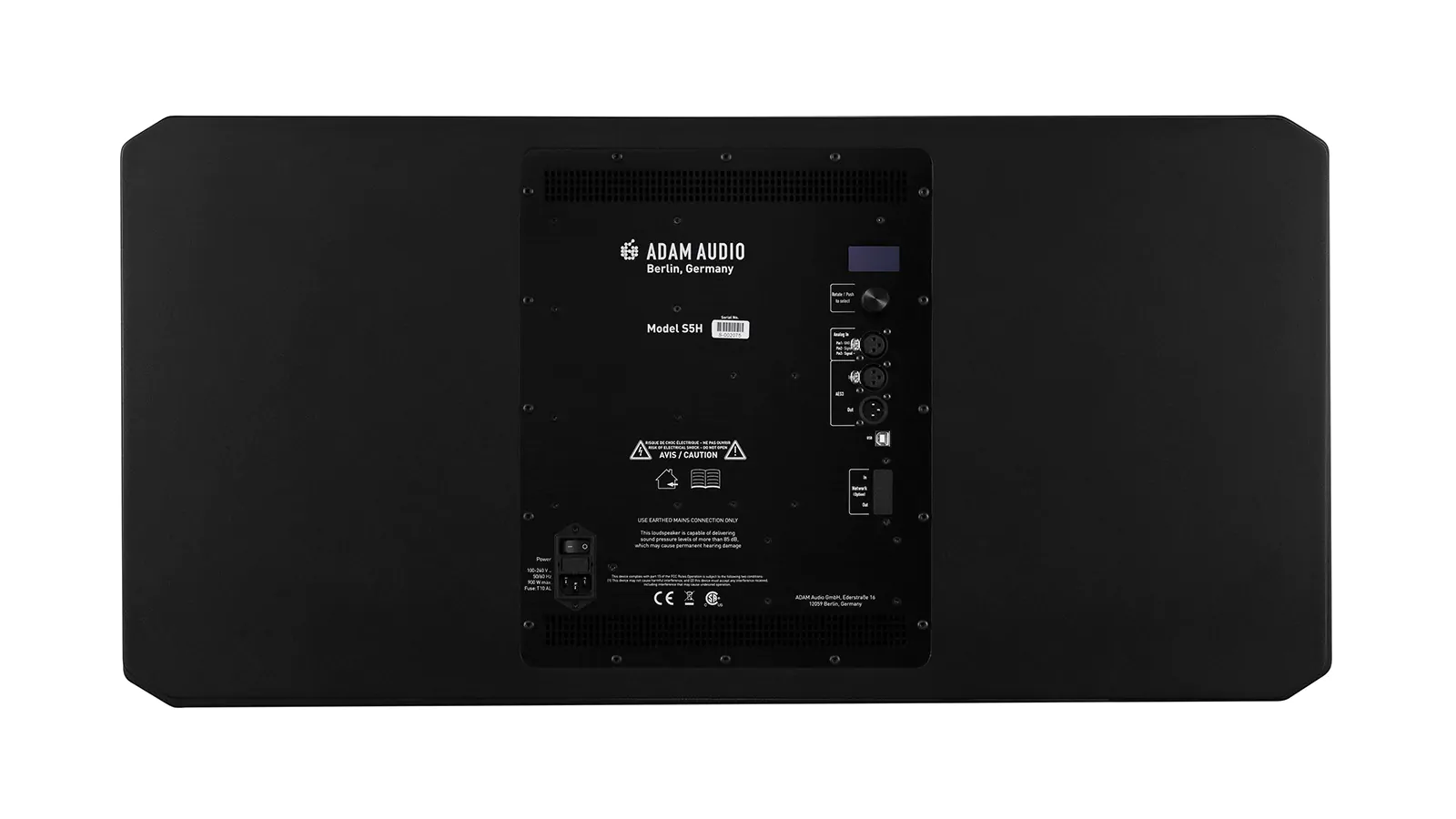

• Balanced XLR analogue input
• AES3 digital input
• 48 kΩ input impedance
• Maximum input level: +24 dBu
• Six parametric EQs
• One high-shelf room compensation EQ
• One low-shelf room compensation EQ
• Five preset memories
• Adjustable input sensitivity
• 0–5 ms delay
• Custom DSP engine
• USB connection for software updates and computer DSP control
• Dimensions: 430 × 885 × 500 mm
• Weight: 72.6 kg
